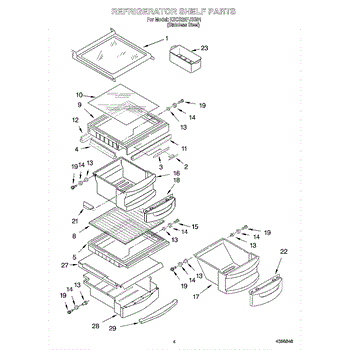

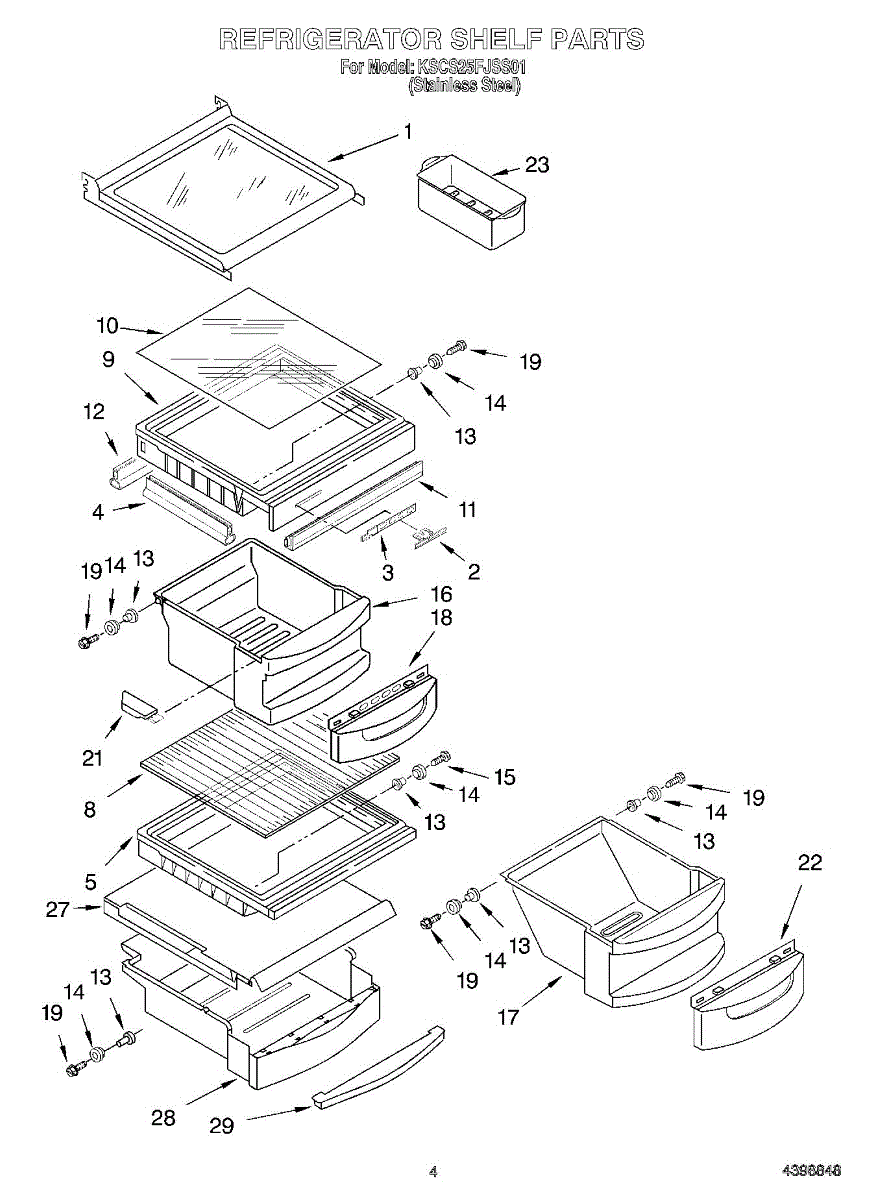

Parts for Kitchenaid KSCS25FJSS01: 03 - Refrigerator Shelf Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

Color: clear. Measures about 16 inches wide by 14 inches deep.

Color: clear. Measures about 16 inches wide by 14 inches deep.

Comes with two rollers and two eyelets

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

This refrigerator crisper drawer replaces a damaged or missing produce bin. It restores smooth-sliding, dedicated storage for fruits and vegetables to keep the crisper area organized and easy to use.

• Holds and organizes produce in the refrigerator's crisper compartment; slides on the side rails beneath the crisper cover
• Replace when cracked, warped, or missing
• Common symptoms: broken corners, drawer binds or falls off tracks, or produce can't be stored properly
• Restores proper fit and smooth operation of the crisper section

• Remove food, pull the old drawer out to the stop, lift slightly to clear the rails, and remove
• Align the new drawer on the rails and slide straight in until fully seated
• Let cold plastic warm to room temperature before installation; do not force into place
• If removing shelves or covers for access, handle glass carefully; unplug the appliance if you'll be working near electrical components

This refrigerator crisper drawer replaces a damaged or missing produce bin. It restores smooth-sliding, dedicated storage for fruits and vegetables to keep the crisper area organized and easy to use.

• Holds and organizes produce in the refrigerator's crisper compartment; slides on the side rails beneath the crisper cover
• Replace when cracked, warped, or missing
• Common symptoms: broken corners, drawer binds or falls off tracks, or produce can't be stored properly
• Restores proper fit and smooth operation of the crisper section

• Remove food, pull the old drawer out to the stop, lift slightly to clear the rails, and remove
• Align the new drawer on the rails and slide straight in until fully seated
• Let cold plastic warm to room temperature before installation; do not force into place
• If removing shelves or covers for access, handle glass carefully; unplug the appliance if you'll be working near electrical components

This is a replacement 10-16-1 screw used to fasten appliance panels and components. It restores a secure fit for loose or rattling parts so panels and assemblies stay properly aligned during use. What it does:

• Secures panels, brackets, or small appliance components in place
• Helps stop rattling, vibration noise, or loose-fitting parts
• Restores proper alignment for doors, access panels, or internal assemblies
• Matches OEM thread and length for correct fit when replacing worn or missing screws

• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw to ensure proper thread engagement before tightening
• Do not overtighten; snug the screw until the part is secure to avoid damage
• Disconnect power to the appliance before accessing internal components

This is the left side cap. For right side use 2174259.

This is the right side cap. For left side use 2174258.

Color: clear. It measures about 6 inches wide by 3-1/2 inches high by 15 inches deep.

This is the meat pan cover assembly used above the deli/meat drawer. It provides a stable shelf surface and supports the drawer below, helping organize items and contain spills to keep the fresh food section cleaner.

• Supports the deli/meat drawer and serves as the shelf surface above it
• Helps contain minor spills and prevents drips to lower compartments
• Common signs it may need replacement: cracked or sagging cover, broken supports, or the deli drawer not sliding/aligning properly

• Unplug the refrigerator before starting
• Remove the deli/meat drawer and any items resting on the cover
• Lift out the damaged cover assembly and set the new assembly in place
• Ensure the cover is fully seated on its supports, then reinstall the drawer
