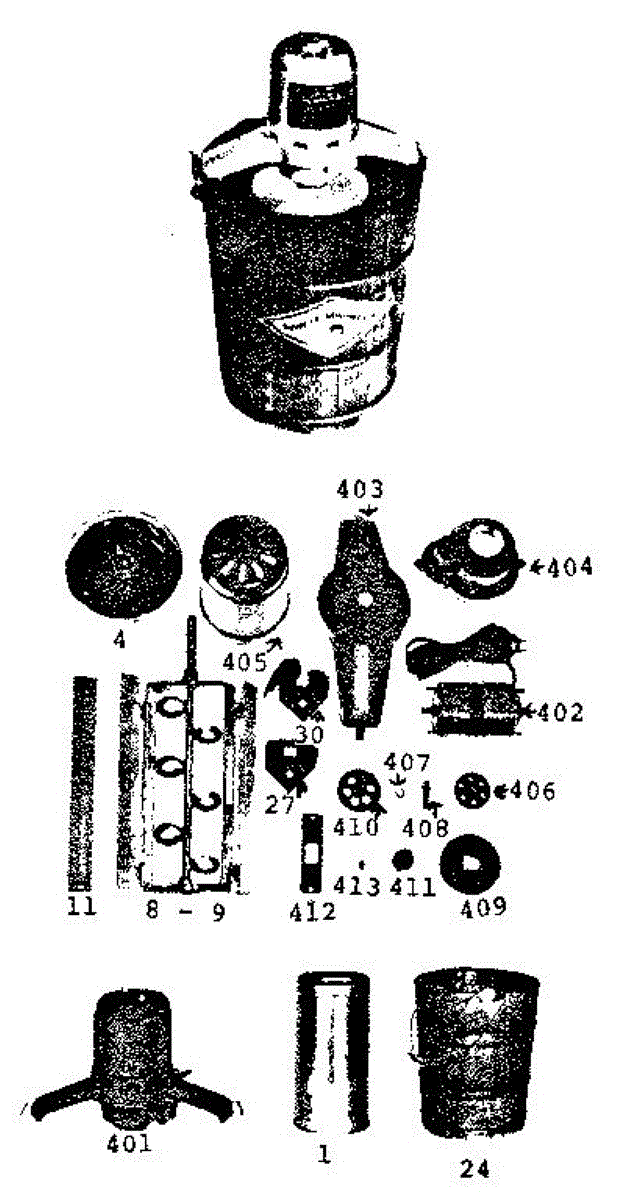

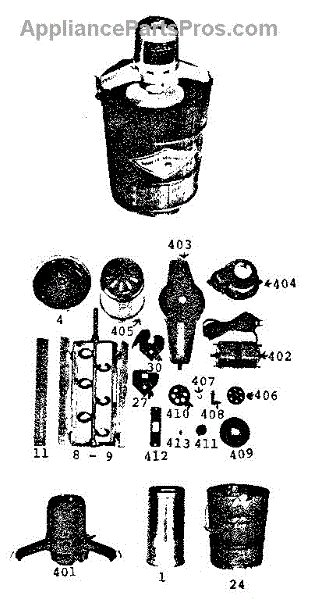

Parts for Kenmore 4001909: Replacement Parts

This part has been discontinued by the manufacturer and is no longer available.

This terminal splice is an electrical connector that joins or extends appliance wiring, providing a secure, serviceable connection for 10–14 gauge conductors. It helps restore reliable electrical contact and reduce intermittent power issues. What it does

• Creates a solid, low-resistance connection between two 10–14 AWG wires
• Used where a quick, serviceable splice or extension is needed on control or power circuits
• Helps address symptoms such as intermittent power, devices not running, or visible loose wiring
• Provides a durable termination that resists vibration-related loosening in laundry equipment

• Always disconnect power to the appliance before inspecting or replacing electrical connectors
• Trim damaged wire ends, insert conductor fully, and crimp firmly with the correct crimp tool or solder per OEM practice
• Protect the splice from moisture with approved insulating materials or heat-shrink tubing where applicable
• If corrosion or heat damage is present on surrounding wiring, inspect and replace affected wiring as needed

This insulated 0.187 in male quick-disconnect terminal provides a safe, crevice-free connection for appliance wiring, simplifying service and restoring secure electrical contact on harnesses and components. It's sized for 22–18 AWG conductors. What it does

• Provides a secure, removable male blade connection for appliance circuits that use 0.187 in (187) quick-disconnect tabs
• Insulation protects the crimp and reduces accidental shorts or exposed conductors
• Common fix for loose, intermittent, or damaged wire-to-component connections
• Compatible with matching 0.187 in female quick-disconnect terminals for reliable mating

• One insulated 0.187 in male quick-disconnect terminal (sized for 22–18 AWG)

• Crimp onto stripped conductor using the correct insulated-terminals crimp tool for a solid, code-compliant connection
• Disconnect power before servicing electrical components and follow all safety precautions
• Inspect mating female terminal and tab for damage; replace if corroded or deformed
