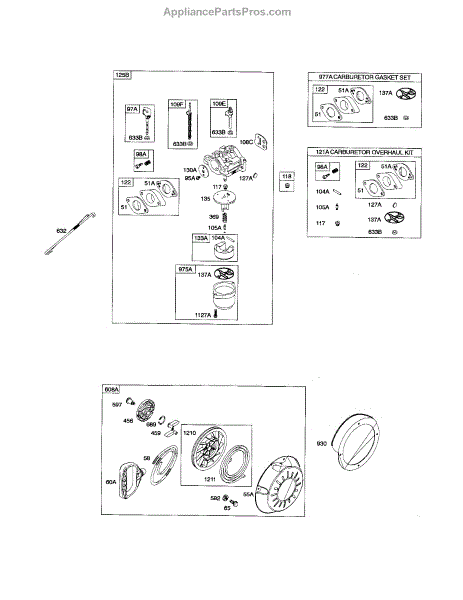

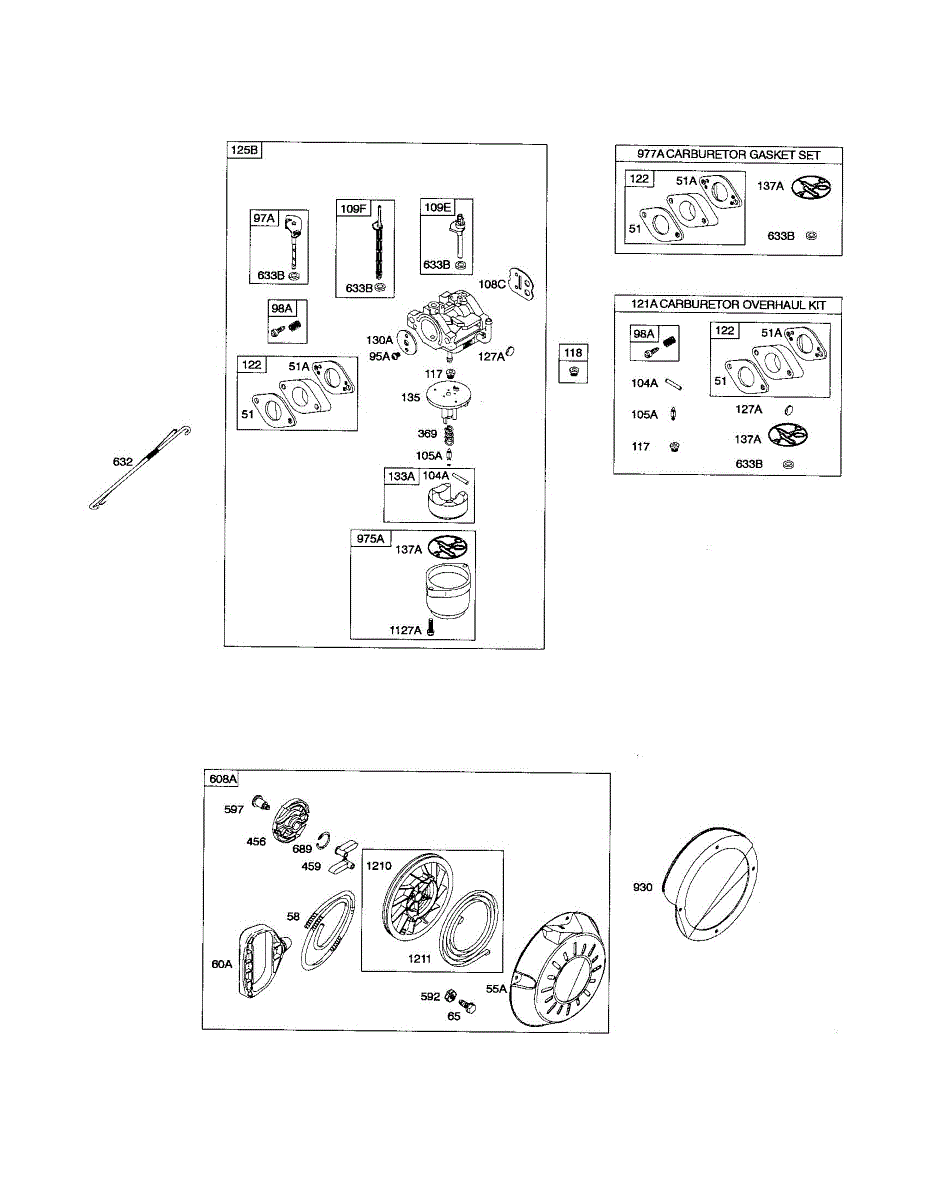

Parts for Briggs & Stratton 20B400 (0017-0698): Carburetor / Rewind Starter Parts

This oil seal is a genuine OEM replacement part designed for use on a wide variety of small gas-powered appliance engines. Although small, an oil seal is an important part of the oil cylinder assembly as it prevents oil from leaking into other parts of the engine. If oil begins to leak into the engine, it can corrode other parts or even pose a fire hazard. Therefore, it's important that the oil cylinder is tightly sealed to prevent any damage to the engine. Seals can wear out over time, especially if exposed to heat. Heat will cause the seal to shrink, effectively unsealing the oil cylinder. Before making this repair, be sure to drain the oil cylinder of any oil and be prepared for an involved replacement process. This part is compatible with Toro, Murray, and Briggs & Stratton appliances and is sourced from the original manufacturer. It ship individually of other hardware.

This is a crankcase gasket that is used in lawn and garden equipment. It is responsible for creating an airtight seal between the cylinder assembly and the crankcase. The part is made of durable composite material, but over time it can deteriorate or break. If this happens, the other components will no longer have the appropriate seal and the tool will not work correctly. Replacing the crankcase gasket requires putting the equipment on a stable surface and disconnecting the spark plug wire. The equipment will need to be disassembled before turning the focus to the engine. Disassemble the motor to gain access to the crankcase gasket and any other damaged component inside. The replacement process will require the use of a pair of pliers, a wrench set, and a socket set. Remove the old crankcase gasket and place the new one in the same location. Reassemble all the parts to use the tool in the future.This crankcase gasket is sold as an individual part. It is an authentic OEM replacement part sourced directly from the manufacturer. This part is compatible with lawn mowers, snowblowers, and wood chippers manufactured by Simplicity, Cub Cadet, and Briggs & Stratton.

This screw is a genuine Midwest Engine part, sold individually. This screw can be used as a replacement part for a variety of small engine outdoor appliances including lawn mowers, snowblowers, and wood chippers. The purpose of a screw in such outdoor appliances is to provide a secure fastening for two or more components to one another through the piercing of the screw into the components and the rotation of the screw so that its placement is stable.The screw of a small engine outdoor appliance is a small component that can be easily lost or misplaced. If the screw is stripped or otherwise damaged, it should be removed and replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement. This is an OEM part sourced directly from the manufacturer, and it is sold individually. This screw is compatible with the following outdoor appliance brands: Midwest Engine, Briggs & Stratton, Toro, Craftsman, Cub Cadet, Murray, Lawn Boy, MTD, and Simplicity.

The oil drain plug plays an important role in lawn and garden machines, although most only realize how important it is when it is not working properly. The plug fits into the oil drain at the bottom of the motor. It is removed to allow the oil to be drained from the motor when changing the oil. The durable oil drain plug may need to be replaced if it is no longer working properly. There could be leaks that allow the oil to escape from the motor, which would indicate it needs to be replaced. If the plug is lost, it will need to be replaced, as well. The genuine OEM replacement oil drain plug is sold individually. It is used for lawn mowers, snowblowers, tillers, leaf blowers, pressure washers, chainsaws, edgers, log splitters, wood chippers, heat pumps, generators, and other small engines. Compatible brands include Briggs & Stratton, Craftsman, Kenmore, Toro, Cub Cadet, Homelite, Murray, Lawn-Boy, Snapper, and Simplicity.

This is a genuine replacement oil fill cap that is found on many lawn and garden engines. The oil fill cap is responsible for securing the oil dipstick and fill tube. This small plastic plug screws into the oil fill tube with plastic threads and secures the oil, keeping it from leaking and providing the appropriate engine pressure. Over time, this small plastic piece can become worn, corroded, damaged, or even lost, which will require a full replacement. Without an oil fill cap, the pressure cannot be maintained in the engine and the oil could spill out of the machine. This genuine OEM oil fill cap is manufactured by Briggs & Stratton to exact standards. It is compatible with engines and equipment from this brand, as well as those from Toro, Snapper, and Vanguard. The oil fill cap is sold as an individual part and does not include the dipstick or any other parts and accessories. It is a good idea to inspect caps and other elements when performing maintenance to ensure proper operation. When replacing the filler cap, no tools are required, but the engine should be cool before doing any kind of work.

The flywheel key is the component on outdoor equipment that keeps the flywheel connected to the crankshaft. Over time, this key may become damaged or broken, particularly if the engine experiences a forceful stop, like hitting a large stationary object. If the flywheel key breaks, the engine will not start. A slightly damaged flywheel key is noticeable through symptoms like misfiring, backfiring, or having no power. If any of these are occurring, the flywheel key should be replaced to prevent complete engine failure.A flywheel puller tool is required for this repair. Make sure the engine is cool before working on the flywheel. Wear safety gear, including gloves and eye protection. Disconnect the spark plug and remove the blower housing. Remove the flywheel mounting nut and set it aside. Take the recoil starter cup off the mower. Use the flywheel puller to remove the flywheel and access the flywheel key. Remove the broken flywheel and replace it with the new flywheel. Reverse the steps to put the mower back together.This flywheel key is made of an aluminum alloy and is sold as an individual part. It is designed for use in lawnmowers, lawn tractors, and other small engines manufactured by Briggs and Stratton, Toro, Lawn-Boy, Simplicity, MTD, and others.

A keeper valve is a small piece of hardware used to help to secure a valve. It is designed for use with pieces of outdoor lawn and garden power equipment that have small engines, a lawn mower, a snowblower, and a wood chipper. It is compatible with products by brands such as Briggs & Stratton, Craftsman, Toro, Cub Cadet, Lawn Boy, MTD, and Simplicity.The keeper valve fits into a groove in the end of the valve stem to secure the valve spring, valve spring retaining washer, and valve stem together. It is only natural that, over time, the keeper valve may wear out from regular exposure to the elements, get damaged, fall out, or become lost. In any of these events, a replacement will become necessary.The replacement or repair process of the keeper valve should be straightforward, but the user replacing the part should always be sure to wear gloves during any assembly, replacement, or installation processes. The user should also refer to the owner's manual of their equipment and any guiding diagrams that clarify the placement location. This keeper valve is an original OEM part sourced directly from the manufacturer, Midwest Engine. It is sold individually.

This is a genuine float needle valve that is designed to be used in select small engines found in lawn tractors. The float needle is located in the carburetor and is responsible for assisting with the intake and outflow of gas through the assembly. As the fuel bowl in the carburetor fills and drains, this needle regulates how much fuel is present to ensure the proper operation of the engine. Over time, the valve can become cracked or get damaged because of repetitive motion and exposure to high heat. This could impact the flow of fuel and the engine performance, or cause the engine to fail completely. This genuine OEM float needle valve is manufactured to exact standards as an identical replacement for select Briggs & Stratton small engines found in lawn tractors. It can also be used with certain models from Toro and Vanguard. It is sold as an individual unit and made of durable plastic. Be sure to drain the fuel from the engine and allow it to cool before doing any repairs. Gloves are also recommended for safety. For those who need additional components, this valve may also be available as part of a compatible carburetor rebuild kit.

This is a carburetor overhaul kit. This kit contains all of the needed components to rebuild the carburetor for lawn and garden equipment engines. A carburetor mixes fuel and air before delivering it to the engine. The diaphragm helps regulate the amount of fuel that is in this mixture. The gaskets create a seal that keeps unnecessary air out so that the engine works properly.A carburetor overhaul kit is needed to fix problems including worn-out gaskets or diaphragms, gas or air leaks, and sluggish performance. Signs that there are carburetor issues include engine roughness when it's at idle, engine vibrations, misfires, or it hesitates under acceleration. Signs that the carburetor diaphragm has gone bad include the engine not starting, cutting off while running, producing excessive smoke, or revving on its own. All of these signs indicate that a carburetor overhaul kit is needed.This part is a genuine Midwest Engine part and is an OEM part sourced directly from the manufacturer and it is sold individually. This kit is compatible with lawn tractors manufactured by Midwest Engine and Briggs & Stratton.

This is a carburetor float that is used in a wide variety of lawn and garden equipment. The carburetor float is used in the engine to close and open the float needle valve. The main responsibility of the carburetor float is to open up to allow fuel into the carburetor when drained and to shut off the flow of fuel if the bowl is filled. If the float isn't working properly, the engine may not idle, the carburetor can flood, and the motor may stall while the tool is in use.Before replacing the carburetor float, put on work gloves and disconnect the spark plug wire. The carburetor will need to be removed from the equipment. The carburetor float and any other malfunctioning parts can be taken out and replaced with new components. While working on the parts, the jets can also be cleaned as a maintenance process.This carburetor float is sold as an individual item. It is an authentic OEM replacement part sourced directly from the manufacturer. The float is designed to be used with lawnmowers, lawn tractors, wood chippers, and snowblowers manufactured by Cub Cadet, Briggs & Stratton, MTD, Toro, and Simplicity.

This part is a float bowl gasket. It is manufactured for use on a variety of outdoor power equipment engines. The float bowl gasket is a flexible plastic component that is fitted into the carburetor and creates a seal that protects the float bowl from debris, dust, and air leakage. A new float bowl gasket may be needed if there is leakage. The floats themselves can be visually inspected for any signs of damage or wear and the float bowl gasket can be replaced if there are signs of either. If the operator can hear gas inside of the floats, then a new float bowl gasket will be needed.This is a genuine OEM part sourced directly from Midwest Engine. It is sold individually. This float bowl gasket is compatible with lawn tractors manufactured by Midwest Engine, Briggs & Stratton, or Toro.

This is a fuel line replacement intended to keep a lawnmower's engine running smoothly. It is long enough to make a couple of fuel lines, just cut the fuel line to the desired length and keep the rest as a spare. When a mower doesn't start easily or performs poorly when running, the fuel delivery system may have a problem and will need repair. The fuel line that supplies gas from the tank to the carburetor may be cracked or broken. When this occurs, it is best to replace the fuel line before it becomes a flammable hazard. This is an OEM replacement fuel line sourced from the manufacturer and is sold individually. This replacement part is compatible with different Briggs & Stratton mowers. Remember to use work gloves and drain the gas tank before the installation of this part.

Flange screws have a flange located near the top of the screw, which helps to distribute the connection force over a larger area to reduce potential damage to the machine. It also allows the screws to be used in oversized or irregular holes, and it helps to ensure they stay in place. This flange screw also has a hex top. Screws can last for a long time. However, they may become corroded or worn over time and need to be replaced. They could also become lost and need a replacement. Without all of the screws in the proper places in a machine, it could vibrate too much, which could render it less effective or unsafe to use. The flange screw is a genuine OEM part that can be used with many types of machines including lawn mowers, snowblowers, tillers, pressure washers, leaf blowers, generators, wood chippers, and other small engines. The screws are compatible with Briggs & Stratton, Craftsman, Toro, Cub Cadet, Murray, Lawn-Boy, Snapper, Simplicity, and MTD.

This is a screw that is used in many types of lawn and garden equipment, including lawnmowers and wood chippers. It comes with a black finish and is made of durable metal. The screw can be used in many locations on a tool to attach two components together. Screws can also be used in tandem with nuts, but the two components should have the same threading and finish.Screws can become damaged, break, or be stripped and will need to be replaced. Corrosion, extreme temperatures, and unexpected stress can all lead to issues with a screw. A visual inspection can indicate whether the screw should be replaced. If it does need replacement, a screwdriver can be used to remove the original screw. The new component can be placed and tightened.This screw is a genuine OEM replacement part that is sourced directly from the manufacturer. It is sold as a single component. The screw can be used with many types of lawn and garden equipment, including lawnmowers, tillers, pressure washers, leaf blowers, edgers, generators, wood chippers, and snowblowers manufactured by Briggs & Stratton, Cub Cadet, Craftsman, Murray, Wheel Horse, Lawn-Boy, MTD, MasterCut, Simplicity, and Toro.

The pawl friction plate on lawn and garden engines is an essential part of the starter assembly that is needed to crank start the machine. It provides power to the starter cup. If the engine on a machine will not start, it could be due to a broken or worn pawl friction plate. Replace the plate immediately to ensure your machine is working properly. This is genuine OEM part is compatible with a range of product types, including lawnmowers, snowblowers, tillers, pressure washers, generators, log splitters, wood chippers, leaf blowers, and chippers. Compatible brands include Briggs & Stratton, Craftsman, Cub Cadet, Lawn-Boy, Snapper, Simplicity, and Toro. The part is sold individually. Keep in mind that this only includes the pawl friction plate. It does not contain the screw or spring, and these will need to be purchased separately.

This is a replacement screw to secure the pawl friction plate used in many types of lawn and garden equipment. The part is also sometimes called a flange bolt. It is identical to the original screw that came with the machine and will replace a lost or damaged screw. The screws could become damaged due to corrosion or an incident that causes the screw to bend or break. They also serve as replacements in case the screw was lost. Replacing the screw is a simple repair to make. This is an authentic OEM replacement screw that is sold individually. Some buyers might want to have an extra screw on hand. The replacement screw for the pawl friction plate can be used on lawn mowers, snowblowers, tillers, pressure washers, generators, edgers, log splitters, wood chippers, and other small engines. Compatible brands include Briggs & Stratton, Craftsman, Toro, Cub Cadet, Lawn-Boy, Snapper, MTD, and Simplicity.

This part has been discontinued by the manufacturer and is no longer available.

The stop switch, sometimes called a kill switch, is triggered to stop the engine when the operator is no longer on the seat ,This is important for safety. If the stop switch is not functioning properly, inspect it for damage and replace it right away. Operating a machine without a functional stop switch can be dangerous. The stop switch is a genuine OEM part, and it is sold individually. The switch can work for many types of equipment including lawn tractors, lawnmowers, log splitters, wood chippers, pressure washers, and tillers. The replacement part is compatible with a range of brands, including Midwest Engine, Toro, Craftsman, Briggs & Stratton, Lawn-Boy, Murray, Snapper, and MTD.

This is an authentic muffler deflector screw that is found in small engines for outdoor power equipment from Briggs & Stratton. This metal screw is designed to secure the muffler deflector to the flywheel. In select models, it may also be used to secure the starter clutch to the flywheel. The screw is durable but exposed to high heat and constant wear, which means that it can become damaged or worn with regular use. If the screw is lost or damaged, it will need to be replaced. It should always be replaced with a genuine OEM part. This OEM muffler deflector screw is manufactured by Briggs & Stratton to exact standards and is compatible with several models of small engines. It can be used with various models of blowers, pressure washers, generators, and snow throwers from Toro, Murray, and Briggs & Stratton. It is sold as an individual replacement part. To replace this screw, the flywheel cover will need to be removed. Then, if it is still present, the old screw will need to be removed and the new one can be installed. This screw requires a hex or Torx screwdriver to install. Always wear gloves and disconnect the spark plug for safety when performing engine repairs.

This replacement friction spring is a genuine OEM part meant for any number of small appliance engines run using a starter rope. This spring absorbs large amounts of kinetic energy that could damage the starter rope pulley system. It helps keep the pulley from being overstretched, which would create enough pressure to break the entire system. This spring sits at the center of the pulley system and creates resistance as the user yanks the starter rope. Friction springs can become worn out after repeated use, especially if a user tends to yank the starter rope quite forcefully. The most obvious sign of a worn of friction spring is if the pulley system lacks any resistance. As the user pulls the cord, they should feel a little pull back, but if the friction spring is worn, there will be much less resistance. Replacing this part is straightforward and will only require a screwdriver. Simply open the pulley system, carefully remove the old spring, and install the new one. This part is compatible with a wide number of appliances from Toro, Vanguard, Briggs & Stratton, and Lawnboy. It comes sourced from the original manufacturer and ships individually.

This replacement valve seal is a genuine OEM part for a lawn tractor or mower. The valve stem is a type of valve that transfers oil into the cylinder and then immediately reseals due to the pressure in the chamber. However, if the seal is damaged, it will not close and oil will leak into the cylinder. If this happens, the cylinder head may become overly lubricated and not run well. This seal helps prevent that from happening. It fastens to the intake valve and valve stem keeper. Seals will naturally wear out over time due to stress and exposure to corrosive oxidizing agents in an engine. When this happens, the valve will leak oil. To test if the valve seal is compromised, look for whitish-grey smoke that indicates burning oil and also measure to see how much oil the engine is consuming. If the seal is breached, use a screwdriver and socket wrench set to change out the part. This top of the line replacement valve seal is compatible with Briggs & Stratton, Toro, and Lawn Boy lawn tractors. It is sourced from the original manufacturer and ships individually.

This replacement part is a switch key. This is a genuine replacement part made by Midwest Engine. This part is commonly found installed within certain lawn mowers and is able to ensure that the user can turn the machine on and off according to the desired settings. A new switch key might be needed if the current one is unable to turn the machine on or off. This can be caused by normal wear and tear over time. If the key is no longer working, it can be due to this part being damaged. This should be a fairly simple repair and should only use common household tools. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

This is a fuel cut-off value that is used in over 150 different small gasoline-powered engines. Those devices that have this value include power vacuums, leaf blowers, pressure washers, and generators. The fuel cut-off valve is a safety feature that sits on the bottom of the fuel tank. In situations where the engine must be cleared of gasoline, this valve is very useful. It allows the gasoline in the fuel line to continue to the carburetor and to be combusted in the cylinder. Once the engine block is drained of gasoline, no further ignition of fuel is possible until the cut-off is reactivated. Although it is out of the way of casual contact, the cut-off can be bumped and damaged by contact with other tools, hoses, or debris. Also, since it is a narrow passage through which gasoline passes, it is possible for contaminants to jam the flow and create a blockage. If the tank is full of gasoline and the carburetor is functioning normally, an engine that won't offer to start at all may be the victim of a faulty cut-off fuel valve. This OEM genuine replacement is compatible with Toro and Briggs and Stratton engines.
