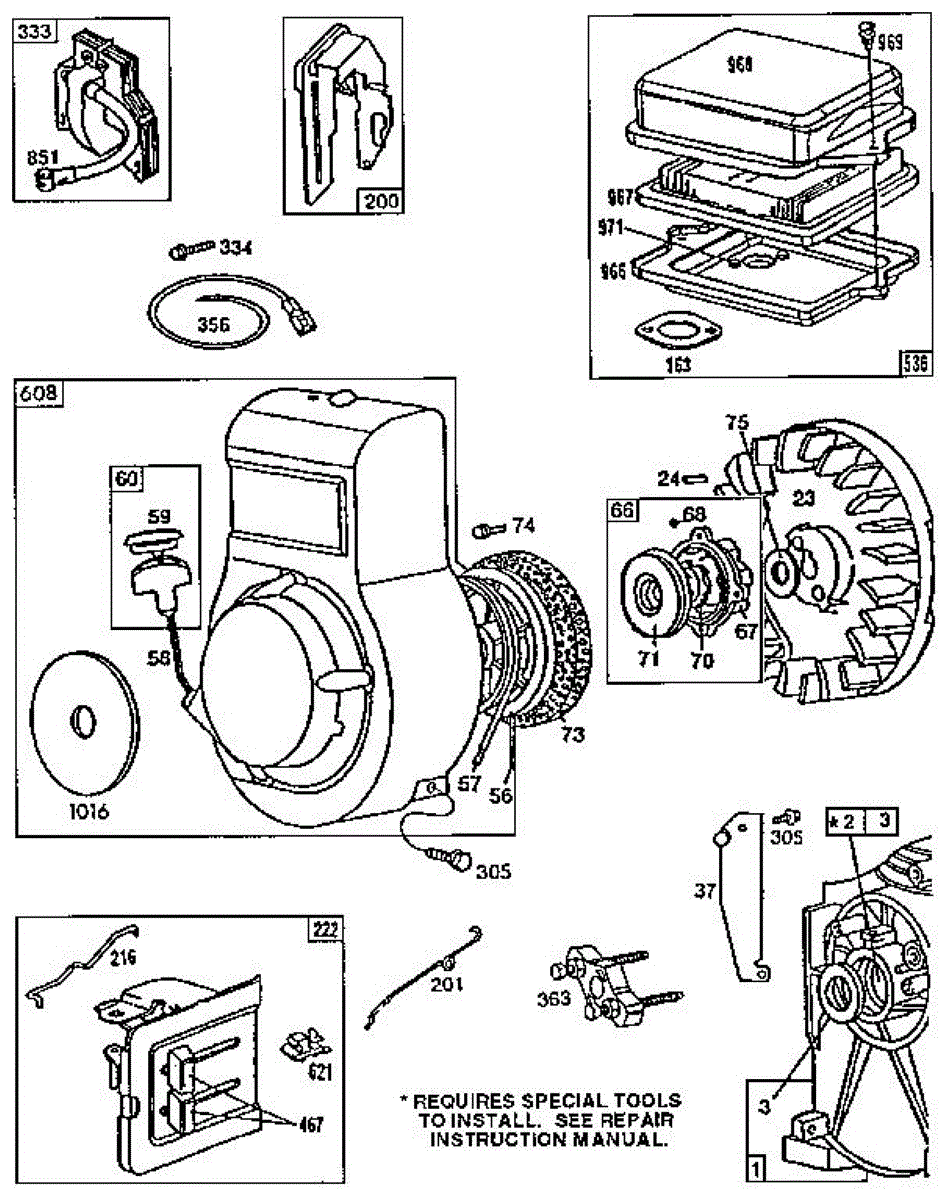

Parts for Briggs & Stratton 80202-2209-011: Rewind Starter Assembly Parts

This OEM starter grip is a replacement for select Briggs & Stratton engines. The starter rope grip provides the handle that is used to pull the starter rope. When it is pulled, the starter recoil spring engages the flywheel puller, which then causes the flywheel to rotate and starts the rotation of the blade as the engine fires. The starter rope grip is made of durable plastic but it can become damaged or cracked over time. If it is broken, the rope will be unable to be pulled to engage the engine until the part is replaced. This is a genuine starter grip designed to work with a variety of lawn and garden equipment that features a Briggs & Stratton engine with a pull-start. The starter grip is sold in two pieces with the grip and a cap that snaps on once the rope has been tied inside of the handle to secure it in place. The unit is sold individually. This item does not include the rope or any additional parts.

The stop wire is a safety cable device offered on many types of lawn and garden equipment. It is pressed near the upper handle of a device to start it, which lets the blades spin and creates forward motion on equipment that is self-propelled. A stop wire can stretch out over time and will need to be replaced to ensure total safety. If the blade brake control is released and the blades continue to spin for more than a couple of seconds, the wire needs to be replaced.Take the equipment and put it on a flat surface before taking the metal on the stop cable and moving it out of the mower handle. Squeeze the center tabs of the wire with needle-nose pliers and pull the cable end through the bracket. Pull the other end out and then replace it with a new component.This is an authentic OEM replacement part for use with garden equipment engines. It is an individual part that is sourced directly from the manufacturer. This part is compatible with lawnmowers, wood chippers, snowblowers, generators, log splitters, tillers leaf blowers, and pressure washers by Briggs & Stratton, MasterCut, Craftsman, Simplicity, Toro, MTD, Cub Cadet, Lawn-Boy, Murray, and Wheel Horse.

The carburetor diaphragm is part of older model engines where a secure seal is needed. This diaphragm is installed on the carburetor and will help to ensure maximum engine operation. The carburetor is responsible for creating and providing the air/fuel mixture to the engine, and there are many working parts that help to ensure that happens, including the diaphragm. In the event that the seal isn't as tight as it should be or the carburetor seems to be performing less effectively, it might be time to replace this part. Replacing the diaphragm will restore the seal and ensure maximum engine operation, as well as prevent further damage to other parts. Make sure to wear gloves when working on engine parts and always disengage the engine and allow it to cool completely before starting repairs. This genuine OEM replacement part is designed for use on Briggs & Stratton engines, including 3-5 HP horizontal engines. It specifically fits those with the pulsa jet carburetor from previous generations. This part is made to exact manufacturer standards and complies with all guidelines and emission regulations.

This tube-pick up was created for three to five horsepower horizontal and five horsepower vertical engines with a two to three-quart tank and a pulse jet carburetor. As part of the carburetor, the tube-pick up moves gas from the float bowl to the main body of the carburetor. Sometimes the tube-pick up can become clogged up with particles and dirt, which makes it harder for gasoline to flow through it. This component can also become damaged or cracked, which means it will need to be replaced to operate the lawn equipment. Replacement requires removing the carburetor from the fuel tank, removing the tube-pick up and installing the new version. Carb cleaner may also be used in the process. This tube-pick up is a genuine OEM product directly from the manufacturer. It comes as an individual part and is made out of plastic. It is used for engines on leaf blowers, generators, tillers, lawn tractors, and lawnmowers by Simplicity, Briggs & Stratton, Cub Cadet, and Toro. A set of pliers may be needed to install the tube-pick up.

This OEM part is a power control board. The power control board provides power to the electronic oven control board. If the oven is no longer turning on, or the digital display is no longer visible, this could mean it's time to replace the power control board. Luckily this is a relatively simple process.To begin, make sure to turn off the power to the oven by unplugging it or shutting off the circuit breaker. Then proceed to remove the upper back panel. Once removed locate the power control board and remove the wire harness and wires attached to it. Be sure to take note of the orientation of the wires to place them into the correct terminals on the new board. Attach the wires to the new board and snap the new board back in place. Resecure the back panel and put the oven back in place.This genuine replacement part is sold individually and is compatible with Bosch, Thermador, and Gaggenau ovens.

This large burner gasket seals the cooktop burner opening to help keep spills and debris out of the burner cavity and support consistent burner operation. It restores a proper seal and helps reduce cleaning and ignition issues. What it does:

• Replaces the ring-shaped gasket that fits around the large surface burner opening
• Helps prevent food, grease and liquids from entering the burner cavity
• Supports stable burner ignition and more consistent flames by maintaining a proper seal
• Reduces the need for frequent under-burner cleaning and related service

• One large burner gasket (seal ring)

• Disconnect power and gas and ensure the range is cool before starting
• Remove burner parts and lift cooktop per your model's service instructions for access
• Position the gasket carefully to avoid tearing; do not stretch beyond original shape
