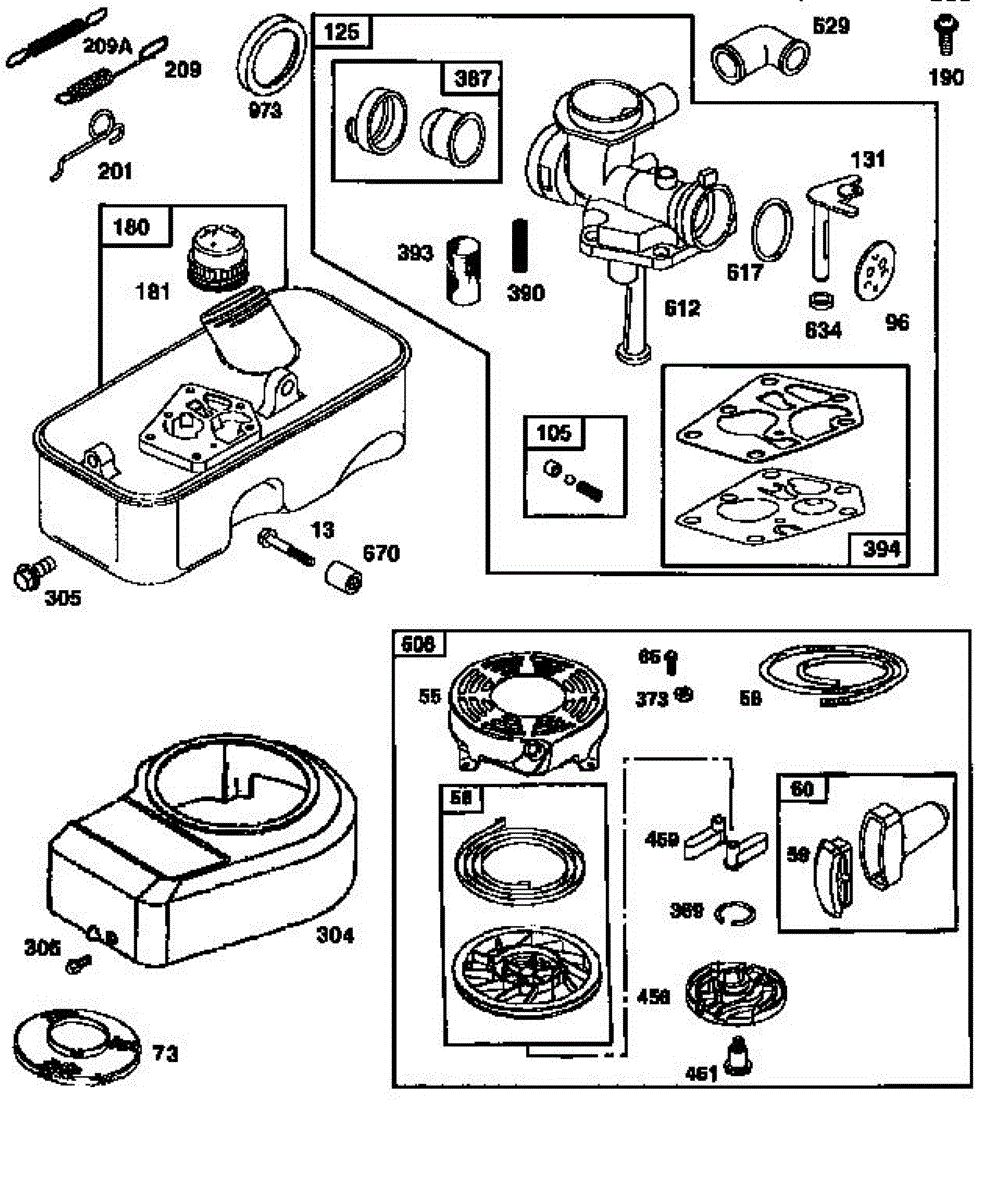

Parts for Briggs & Stratton 9D902-2085-E2: Carburetor And Rewind Starter Assembly Parts

Firing up the lawn mower should be a simple act: hold down the safety bar, grip the hand pull, and yank the rope. What if nothing happens? The pulley works by tightening the spring, then letting it loose, creating compressed air and fuel at the same time the magneto fires the spark plug. It is rare to have an issue with the pulley spring assembly that starts the chain reaction and results in the engine coming to life, but it is possible for the part to fail. If there is a problem with the starter mechanism then it is typically the rope pull wearing out. Users will know when the pulley assembly isn't working either because there is no resistance when the rope is pulled or pulling the rope results in no compression (the engine doesn't sound as if it's turning). When it is determined that the pulley spring needs to be replaced, the user should examine the pull rope and handle to make sure those items do not need to be replaced as well. The most important consideration in replacing this part is to make sure the replacement is an OEM genuine replacement part, which will exactly match this pulley. The pulley is compatible with Cub Cadet and Briggs & Stratton engines.

This OEM starter grip is a replacement for select Briggs & Stratton engines. The starter rope grip provides the handle that is used to pull the starter rope. When it is pulled, the starter recoil spring engages the flywheel puller, which then causes the flywheel to rotate and starts the rotation of the blade as the engine fires. The starter rope grip is made of durable plastic but it can become damaged or cracked over time. If it is broken, the rope will be unable to be pulled to engage the engine until the part is replaced. This is a genuine starter grip designed to work with a variety of lawn and garden equipment that features a Briggs & Stratton engine with a pull-start. The starter grip is sold in two pieces with the grip and a cap that snaps on once the rope has been tied inside of the handle to secure it in place. The unit is sold individually. This item does not include the rope or any additional parts.

This is a quality carburetor that is made to be used on lawnmowers and pressure washers. The carburetor is a component that connects to the cylinder. It is tasked with supplying the optimal mixture of air and fuel to the engine. The carburetor is made of strong metal but can experience damage or wear and tear. If the carburetor is having issues, it can result in an engine that will not start even when the equipment is adequately fueled. The carburetor can also become clogged with dirt or debris and stop running correctly.The carburetor should be tested to determine whether it is causing the issue. Take the air filter out of the lawnmower or pressure washer before starting. Add a small amount of fuel to the carburetor and then see if the motor will start. If the carburetor is having issues, the motor will start but die soon afterward. This carburetor is an authentic OEM replacement part that is sourced directly from the manufacturer. It is sold as an individual component. The carburetor is designed for use with lawn mowers and pressure washers manufactured by Cub Cadet, Briggs & Stratton, and Toro.

This replacement tube is a direct-fit connector used to route water or other fluids within the appliance, restoring proper flow and sealing to help prevent leaks and interruptions in operation. What it does:

• Routes water or fluid between components to maintain proper system flow
• Provides a sealed connection to help prevent drips and leaks
• Replaces cracked, split, or clogged tubing that can cause poor performance
• Helps stop intermittent water flow interruptions or unexpected leaks

• One replacement tube/connector as shown

• Install only when the appliance is powered off and water supply is shut off
• Confirm orientation and seating to avoid pinches or kinks that can restrict flow
• Use compatible clamps or fittings provided by the appliance manufacturer

This is a quality recoil starter assembly that is used in lawnmower and edger engines. The recoil starter makes it easier for a user to pull start the tool. The recoil starter assembly includes all needed parts, including the starter pulley, the plastic housing, the grip, the starter spring, and the pull rope. All additional hardware is also included.Over time, the components inside a recoil starter assembly can start to fail or wear out and will need to be replaced. To replace this part, first turn off the lawnmower or edger and remove the spark plug wire. The recoil starter cover can then be removed from the motor. Remove the full recoil starter assembly and then attach the new recoil starter to the cover using the included hardware. Replace the other components and test the starter and motor before running the equipment.This is an authentic OEM replacement part directly sourced from the manufacturer. It is sold as a single component. The recoil starter assembly is designed for use with lawnmowers and edgers manufactured by Cub Cadet and Briggs & Stratton.
