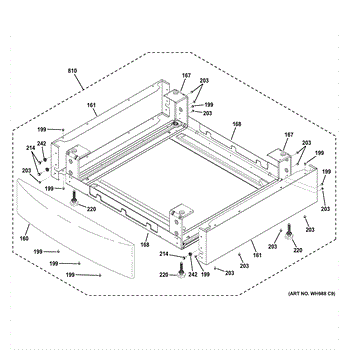

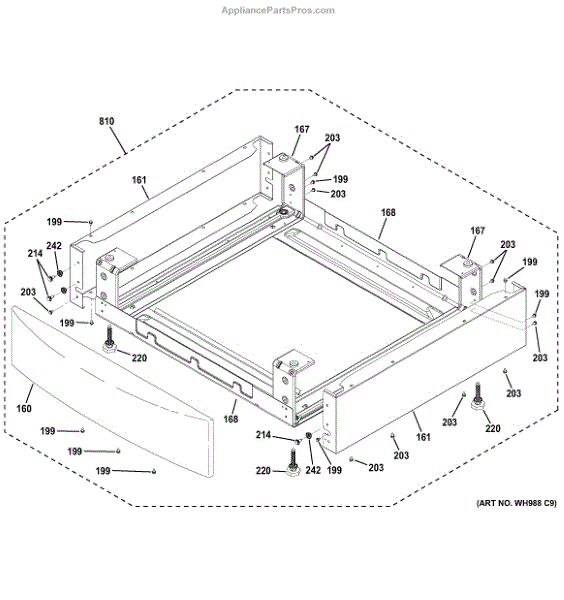

Parts for Ge GFDR485EF0RR: Riser Assembly Parts

This silicon controlled rectifier (SCR) switches and regulates power in compatible appliance control circuits, helping the unit deliver correct power to heating elements or motors. It's a direct replacement component when the original SCR fails. What it does

• Acts as a solid-state switch that controls current flow to heating elements, motors or other high-current circuits.
• Fails open or shorted when worn; common symptom is loss of heating, intermittent power to the controlled component, or no operation on affected circuits.
• Provides fast, repeatable switching compared with electromechanical relays.
• Designed for stud-mount installation with insulated/marked terminals for correct wiring.

• One silicon controlled rectifier (SCR) as listed.

• Disconnect all power before accessing or replacing the SCR to avoid shock or equipment damage.
• Note terminal orientation and wiring before removal; replace with the same terminal/stud configuration.
• Avoid electrostatic discharge to the replacement part; handle by the body and avoid touching terminals.

A replacement 10-16 shoulder screw (Type A) used to secure appliance components where a shoulder/clearance is required. Restores proper alignment and fastening for panels, brackets, or assemblies that use a shoulder-style fastener. What it does:

• Provides a fixed shoulder to control depth and spacing between parts
• Secures panels, brackets, or moving parts while allowing an exact clearance
• Helps prevent over-driving and protects mating parts from damage
• Commonly used where precise alignment or rotation clearance is needed

• Inspect the mating hole and threads for damage before installing
• Use the correct driver and torque—do not over-tighten to avoid stripping
• Replace with the same screw type and size to maintain proper fit and clearance
• Disconnect power and follow all safety precautions when accessing internal components

This leveling leg assembly supports and stabilizes your washer by allowing you to adjust its height for a level installation. Keeping the appliance level helps reduce vibration, noise, and movement during operation.

• Adjusts the washer's stance to ensure it sits level on the floor
• Helps prevent excessive vibration, walking, and rattling noises
• Supports proper spin performance by improving machine stability
• Common fix when a foot is worn, damaged, or will not hold adjustment

• Unplug the washer and turn off water supply before servicing
• Tip the appliance carefully to access the leveling point
• Thread the new leg into the base and adjust until level; lock if applicable
• Verify all legs contact the floor firmly and recheck level after test run

This guide pin bushing cushions and aligns a rotating guide pin, helping the appliance drum or assembly run smoothly and quietly. Replaces worn bushings to reduce noise and prevent pin-to-housing wear. What it does

• Provides a low-friction bearing surface for a guide pin or shaft.
• Keeps the pin centered to prevent wobble and misalignment during operation.
• Reduces noise and metal-on-metal wear caused by a worn or damaged bushing.
• Helps maintain proper movement of the drum/assembly for consistent performance.

• One guide pin bushing.

• Disconnect power before beginning any repair to avoid shock or injury.
• Access may require removing panels, the drum or related assemblies; follow service manual steps.
• Inspect surrounding parts (pin, housing, clips) and replace any damaged components.
• Use appropriate tools and avoid forcing the bushing into place; follow the OEM service instructions for torque/spec guidance.
