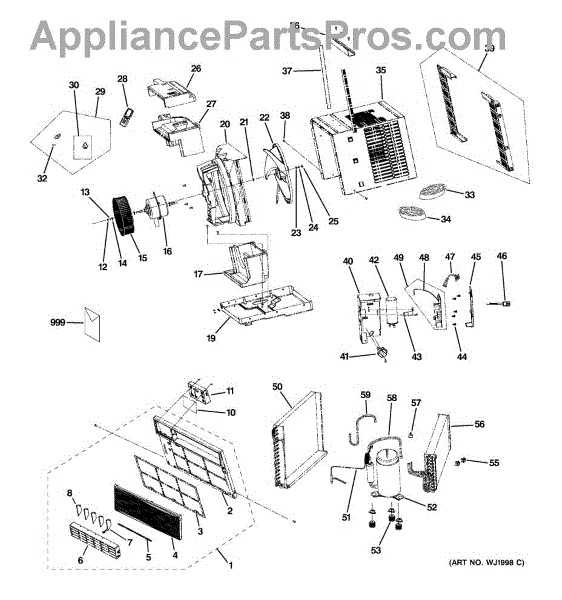

Parts for Ge AED08LNH1: 01 - Room Air Conditioner Parts

This air filter assembly traps dust and lint before they reach the evaporator coil, helping your room air conditioner maintain airflow and cooling performance. Replace clogged or damaged filters to protect components and keep cooling consistent. What it does:

• Screens intake air to help prevent debris from coating the evaporator coil and blower
• Helps sustain proper airflow and cooling performance
• A torn, missing, or heavily clogged filter can cause reduced air volume, longer run times, or uneven cooling
• Captures dust and lint that would otherwise accumulate inside the unit

• Includes: 1 air filter assembly

• Unplug the unit before servicing
• Open the front grille to access the filter; note the orientation of the old assembly
• Slide out the old filter and fully seat the new assembly in the same position
• Do not operate the unit without a filter installed

This vertical louver restores proper airflow and appearance for the appliance's vent or air channel. It directs air and protects internal components while keeping the exterior looking finished. What it does:

• Directs and guides airflow through the appliance vent
• Protects internal components from large debris and improves venting performance
• Helps reduce rattling from a damaged or loose vent louver
• Restores the appliance's exterior look when the original louver is cracked or missing

• One vertical louver

• Disconnect power (or unplug) before accessing the vent area to avoid electrical hazard
• Remove any fasteners or clips holding the old louver; retain hardware
• Align the replacement louver with mounting slots or tabs and secure with original screws or clips
• If edges are sharp or fit is tight, wear gloves and test operation before reassembly

This 8 mm diameter gasket creates a tight seal where a small round-profile seal is required, helping prevent water or air leaks and keeping the appliance operating properly. It's a direct-fit replacement when the original seal is worn or damaged. What it does:

• Replaces a worn or torn round-profile gasket to restore proper sealing
• Helps prevent leaks of water, steam, or conditioned air in sealed connections
• Reduces drafts and moisture intrusion that can affect appliance performance
• Restores the original interface between mating parts for reliable operation

• One 8 mm diameter gasket

• Turn off power and water to the appliance before beginning work
• Clean the sealing surfaces and remove old gasket material before installing the new gasket
• Seat the gasket evenly around the mating surface; avoid stretching or twisting the seal

This flat washer provides a secure, even load distribution for a fastener on the appliance, helping maintain proper assembly and reduce loosening or wear. Use it to replace a damaged or missing washer during repairs. What it does:

• Sits under a nut or bolt to spread load and protect the appliance surface
• Helps prevent fasteners from loosening due to vibration
• Restores proper spacing and alignment for connected parts
• Commonly replaced when you see corrosion, cracking, or a loose connection

• One flat washer

• Disconnect power and turn off water supply before starting any repair
• Tighten fasteners to a snug fit—avoid over-tightening which can crush the washer
• If adjacent parts show damage or corrosion, inspect and replace as needed

This nut with attached washer is a small securing fastener used to clamp appliance parts and prevent loosening. It provides a low-profile, integrated washer bearing surface for a reliable hold. What it does:

• Secures panels, brackets, or components to prevent movement and rattling
• Maintains clamping force where an integrated washer is needed
• Helps keep electrical and mechanical connections stable
• Common symptom: loose or vibrating parts, squeaks, or components that shift during use

• One nut with attached washer

• Disconnect power and water before servicing
• Use the correct socket or wrench to avoid rounding the nut
• Tighten to snug fit — avoid overtightening which can strip threads or damage parts
• If replacing a rusted or damaged fastener, inspect mating threads and replace as needed

This door gasket seal replaces a worn or damaged refrigerator or freezer door seal to restore a tight closure and help maintain proper temperature. It helps stop air leaks that can cause frost build-up and higher energy use. What it does:

• Forms a replacement seal around the appliance door to maintain an airtight closure
• Helps reduce interior temperature fluctuations that can lead to frost or spoiled food
• Restores proper door alignment and sealing where old gasket is cracked, torn, or compressed
• Commonly used when you see visible gaps, drafts, or persistent moisture at the door edge

• Designed for a direct OEM-fit; inspect the door channel and mounting surface before installing
• Clean the gasket channel and door edge to remove debris for best sealing contact
• Warm the gasket slightly (per OEM guidance) if needed for easier fitting; avoid open flames

This connection bar is a cabinet-mounting support piece that secures panels or components to the appliance cabinet for stable alignment and reduced vibration. It restores proper fit and helps maintain door/panel positioning. What it does:

• Provides a secure attachment point between an internal component or panel and the appliance cabinet
• Helps eliminate panel rattling, vibration, or minor misalignment
• Maintains correct spacing and support for fitted panels or assemblies
• Supports long-term stability of the mounted component

• One connection bar to cabinet

• Disconnect power to the appliance before beginning any repair
• Remove any panels or trim that block access to the mounting location; keep fasteners organized
• Use appropriate hand tools and avoid over-tightening fasteners to prevent damage

This curtain assembly is the extendable side panel for a window air conditioner. It fills the gap between the A/C cabinet and window frame to restore a secure fit and help block drafts, moisture, and debris.

• Extends to close the side opening between the unit and the window jamb
• Helps reduce unwanted airflow, dust, moisture, and insects around the A/C
• Aids in maintaining a stable, properly aligned window installation
• Common symptoms: cracked or torn panel, brittleness, missing panel, visible light or air leaks at the sides

• Disconnect power and support the A/C so it cannot shift or fall while servicing
• Remove the damaged panel and retain any screws or mounting clips for reuse
• Slide the new curtain into the cabinet tracks and secure it to the window frame per your model's instructions
• Match orientation to the original panel and ensure smooth extension and an even seal before use

This electric box is the replacement electrical junction housing that secures wiring connections and protects components from damage. It restores a safe, organized enclosure for power and signal leads. What it does:

• Houses and secures internal wiring and splices to prevent loose connections
• Protects terminals and wiring from physical damage and shorting
• Helps maintain reliable power delivery to the appliance's controls and components
• A worn or damaged box can cause intermittent power, control errors, burning smells, or visible wiring damage

• Disconnect power to the appliance before starting any repair to avoid shock hazard
• Requires basic hand tools; retain mounting hardware if it is to be re-used
• Verify correct positioning and secure all wire connections per OEM routing before reassembly

This display board is the front electronic control that shows oven/range status and lets you select functions, times, and temperatures. Replacing a failed display restores visible readouts and responsive control inputs for safe, reliable operation. What it does:

• Provides the visual display and status indicators for the appliance control console
• Accepts user inputs from the control panel and relays commands to the main control
• Commonly replaced for blank or flickering displays, unreadable characters, or unresponsive console controls
• Can clear display-related error symptoms when the underlying issue is a failed display module

• Disconnect power at the breaker or unplug the appliance before starting work
• Access typically requires removing the control console or back console panel; follow OEM service instructions
• Handle the board carefully and avoid static discharge; do not touch connector pins
• If symptoms persist after replacement, check the main control and wiring harness for faults

This thermostat is the temperature control for room air conditioners. It senses temperature and cycles the compressor to maintain your set comfort level, helping restore consistent cooling when the original control becomes inaccurate or fails. What it does:

• Monitors temperature and opens/closes contacts to start and stop the compressor
• Helps the unit reach and maintain the temperature you select
• Helps resolve symptoms such as: AC won't turn on/off at the dial setting, runs continuously, short-cycles, or temperature adjustments have little effect
• Direct-fit replacement designed for the original mounting location

• 1 thermostat

• Disconnect power before servicing to avoid electrical shock
• Access the control panel; note wire locations and transfer any mounting hardware from the old part
• If your model uses a capillary sensing tube, route it exactly as original and secure in clips; do not kink or sharply bend it
• Reassemble, align the control knob, and test operation across several temperature settings

This electronic main control board manages the appliance's user interface and core functions, restoring responsive controls and proper cycle/temperature control when the original board fails. What it does:

• Receives input from buttons/knobs and runs oven/cooktop cycles and timings
• Controls display readouts, indicator lights and electronic user feedback
• Regulates relays and signals to heating elements, burners or other major components
• Faulty board can cause unresponsive controls, error codes, no display, or intermittent operation

• Disconnect all power before servicing to avoid shock or damage
• Handle the board carefully; avoid static discharge and support PCB edges
• Match connector locations and secure mounting; do not force connectors
