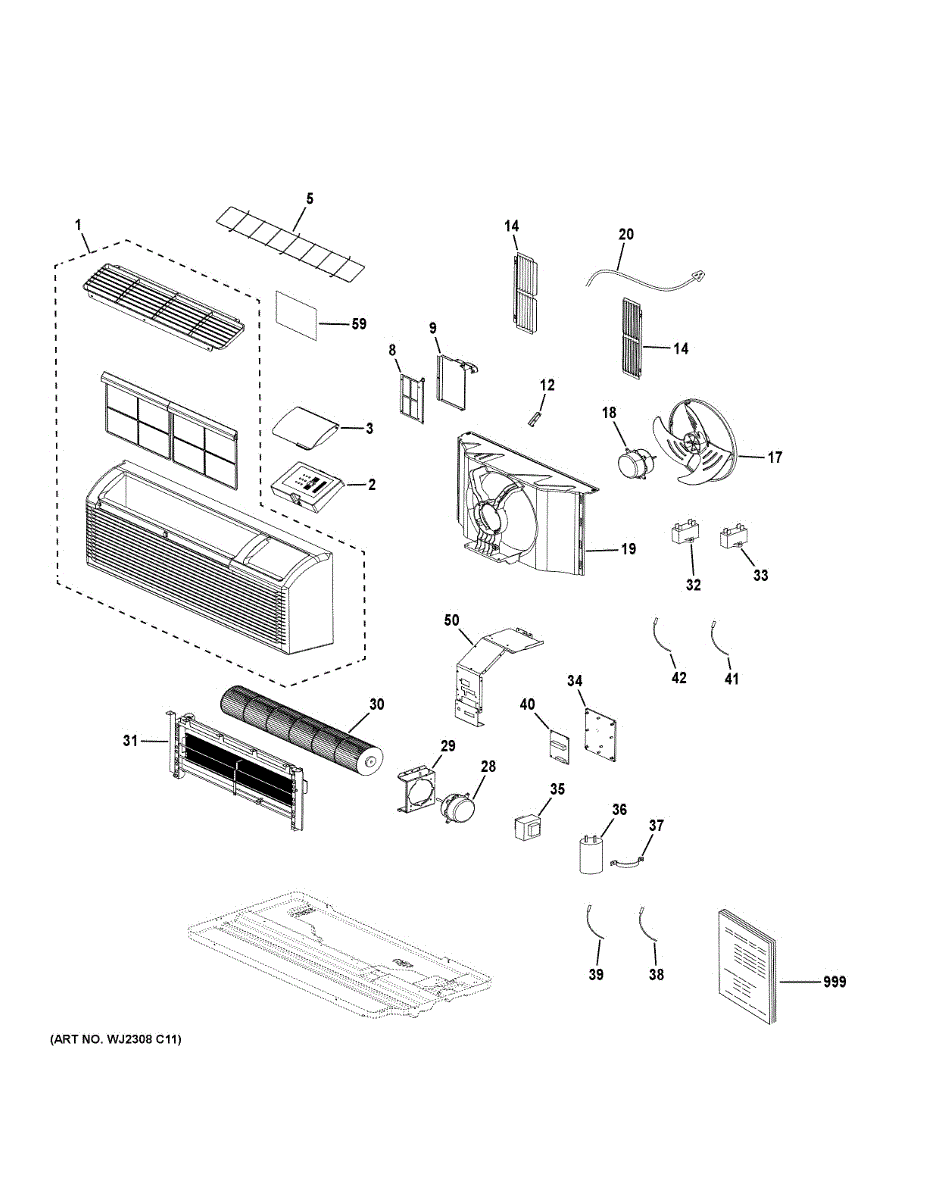

Parts for Hot Point AH11E09D2BK3: Room Air Conditioner Parts

This room front assembly is the room-facing grille/cover for a room air conditioner. It restores a secure fit and clean appearance while helping direct airflow when the original front panel is cracked, loose, or missing.

• Covers and protects the unit's front cabinet and discharge area
• Directs airflow through the front louvers and supports the control/display trim
• Helps reduce vibration and rattling when properly secured
• Typical symptoms: broken or missing grille, damaged louvers, panel won't stay attached, visible cracks/warping

• Unplug the air conditioner before servicing
• Remove any retaining screws, then release locking tabs to lift off the old front
• Align the new panel's tabs, snap it into place, and reinstall screws
• Transfer any reusable hardware or decorative trim from the original part as needed

This UI housing assembly replaces the front control panel trim that holds the touchpad, buttons and display in place, restoring a secure, finished look and proper control alignment. It helps protect internal electronics and gives the console a clean appearance. What it does:

• Provides the mounting surface and trim for the user interface, touchpad and display
• Keeps control board and related components secured and properly positioned
• Restores proper button alignment and prevents further wear or damage from a cracked or broken housing
• Improves cosmetic appearance of the control console and protects internal parts from dust and debris

• One UI housing assembly

• Disconnect power (unplug or switch off breaker) before beginning any service
• Remove control panel trim and nearby components to access and replace the housing; keep fasteners organized
• Handle the housing and attached electronics carefully to avoid damage to the touchpad or ribbon cables

This vent door filter is a replacement vent screen that helps keep lint, dust and debris from entering the appliance venting pathway, protecting the blower and improving airflow reliability. What it does:

• Screens lint and airborne debris before they reach the vent opening
• Helps maintain proper airflow and reduce buildup in the vent path
• Can reduce recurring lint accumulation on internal components
• Commonly replaced when the filter is torn, clogged or missing

• One vent door filter

• High-level replacement—remove the access panel or door, swap the old filter for the new one, and secure the panel
• Power off and unplug the appliance before servicing
• Inspect surrounding seal and vents for damage; replace any worn components for best performance

This replacement fan motor capacitor (3 µF, 450 VAC) helps the appliance's fan motor start and run more reliably, restoring proper airflow and cooling performance. Use when the motor hums, runs intermittently, or the fan won't start. What it does:

• Provides the starting/run charge the fan motor needs to operate smoothly
• Helps prevent motor humming, slow-starting, or intermittent operation
• Supports stable fan speed for effective cooling and airflow
• Reduces strain on the motor when functioning correctly

• One fan motor capacitor (3 µF, 450 VAC)

• Disconnect power before servicing; verify the appliance is unplugged or breaker is off
• Discharge the capacitor before removal to avoid electrical shock
• Note and match wiring orientation and connections; replace with like-for-like specifications

This thermistor is a refrigerator temperature sensor that provides accurate temperature feedback to the control board so the appliance can maintain stable cooling and proper defrost cycles. Replaces a failed or out-of-spec sensor to restore reliable temperature readings. What it does:

• Monitors evaporator/compartment temperature and reports readings to the control board
• Helps control cooling and defrost timing when the sensor reads correctly
• A failing sensor can cause warm or fluctuating temperatures, long run times, or incorrect defrost behavior
• Used when diagnostics show temperature-sensing errors or inconsistent temperature control

• One thermistor temperature sensor

• Disconnect power to the appliance before installing to avoid shock or damage
• Handle the sensor and connector carefully; avoid pulling wires or kinking the harness
• Verify sensor location and routing match the original before securing; some models mount near the evaporator or inside the fresh-food compartment
