Samsung DA34-00004D Refrigerator Compressor Overload Protector OEM Part

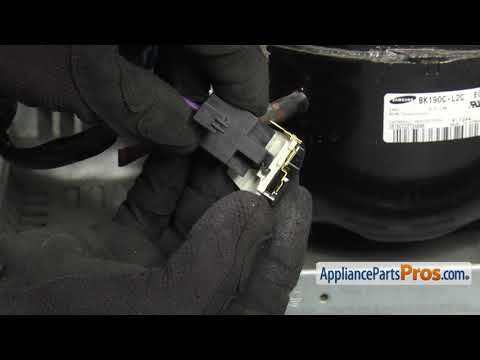

Took a bit to diagnose. First tried cleaning coils but the problem still persisted. Next took of the back panel and put the system into diag mode. (Press energy save button and fridge button for eight seconds system ding once a second and inverter board red LED will blink a code or be on solid if no issue. See back of the refrigerator for a sticker with what the number of blinks means. My unit one blinking 1 time. So I measured the resistance of the compressor between windings (8.9 ohms between each of the three pins on CN03 removed from the "Inverter" board. You can do this by removing the OLP assembly from the compressor and go across each of the three pins directly on the compressor as well. Should be around 10 ohms and within 10% of each other. Also, measure between each pin and ground and make sure not shorted, should be open. Also tested OLP relay, See Appliance Parts Pros video how to remove and test OLP. I removed OLP and measured resistance it was closed(shorted) as it should be. Finally used DVM to see the Approximate 2.5 volt signal on CN75 pin 4 on the Main Control board going to the Inverter board. The signal was there so suspected Inverter (Poer Control )board. Removed the Inverter board and could see it had a burned-out area on the back. Ordered Inverter board from ApplianceePros. I had been on phone with Appliance pros when going thru the troubleshooting steps mentioned above. Once the new Inverter board was installed and I plugged the system in I could feel the compressor running. After some time the compressor got warm and it was obvious the Fridge and Freezer were starting to cool. Thanks for all the support AppliancePartsPros. Saved a lot of money !!!!

I submitted an online ticket with Samsung support. Had several phone calls with their customer service and eventually (took three tries) got a serviceman capable to inspect what was wrong with the appliance. There were no error codes since the Main PCB board was toast. The Power inverter was popped by another serviceman trying to diagnose the issue before the qualified guy came. (we were without a frig in the house for a month). The last guy to look at the unit figured that with the voltages being wrong coming out of the Main PCB and the Inverter board completely dead that my issue(s) lie there. I downloaded the service repair manual, found the part ids and hit the web to find parts after being quoted a nearly $700 repair bill. I found www.appliancepartspros.com and was very happy with the entire process, and the prices! The VERY NEXT day I had the parts without spending anything extra on shipping options and 30 minutes later I had a working frig again!

To avoid a so called Samsung qualified tech charging us $500 minimum just to look at it, I hit the net. After watching a bunch of YouTube’s and googling fix-techs who turned out to be parts warehouses trying to sell me parts. I started checking what was working and what wasn’t. Both the refrigerator and the freezer didn’t work. Took the back panel off where the PCB’s are. The small inverter board has a red LED light that’s suppose to be on when everything’s working. It was off. Tried to get a trouble code with the LED, still dead. Checked continuity with the compressor, overload switch and all of the wiring for that circuit, that all checked OK. Chatted with Shawn N. with AppliancePartsPros.com and came to the conclusion that the problem was most likely the small inverter board. Ordered the board($138), two days later it arrived and 5 minutes after that my $2500 Samsung RF268ABRF was working! Thank You AppliancePartsPros! Heads Up: when ordering Samsung parts, use the BOM NAME model number, not the actual MODEL NUMBER. Also, check with the “compatibility box” on their site using the BOM NAME model numbers to see if your ordering the correct part.

Refrigerator would not hold temperature, lots of food wasted. First, replaced door seals, no luck. Researched problems further on YouTube. Determined that problem could be bad relays on circuit board and/or bad starter relay on compressor. Ordered the replacement parts, for under $20.00. Removed circuit board, and removed two relays; re-soldered in new relays. Still no success. Then replaced starter relay on compressor. Bingo! Refrigerator fired up. Now holding refrigerator temperature at 34 degrees and freezer at - 2 degrees. Was job difficult? Somewhat. Removing the soldered on relays on the circuit board required careful heating of the solder points and some prying to lift them off the board. Attaching new relays was a piece of cake. Inserted them into existing hole from the old relays and touched them with a bit of solder. Starter relay on compressor was simply a pull out and replace. Total time to repair. 1.5 hours. Knowledge and experience required? Not much of either, but a must have tools and confidence in ability to do this kind of work. However, cost to repair would have run well over $1,000 so I had nothing to loose. Less than $20.00 and we're back on line. Lesson Learned: Don't be afraid to tackle tough jobs. What do you have to loose? Thank you AppliancePartsPros for technical support and for providing right parts in quick time.

Samsung refrig model #: RF267AEWP/XAA; 9 years old. Originally thinking that I would have to spend major money for new refrig, but fortunately "Appliance Parts Pros" had prior feedback from folks with the same cooling problem and feedback info indicated 2 parts may solve my problem. Video on parts replacement by "Appliance Parts Pros" tremendous help in how parts simple to replace. I ordered 2 parts: Power Control Board $145 and Compressor Overload Protector $18. I paid for overnight FedX at $24, but ok since in hopes parts would solve the problem. The replace video for install of Power Control Board needs to give notice that the 3 plug in terminals on "old" board require a hand compress of the side latch and to be careful not to break any plug tabs--fortunately, I had no breakage. Summary: I could not use the Compressor Overload P. because of design change by Samsung, but the Power Control Board has apparently fixed the cooling problem. I bought 2 refrig thermometers - 1 refrig shows 42 degrees now and freezer shows minus 12 degrees. I would recommend "Appliance Parts Pros"
