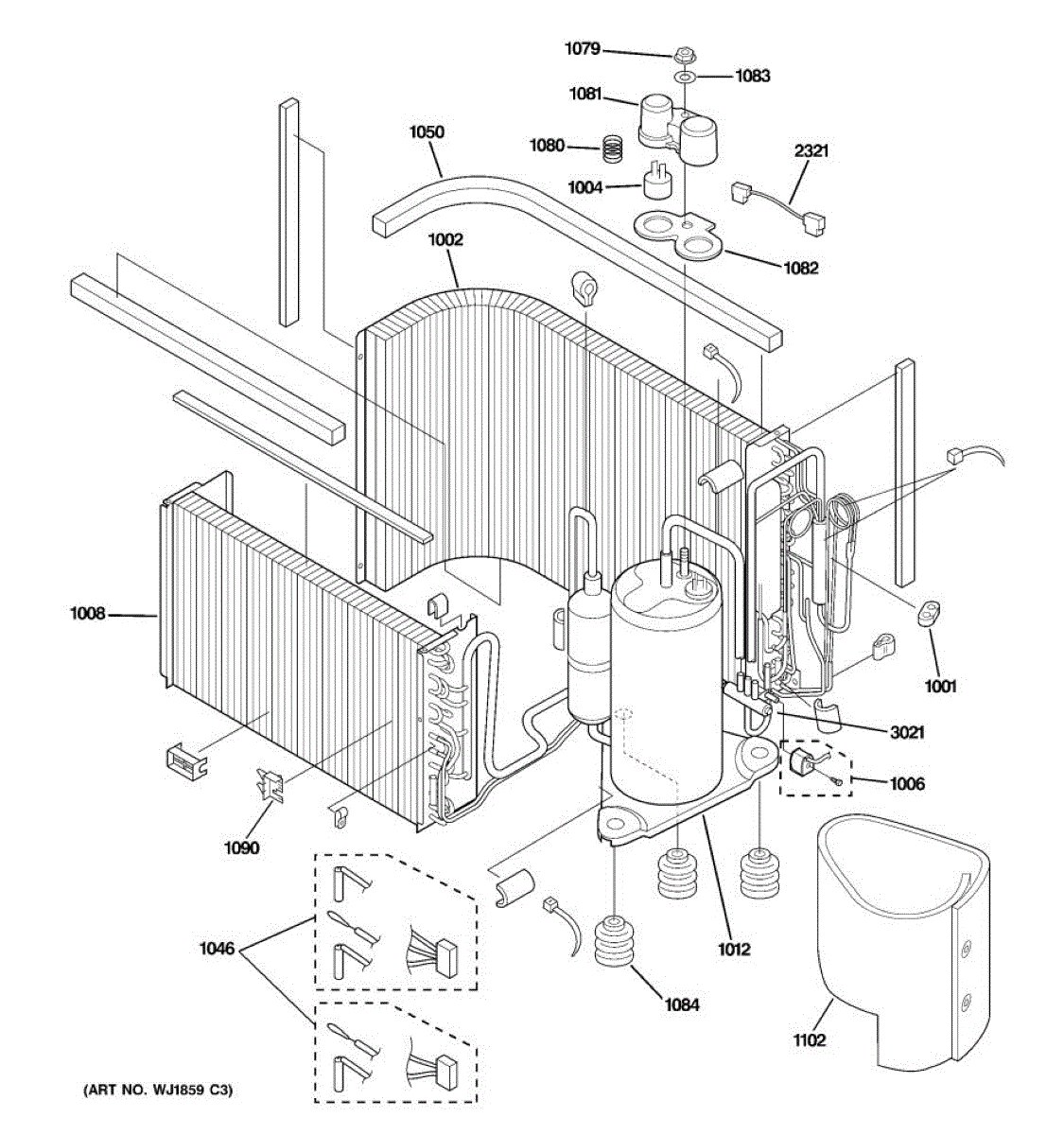

Parts for Ge AJHS10DCCM1: 03 - Sealed System & Components Parts

This evaporator assembly circulates refrigerant inside the freezer compartment to remove heat and help maintain cold temperatures. Replacing a damaged evaporator restores proper cooling and reduces frost buildup. What it does:

• Houses the evaporator coil where refrigerant absorbs heat from inside the appliance
• Enables airflow over cold surfaces for consistent freezer/cabinet temperatures
• Commonly replaced when you see excessive frost, poor cooling, or frequent defrost cycling
• Works with the appliance's sealed refrigeration and defrost systems to maintain performance

• One evaporator assembly

• Recover the refrigerant safely and follow all EPA and local regulations before opening the system
• Handle the coil carefully to avoid kinks or damage; ensure all fittings and seals are replaced per OEM instructions
• Verify proper vacuum, charge and leak-free connections before returning the appliance to service

A rubber compressor cushion that isolates the compressor from the refrigerator chassis to reduce vibration and prevent metal-on-metal contact. Replaces worn or missing cushions to help minimize noise and vibration transfer. What it does:

• Cushions the compressor to dampen vibration and reduce rattling or buzzing noises.
• Keeps the compressor from directly contacting the cabinet, preventing wear and chafing.
• Helps maintain proper compressor positioning and reduces stress on mounting components.
• Common symptom: increased compressor noise or vibration, or visible worn/deteriorated cushion.

• One compressor cushion (rubber mount).

• Disconnect power to the appliance before starting any repair.
• Support the compressor or secure the unit when removing/replacing mounts to avoid strain.
• Remove the old cushion and press the new cushion into place; no refrigerant handling required.
• Use basic hand tools and wear gloves.
