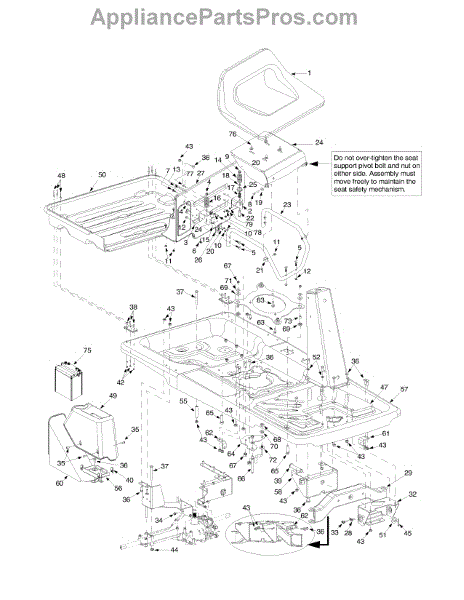

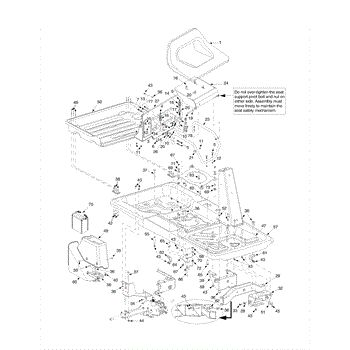

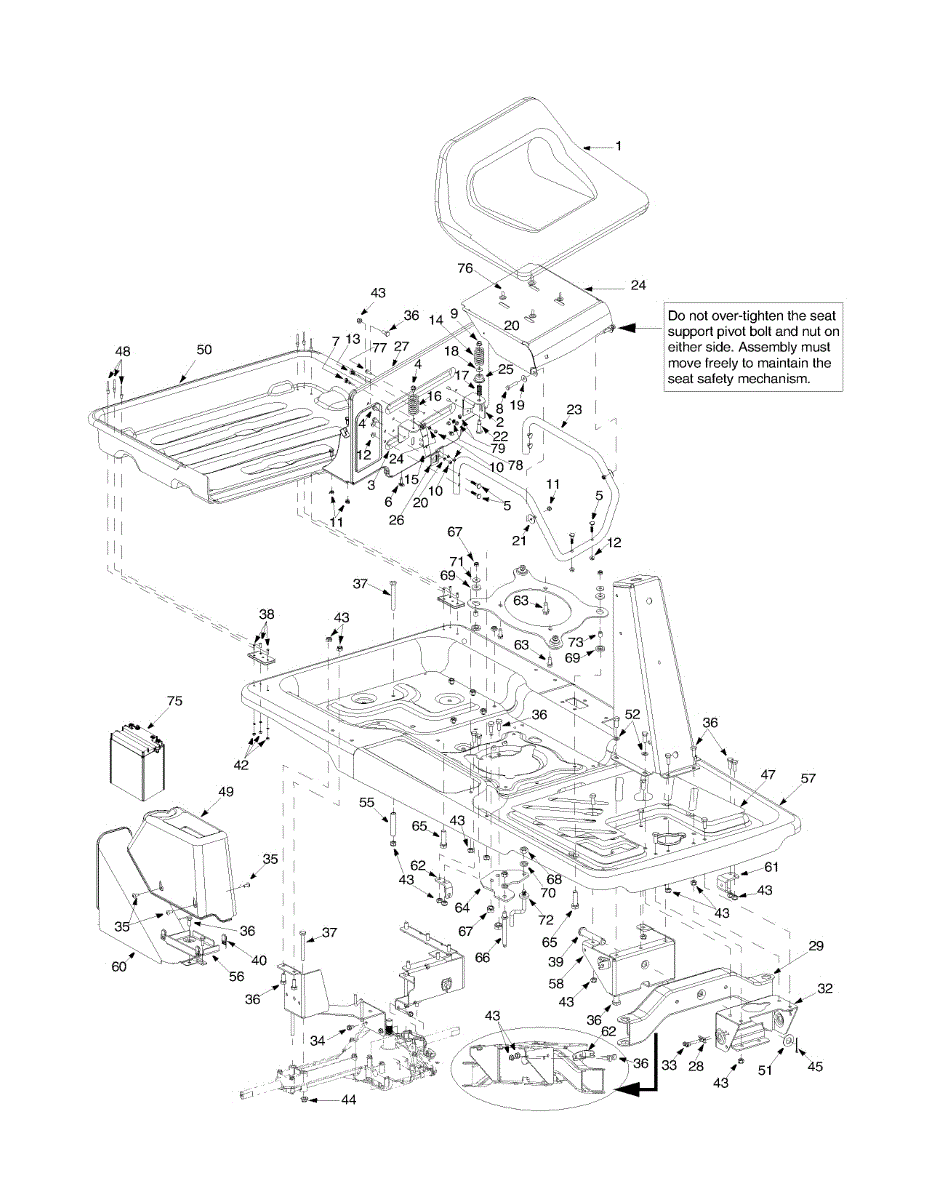

Parts for Craftsman 13A4065-099 / 2002: Seat & Frame Assembly Parts

This replacement part is a seat. It is a genuine replacement part made by MTD. This seat has a low back and is intended for use specifically for riding lawnmowers. This seat is able to support the user while they are operating the machine so that they are comfortable and upright during use.A new seat might be needed if the current one is damaged or missing. It is common for the seat to become worn down over time and lose support. If this is the case, the user might choose to replace it. It is also common that the seat becomes damaged such as being torn or ripped. This can cause the seat to not be as effective.This replacement seat is sold individually. This part is a genuine OEM replacement part sourced directly from the manufacturer.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.

This replacement part is a bolt. This is a genuine replacement part made by MTD. This part is small but important to the overall workings of the machine. Bolts work with other parts such as screws and nuts to ensure that different parts are held in place and are secure during use. A new bolt might be needed if the current one has become loose, is missing, or has been damaged. This can include being dented, bent, or lodged in place. Be sure to replace it as soon as possible if this is the case. This should be a fairly simple repair and only require common household tools such as a screwdriver and pliers. This part is sold individually and is sourced directly from the manufacturer. This is a genuine OEM replacement part.

The hex lock nut is found on many different types of outdoor lawn equipment, as well as other types of equipment. The lock nut works to secure bolted joints by adding friction to the bolt threads. The nut has flat sides, which can easily be gripped by a wrench to be tightened or loosened as needed. These types of nuts are common, as they provide easy assembly and disassembly of various parts. Buyers may need a new hex lock nut for a range of reasons. The nut that is currently on the equipment could have become damaged or lost while working on the machine. It is vital for all of the nuts to be in place and properly secured on the equipment before use. This is an authentic OEM part. Some of the products that use hex lock nuts include lawn mowers, snowblowers, tillers, edgers, string trimmers, and log splitters. Common equipment brands using these nuts include Craftsman, Toro, Cub Cadet, Yard Machines, and Troy-Bilt.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

This replacement part is a ratchet fastener, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by Husqvarna. This ratchet fastener is found on most lawn mowers and is similar to a screw in that it helps keep parts of the appliance in place and secure.A new fastener might be needed if the current ones are damaged or missing. It is common for these types of fasteners to become stripped over time after years of normal wear and tear. The repair for this part should be fairly easy and will only require a screwdriver and possibly pliers if there is a fastener stuck. If there are parts of the lawn mower that are loose or falling off, a new fastener might be needed. This small part is sold individually and is a genuine OEM replacement part. Be sure to purchase the correct amount as some appliances require more than one.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This replacement part is a bushing washer. This is a genuine replacement part made by MTD. Washers work with other small parts like nuts and screws to hold certain pieces in place. This allows for the engine to run smoothly and efficiently. A new bushing washer might be needed if the current one is missing or damaged in any way. This can include being dented, bent, or cracked. Washers can become worn down due to normal wear and tear over time. This is caused by friction inside of the engine. Refer to the user manual for more specific instructions on how to replace this part. This bushing washer is also a genuine OEM replacement part to ensure proper fit. This part is sold individually and is sourced directly from the manufacturer for long-lasting use.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This self-tapping screw is used to attach various parts to the engine housing of medium sized gasoline powered engines, in particular yard tools such as tillers, snow blowers, yard tractors, riding mowers, power vacuums, shredders, and chippers. It is used in over 150 different gasoline powered engines. Screws such as these are used particularly when a device is going to receive a great amount of vibration and stress while the engine is running and rotating tools are engaged. Such devices sustain a great deal of wear over time and the parts subject to replacement will eventually fail and need to be replaced. In such cases, it is wisest to replace the attaching hardware such as housing screws as well, because it is a self-tapping screw. Screws of this type are designed to forge a tight bond between the metal pieces they are securing together, but once loosened, they should ideally be replaced with new hardware. Make sure when replacing these screws to use genuine OEM parts like these screws. These replacement parts are manufactured to be identical to the original pieces. This hex screw is compatible with the following brands: MasterCut, Yard-Man, Yard Machine, Montgomery Wards, MTC, Murray, Bolens, Craftsman, Turf King, Troy Bilt, Cub Cadet, Huskee, Toro, and Ryobi.

Cotter pins are simple but very effective fasteners used primarily to hold wheels in place on mowers. This is particularly true of the front wheels on riding mowers. Cotter pins are very light and can become overly pliable after extensive use. In some cases, the front wheels of a mower, which are the guide wheels that steer the device, become difficult to manage. The cure for this situation is often simply the replacement of the cotter pins that are not holding the guide wheels adequately in place. Before attempting to remove the pins, it is essential that the spark plug boot is moved so that the mower cannot be started. This is an important safety step because the repairer will be getting under the mower near the blades. The back wheels should be blocked so the mower cannot move, then the front end placed up on blocks. Remove the mower's hubcaps to gain access to the axle spindles. Straighten the legs of the pin so that when the curved portion of the cotter pin is grasped with pliers and it can be pulled straight back and be removed. The spindle, washers, and wheels should be checked for wear before the new pin is placed and secured. This OEM cotter pin is compatible with Bolens, Yard-Man, Craftsman, Yard Machines, Cub Cadet, Turf King, Troy-Bilt, Huskee, Toro, Ryobi, MTD, MasterCut, Murray, and Montgomery Wards.

A flat washer is used in a variety of applications, such as being placed under bolts or nuts as a means to help distribute the load over a larger area and to help ensure the nuts and bolts do not become loose over time. The washers also help to protect the surface from corrosion and damage. Not having washers could reduce the lifespan of a machine. It is important for buyers to replace washers that may have been lost or become damaged. The washers should be checked for signs of corrosion, cupping, or other damage that would necessitate replacement. Buyers should always make sure they are getting the correct size. The flat washer is an OEM part sold individually. It can be used for a range of different types of outdoor machines and more. Some of the types of machines that typically use these washers include lawn tractors, tillers, lawn mowers, chippers, shredders, and snowblowers. Brands include MTD, Yard Machines, Yard-Man, Troy-Bilt, Poulan, and Ryobi.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This is a genuine 5/16 hex nut, a standard piece of hardware used to affix various components securely. This MTD nut is used in multiple applications and has several placement options depending on the model of the engine. Nuts can become stripped or worn over time. In some cases, the screws they are attached to may become stripped, which might require a replacement of both. A wrench is required to complete the replacement. This hex nut is designed to work with several brands that feature MTD engines, including RYOBI, Yard Machines, Yard-Man, MTD, Troy-Bilt, Husky, Bolens, and Cub Cadet. There are hundreds of machines that use this nut, including tractors, lawnmowers, blowers, cultivators, and snowblowers. This nut is sold individually; purchase additional parts as necessary.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This battery is a genuine MTD part, sold individually. This battery can be used as a replacement part or a lawn tractor. The purpose of a battery is to fit into the internal workings of the appliance so it can be operated by battery power for regular use on lawns and other surfaces.The battery of a lawn mower or a lawn tractor might have to be replaced if it is damaged from exposure to the elements or a direct impact with a hard object such as a rock or a curb. If any of these occur, the component should be removed and replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is an OEM part sourced directly from the manufacturer. It is sold individually. This battery is compatible with the following outdoor appliance brands: MTD, Cub Cadet, Yard-Man, and Yard Machines.

This self-tapping screw is used to attach various parts to the engine housing of medium sized gasoline powered engines, in particular yard tools such as tillers, snow blowers, yard tractors, riding mowers, power vacuums, shredders, and chippers. It is used in over 150 different gasoline powered engines. Screws such as these are used particularly when a device is going to receive a great amount of vibration and stress while the engine is running and rotating tools are engaged. Such devices sustain a great deal of wear over time and the parts subject to replacement will eventually fail and need to be replaced. In such cases, it is wisest to replace the attaching hardware such as housing screws as well, because it is a self-tapping screw. Screws of this type are designed to forge a tight bond between the metal pieces they are securing together, but once loosened, they should ideally be replaced with new hardware. Make sure when replacing these screws to use genuine OEM parts like these screws. These replacement parts are manufactured to be identical to the original pieces. This hex screw is compatible with the following brands: MasterCut, Yard-Man, Yard Machine, Montgomery Wards, MTC, Murray, Bolens, Craftsman, Turf King, Troy Bilt, Cub Cadet, Huskee, Toro, and Ryobi.
