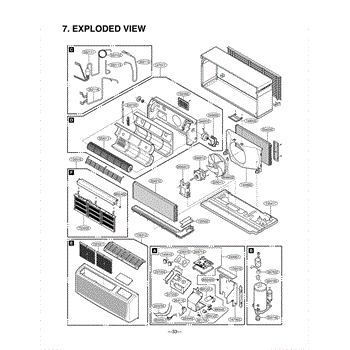

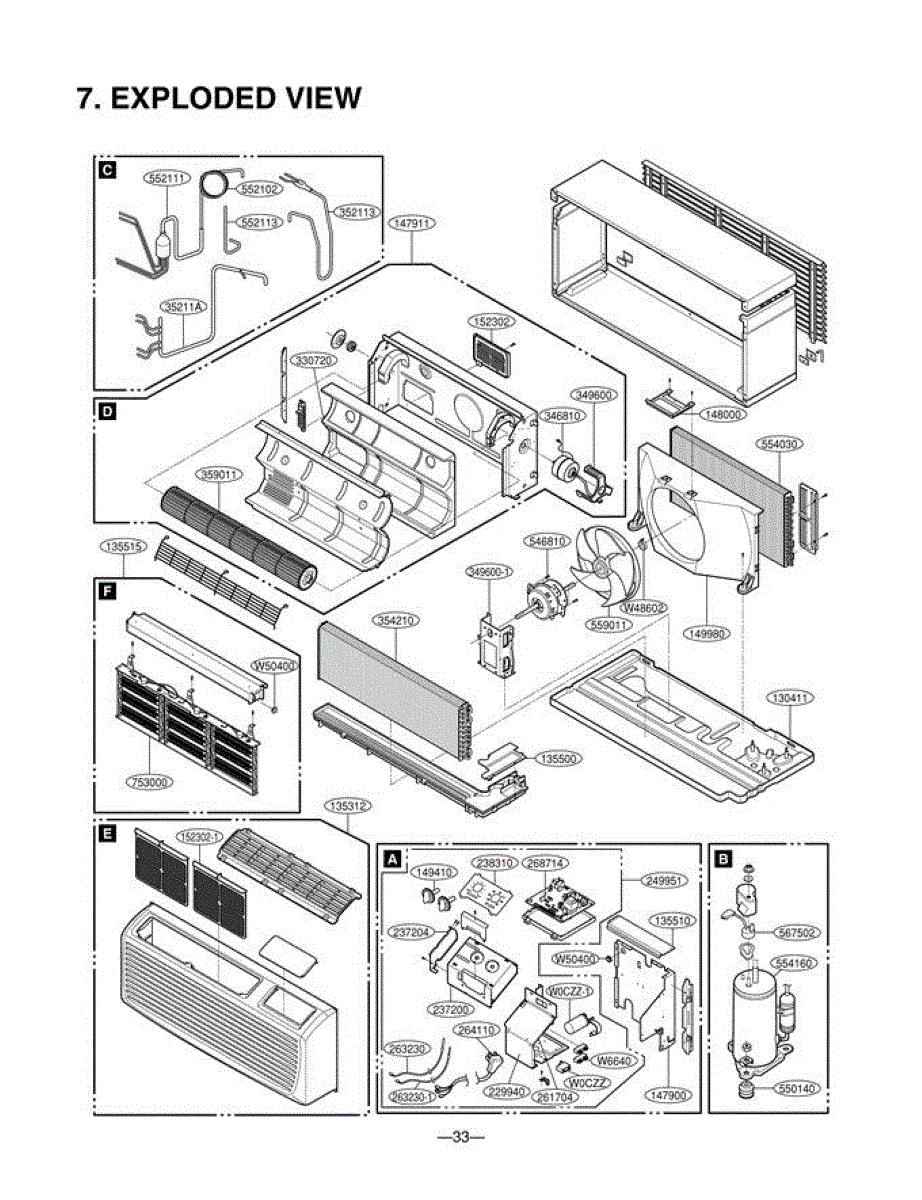

Parts for Lg LP120CM3 / ASBACIL: Section 1 Parts

A box-style film capacitor used in appliance control and motor circuits to stabilize voltage and filter electrical noise. Replaces a worn or damaged capacitor to help restore reliable operation and reduce electrical interference. What it does:

• Smooths and filters voltage peaks to protect controls and electronics
• Helps reduce electrical noise that can cause erratic motor or control behavior
• Supports stable operation of motors and control boards in the circuit
• Commonly replaced when capacitor is cracked, bulging, or electrically failed

• Disconnect power to the appliance before servicing to avoid shock hazard
• Discharge the capacitor before handling; capacitors can hold a charge after power is removed
• Match polarity and terminal layout to the original part; install only in the intended circuit location

This replacement electric capacitor helps stabilize voltage for appliance motors and control circuits, restoring reliable starts and smoother operation. Use it to replace a worn or failed capacitor to address motor-related performance issues. What it does:

• Stores and releases electrical charge to help motors start and run smoothly
• Stabilizes voltage to reduce surges that can affect control circuits
• Common symptom: motor hums but won't start or runs weakly
• Common symptom: intermittent operation or frequent tripping of breakers/fuses
• Can fail over time from heat, age, or repeated starts

• Always disconnect power to the appliance before servicing
• Discharge capacitor terminals before touching to avoid shock
• Observe terminal orientation and wiring; replace with identical type/ratings

This supporter is a replacement support bracket that helps hold and steady internal components for proper alignment and operation. It restores secure mounting and reduces movement that can cause noise or wear. What it does:

• Secures internal assemblies to the cabinet so parts stay aligned during use
• Helps prevent excess vibration and noise caused by loose or worn supports
• Can resolve symptoms like rattling, knocking, uneven operation or parts shifting
• Replaces a damaged or broken bracket to restore proper fit and clearance

• One supporter support bracket

• Disconnect power and unplug the appliance before starting any repair
• Access may require removing exterior panels or covers;
• Keep track of mounting hardware; reuse original screws if not supplied

This replacement air filter helps reduce common refrigerator odors and maintain fresher-smelling interior air. It installs in the dedicated filter compartment to help keep stored food smelling neutral and reduce lingering smells. What it does

• Absorbs and neutralizes food and cooking odors inside the refrigerator
• Helps reduce stale or sour smells that can develop over time
• Supports overall freshness of stored food by filtering internal air
• Common symptom: persistent or recurring refrigerator odors despite cleaning

• One air filter designed for the refrigerator's filter compartment

• Locate the filter compartment per your owner's manual and remove the old filter before installing the new one
• Install new filter until it seats securely; follow any filter-reset steps if your model requires them
• Dispose of used filter following local regulations
• If odors persist after replacement, check for spoiled food, spills, or blocked vents

This linear transformer supplies low-voltage control power to the appliance, enabling timers, relays and control circuits to operate reliably. It restores proper control voltage when the original transformer has failed. What it does:

• Converts incoming mains to the appliance's required low-voltage control supply for timers and relays.
• Restores correct control-circuit operation when symptoms include no display, non-responsive controls, or intermittent cycle starts.
• Prevents erratic control behavior caused by a weak or failed transformer.
• Used wherever the control board requires a dedicated low-voltage feed.

• One linear control transformer.

• Disconnect power at the breaker or unplug the appliance before servicing to avoid shock.
• Verify wiring color/terminal locations and note connections before removing the old transformer.
• Handle with care; secure transformer and wiring to prevent strain or contact with hot surfaces.

This NTC thermistor assembly is the temperature-sensing probe and harness the control uses to read actual temperatures and regulate operation. Replacing a failed sensor restores accurate temperature feedback for consistent performance and proper cycling. What it does:

• Senses temperature via a negative temperature coefficient element; resistance decreases as temperature rises
• Sends the signal to the control board to manage operation and cycle timing as designed
• Typical symptoms include inaccurate temperatures, not maintaining set temperature, extended run times or short cycling, and sensor-related error codes
• Often reads out of range when tested at known temperatures

• One NTC thermistor assembly

• Disconnect power to the appliance before servicing; turn off water supply if applicable
• Note original sensor placement, routing, clips, and insulation before removal
• Install the new assembly; route wiring away from sharp edges, heat, and moving parts; secure any clips/insulation as found
• Restore power and run a diagnostic or allow the unit to stabilize, then verify operation

This isolator routes microwave energy between the magnetron and waveguide to help protect components and maintain consistent heating performance. Replacing a failed isolator can restore reliable cooking and help prevent further high-voltage damage. What it does:

• Directs RF energy from the magnetron into the waveguide/cavity
• Helps protect the magnetron by reducing reflected energy
• Aids in preventing arcing or burn damage in the waveguide area
• Common symptoms of failure: no heat or uneven heating, loud humming/buzzing, visible arcing/burn marks near the waveguide

• 1 isolator

• Disconnect power and discharge the high-voltage capacitor before servicing; risk of electric shock
• Handle waveguide components carefully; avoid contaminating RF surfaces and note exact orientation
• Take photos of the original setup to match positioning and fastener locations

The A/C Condenser Fan Blade is an OEM part for LG air conditioners. This fan blade is responsible for drawing air through the condenser coils to dissipate heat, ensuring the air conditioner operates efficiently and effectively.

Over time, the condenser fan blade can become damaged or worn out due to exposure to outdoor elements, debris, or physical impact. Additionally, regular use can lead to wear and tear, affecting the fan blade’s performance.

Symptoms of a bad A/C condenser fan blade include:

• Reduced cooling efficiency
• Unusual noises such as rattling or clanking from the fan area
• The fan not spinning or spinning unevenly
• The air conditioner frequently cycling on and off due to overheating

This OEM LG part is also compatible with Sears/Kenmore models.
