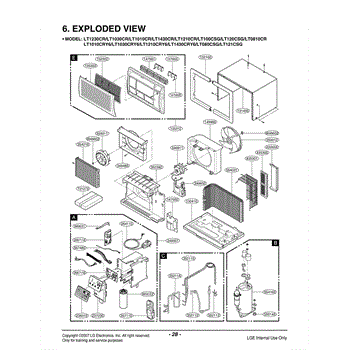

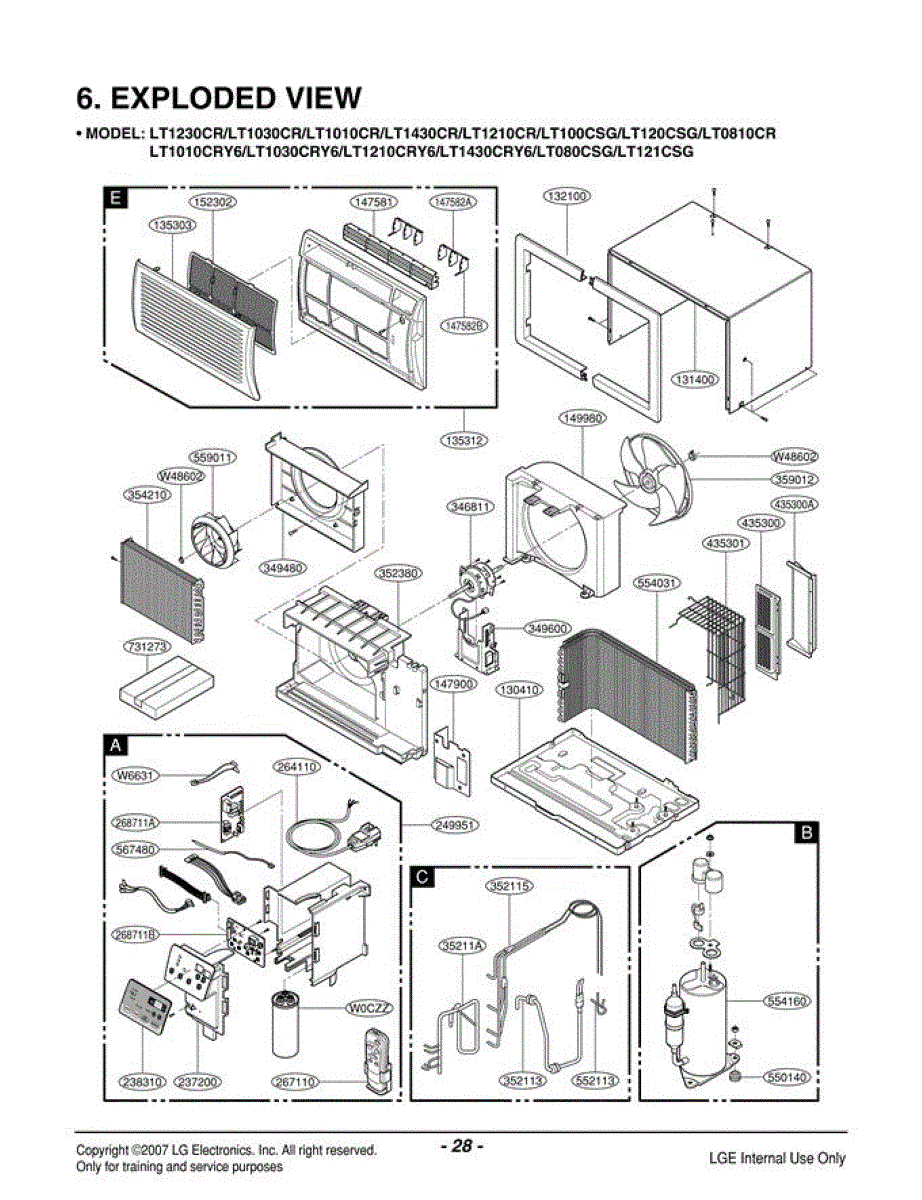

Parts for Lg LT1230CR / AWYBHDP: Section 1 Parts

This replacement electric capacitor helps stabilize voltage for appliance motors and control circuits, restoring reliable starts and smoother operation. Use it to replace a worn or failed capacitor to address motor-related performance issues. What it does:

• Stores and releases electrical charge to help motors start and run smoothly
• Stabilizes voltage to reduce surges that can affect control circuits
• Common symptom: motor hums but won't start or runs weakly
• Common symptom: intermittent operation or frequent tripping of breakers/fuses
• Can fail over time from heat, age, or repeated starts

• Always disconnect power to the appliance before servicing
• Discharge capacitor terminals before touching to avoid shock
• Observe terminal orientation and wiring; replace with identical type/ratings

This replacement frame is a structural component that supports and aligns adjoining panels and hardware in your appliance. Replacing a cracked or warped frame restores a secure fit, reduces vibration, and keeps panels and trim seated correctly.

• Provides rigid mounting and alignment for the associated panel or assembly
• Keeps screws, clips, and trim in position to prevent looseness or rattling
• Helps maintain proper clearances so doors or panels open and close smoothly
• Common signs of failure: cracked plastic, broken tabs, visible gaps/misalignment, or a panel that won't stay attached

• Disconnect power to the appliance before servicing
• Note fastener locations and retain all screws/clips to transfer to the new frame
• Inspect mating panels and clips; replace any damaged retainers before reassembly
• Tighten fasteners evenly and avoid overtightening to prevent cracking the new part

This remote controller assembly is the complete handheld control used to operate compatible appliances, restoring lost or damaged remote control functions for convenient, wireless operation. What it does:

• Sends the appliance's infrared/remote commands to control settings and cycles
• Replaces a broken, unresponsive, or missing remote to regain full remote functionality
• Helps resolve symptoms like no response from remote, intermittent command reception, or damaged buttons
• Works as the user-facing control interface for selecting modes, temperatures, or timed functions

• One remote controller assembly (as shown)

• Replace with the power source removed and follow the appliance manual for pairing or setup
• Handle electronic components carefully; avoid moisture and static discharge
• If the original remote used batteries, install fresh batteries and test operation after replacement
• If commands still fail, verify line-of-sight to the appliance and that the appliance receiver is powered

This remote controller assembly replaces a malfunctioning TV remote control PCB and housing to restore infrared/IR command transmission and on-unit button control. Ideal when the remote stops responding or buttons become unresponsive. What it does:

• Replaces the internal PCB and button assembly that sends IR signals to the TV.
• Restores remote control functions like power, volume, channel, and input selection.
• Helps resolve symptoms such as no response from the remote, intermittent commands, or stuck/non-working buttons.
• Works with the existing remote cover and batteries if those components are reused.

• Disconnect power to the TV and remove batteries from the remote before replacing the assembly.
• Use appropriate small screwdrivers and keep track of screws and clips; handle the PCB by its edges to avoid damage.
• Reassemble carefully, insert fresh batteries, and test all functions after installation.

This isolator routes microwave energy between the magnetron and waveguide to help protect components and maintain consistent heating performance. Replacing a failed isolator can restore reliable cooking and help prevent further high-voltage damage. What it does:

• Directs RF energy from the magnetron into the waveguide/cavity
• Helps protect the magnetron by reducing reflected energy
• Aids in preventing arcing or burn damage in the waveguide area
• Common symptoms of failure: no heat or uneven heating, loud humming/buzzing, visible arcing/burn marks near the waveguide

• 1 isolator

• Disconnect power and discharge the high-voltage capacitor before servicing; risk of electric shock
• Handle waveguide components carefully; avoid contaminating RF surfaces and note exact orientation
• Take photos of the original setup to match positioning and fastener locations

The A/C Condenser Fan Blade is an OEM part for LG air conditioners. This fan blade is responsible for drawing air through the condenser coils to dissipate heat, ensuring the air conditioner operates efficiently and effectively.

Over time, the condenser fan blade can become damaged or worn out due to exposure to outdoor elements, debris, or physical impact. Additionally, regular use can lead to wear and tear, affecting the fan blade’s performance.

Symptoms of a bad A/C condenser fan blade include:

• Reduced cooling efficiency
• Unusual noises such as rattling or clanking from the fan area
• The fan not spinning or spinning unevenly
• The air conditioner frequently cycling on and off due to overheating

This OEM LG part is also compatible with Sears/Kenmore models.
