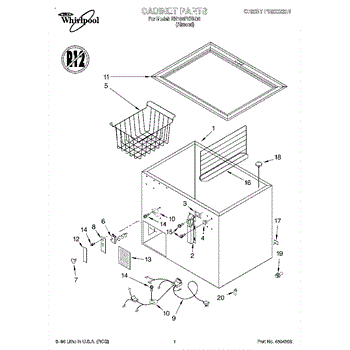

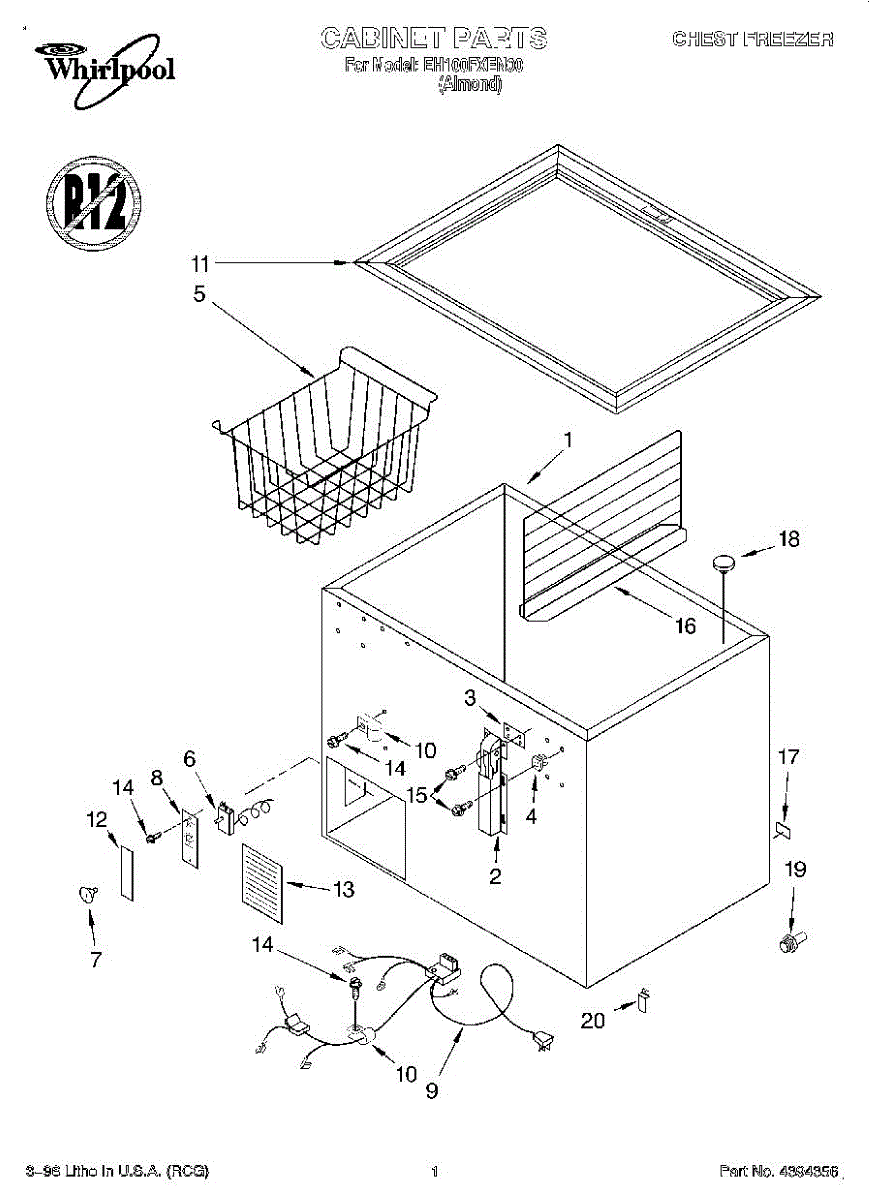

Parts for Whirlpool EH100FXEN00: 01 - Section Parts

This interior storage basket restores organized storage inside the appliance so food and containers stay contained and easy to access. It replaces a cracked, bent or missing basket to help keep shelves tidy. What it does

• Provides a removable container to organize and contain items inside the appliance.
• Keeps smaller items from shifting or falling through vents or shelf gaps.
• Replaces a warped, cracked or broken basket that can snag or allow spills.
• Helps maintain usable storage space and improves access to stored items.

• One interior storage basket

• Most baskets simply lift out and lift back in; check the cabinet rails or support tabs for proper seating.
• If screws or clips secure the basket, use the correct size driver and keep parts organized during removal.
• Disconnect power before servicing if working near electrical components or lights.
• Wear gloves to protect hands from sharp edges and support the basket during removal to avoid drops.

This part has been discontinued by the manufacturer and is no longer available.

This is a replacement machine screw used to secure interior and exterior appliance panels and components. It restores proper fastening to reduce vibration and keep parts aligned for reliable operation. What it does:

• Secures panels, brackets, or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain correct alignment of control panels and trim pieces
• Works as a direct replacement when the original screw is lost or damaged

• One screw

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten to firm hand pressure; do not overtighten to prevent thread or part damage
• Disconnect power to the appliance before accessing internal components
• If fasteners or mounting holes are damaged, replace with the appropriate hardware.

This defrost drain adapter funnels melted defrost water from the evaporator area into the refrigerator's drain channel, helping prevent water pooling and evaporator-area leaks. A simple replacement to restore proper drain flow. What it does:

• Directs defrost meltwater into the cabinet drain to prevent pooling under the evaporator.
• Helps stop water from leaking into the refrigerator or freezer compartment.
• Can reduce odor and residue caused by standing water in the drain area.
• Fits the drain/chest drain opening and mates to the cabinet drain tubing.

• Disconnect power to the appliance before starting any repair.
• Access typically requires removing interior panels or the evaporator cover—keep screws and fasteners organized.
• Clean the drain channel and line of any ice or debris before installing the adapter to ensure proper flow.
• Reconnect power and test by pouring a small amount of warm water into the evaporator area to ensure the drain is routing properly.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Kit of 60.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.
