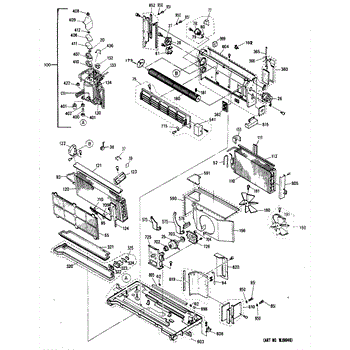

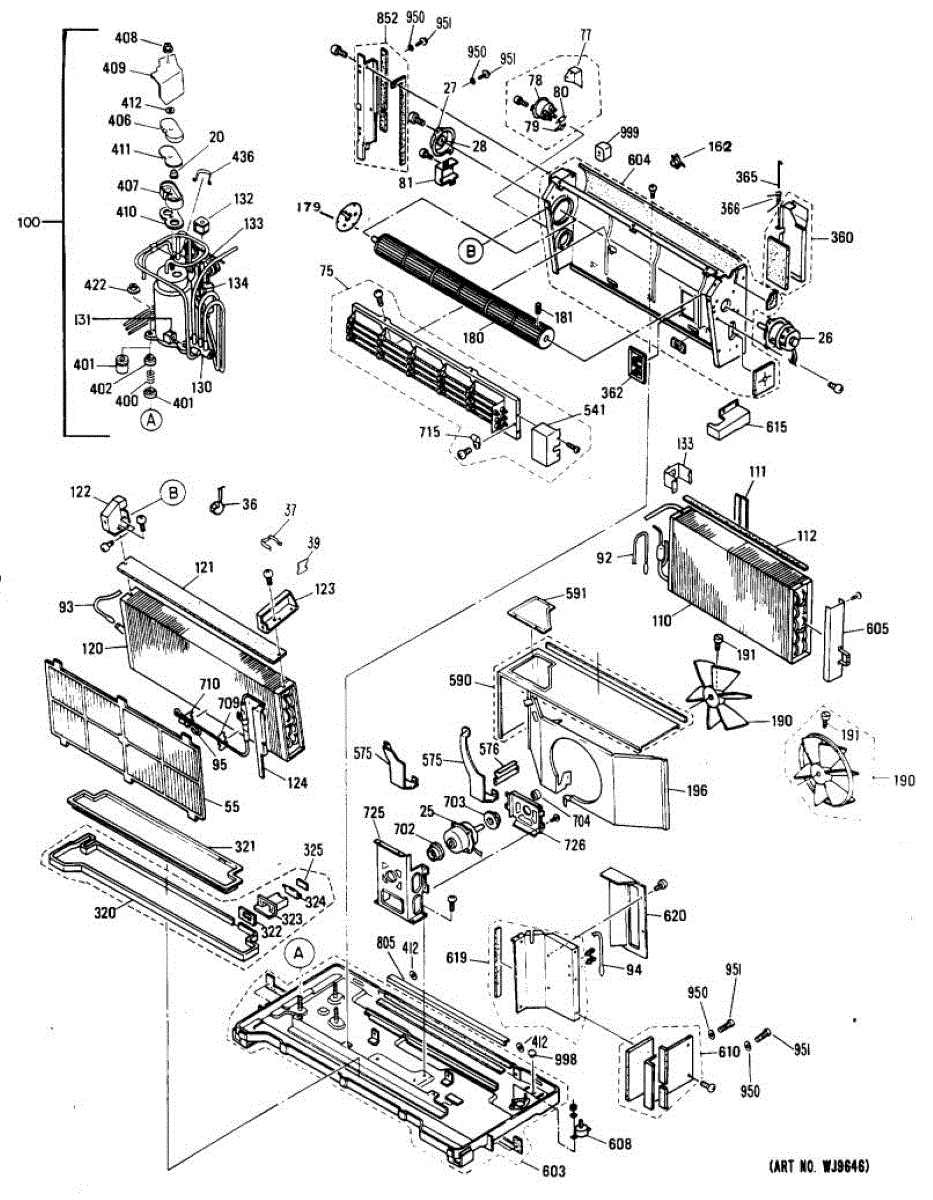

Parts for Ge AZC415EDV3: 02 - Section2 Parts

This indoor fan motor replaces a worn or failed blower motor to restore airflow inside the appliance, helping maintain proper cooling and consistent temperatures. It's a direct-fit replacement designed for the appliance's internal air-circulation system. What it does:

• Circulates air through the appliance interior to support cooling and temperature balance
• Drives airflow across evaporator/coils to help efficient heat exchange
• Helps eliminate weak or no airflow that can cause warm spots or reduced cooling
• Works as the internal blower motor used whenever the appliance runs its cooling or circulation cycles

• Disconnect power to the appliance before starting work to avoid shock or injury
• Handle the motor and fan blade carefully to avoid bending blades or damaging wiring
• Verify mounting orientation and connector fit; do not force electrical connectors

This reversing valve assembly directs refrigerant flow to switch a heat-pump refrigeration system between cooling and defrost modes, restoring proper temperature control and system cycling. Replaces a worn or leaking valve to help recover normal operation. What it does

• Routes refrigerant flow to change system mode (cooling vs. defrost/heat) in compatible heat-pump refrigerator systems
• Stops refrigerant bypass and restores correct high/low side pressure balance when functioning
• Common symptom: unit fails to switch modes or runs but won't cool/freeze properly
• Common symptom: visible refrigerant leaks or oil around the valve body

• Refrigerant system work requires a certified HVAC/R technician; valve replacement typically involves recovering and recharging refrigerant
• Disconnect power before servicing and relieve system pressure per safety procedures
• Handle the valve and fittings carefully to avoid damage to sealing surfaces; use proper brazing or flare techniques if required
• After installation, leak-test before recharging

This blower shaft is the replacement shaft that supports and aligns the dryer/tumble blower wheel for smooth airflow and reliable venting. It restores proper blower rotation and helps maintain efficient drying performance. What it does:

• Provides a secure mounting point for the blower wheel so the blower spins true
• Restores consistent airflow when a worn or damaged shaft causes wobble or noise
• Helps eliminate rubbing, squeaking, or grinding sounds from the blower assembly
• Supports proper venting, which can reduce drying time caused by blower misalignment

• One blower shaft

• Refer to your appliance's service manual for disassembly/reassembly steps and correct shaft orientation
• Disconnect power (and gas, if applicable) before servicing to avoid shock or injury
• Inspect the blower wheel, housing, and bearings; replace any worn components to prevent repeat failure
• Use appropriate hand tools; avoid forcing parts to prevent damage to the shaft or housing

This access cover is a replacement service panel that restores a clean, secure opening for accessing internal components. It protects wiring and parts while letting technicians reach components for service. What it does:

• Replaces a damaged or missing service panel to protect internal components and wiring
• Provides a secure cover to reduce dust entry and accidental contact with running parts
• Restores a proper opening for technicians to access controls, switches, or connections
• Can improve safety and allow normal maintenance procedures to be performed

• Disconnect power to the appliance before attempting installation
• Installation typically requires basic hand tools (screwdriver); keep fasteners from the original panel
• Handle edges carefully to avoid sharp metal; wear gloves if needed

This base pan drain valve channels defrost and condensation water from the refrigerator base pan to the drain system, preventing standing water and ice buildup. It's a direct-replacement part that restores proper draining and helps maintain normal cooling performance. What it does:

• Directs melt and condensation from the base pan into the drain line to prevent pooling.
• Re-establishes proper water flow when a cracked, clogged, or broken drain outlet is causing leaks or puddles.
• Reduces odor and freeze-up risk by preventing stagnant water in the base pan.
• Works with the fridge's drain system; not an electrical component.

• Disconnect power to the appliance before starting any repair; also shut off water if the model has a connected water supply.
• Remove the kick plate/base cover and access the base pan to reach the drain valve.
• Inspect mating seals and the drain tube; replace degraded seals or clear any obstructions to ensure proper drainage.
• After installation, test by pouring a small amount of water into the base pan drain area and confirm it flows through the valve without leaking.
