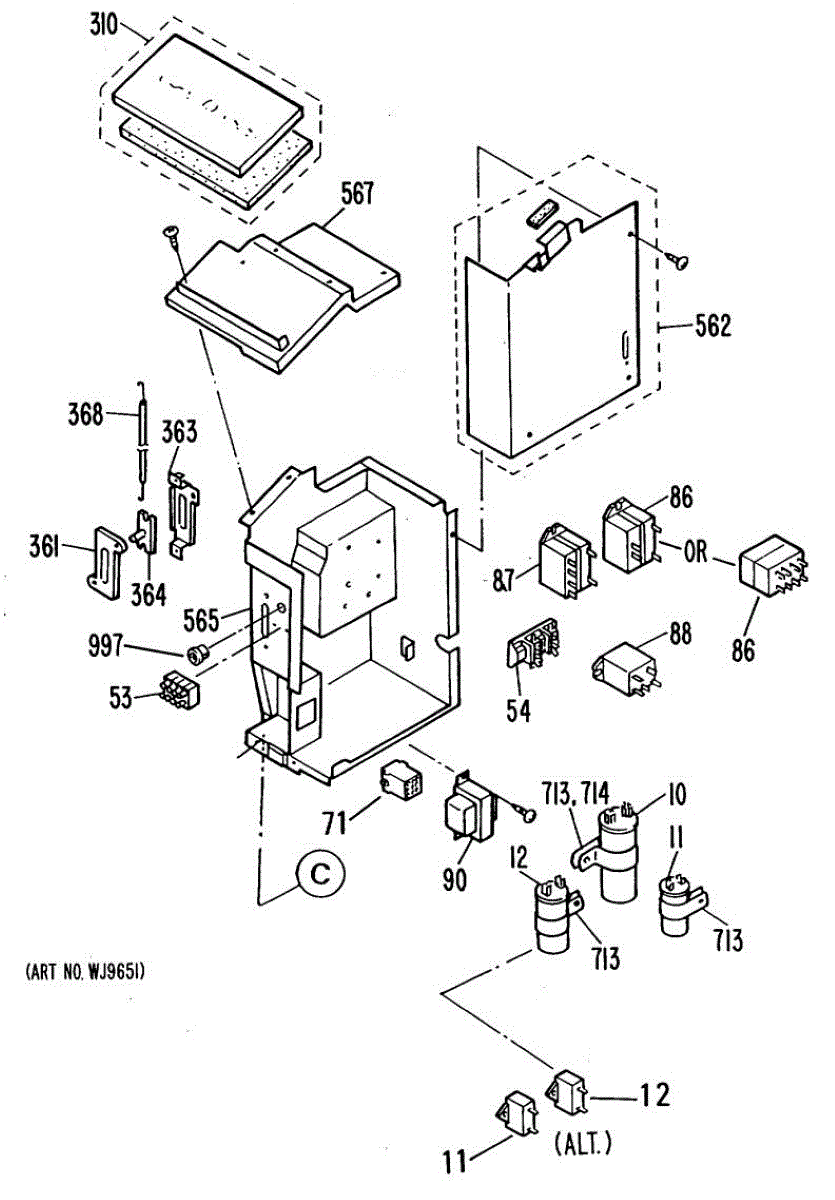

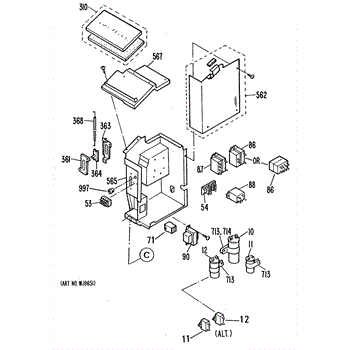

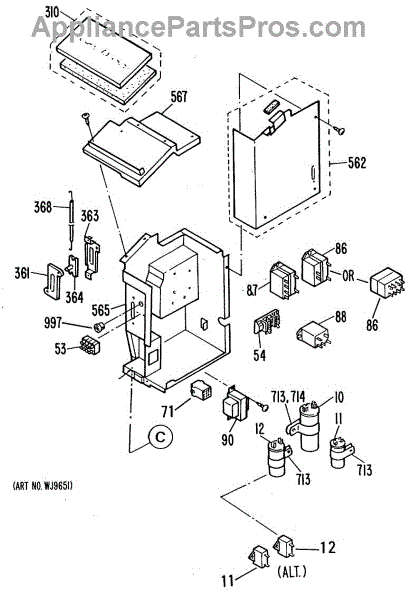

Parts for Ge AZR206EDV5: 02 - Section2 Parts

This transformer assembly steps down line voltage for the appliance's control electronics so the display, control board, and relays receive the correct operating voltage. Replacing a failing transformer restores reliable control power and consistent operation. What it does:

• Provides the required low-voltage supply for the control board and user interface
• Can cause a blank display, unresponsive controls, or intermittent power when failing
• Prevents proper relay or actuator operation if the control circuitry is underpowered
• Stops voltage-related faults that can lead to erratic appliance behavior

• One transformer assembly

• Disconnect all power before starting work to avoid shock or injury
• Verify connector orientation and secure mounting; replace with the exact part number
• Do not attempt repairs on high-voltage components without proper training and tools

This cover plate assembly replaces the control panel trim to protect internal controls and restore the appliance's appearance. It provides a finished surface that helps prevent debris and moisture from reaching switches and circuitry. What it does:

• Covers and shields the control area, protecting switches, buttons and wiring from spills and dust
• Restores the appliance's finished look when the original trim is cracked, warped or missing
• Helps maintain proper alignment of control components and button access
• Can reduce the chance of accidental contact with internal components

• Disconnect power to the appliance before starting any service.
• Installation generally requires removing the control panel trim screws and lifting the old plate out; retain fasteners for reuse.
• Handle edges carefully to avoid cuts and protect painted surfaces from scratches.
• Refer to the appliance's service manual or OEM instructions for model-specific steps.
