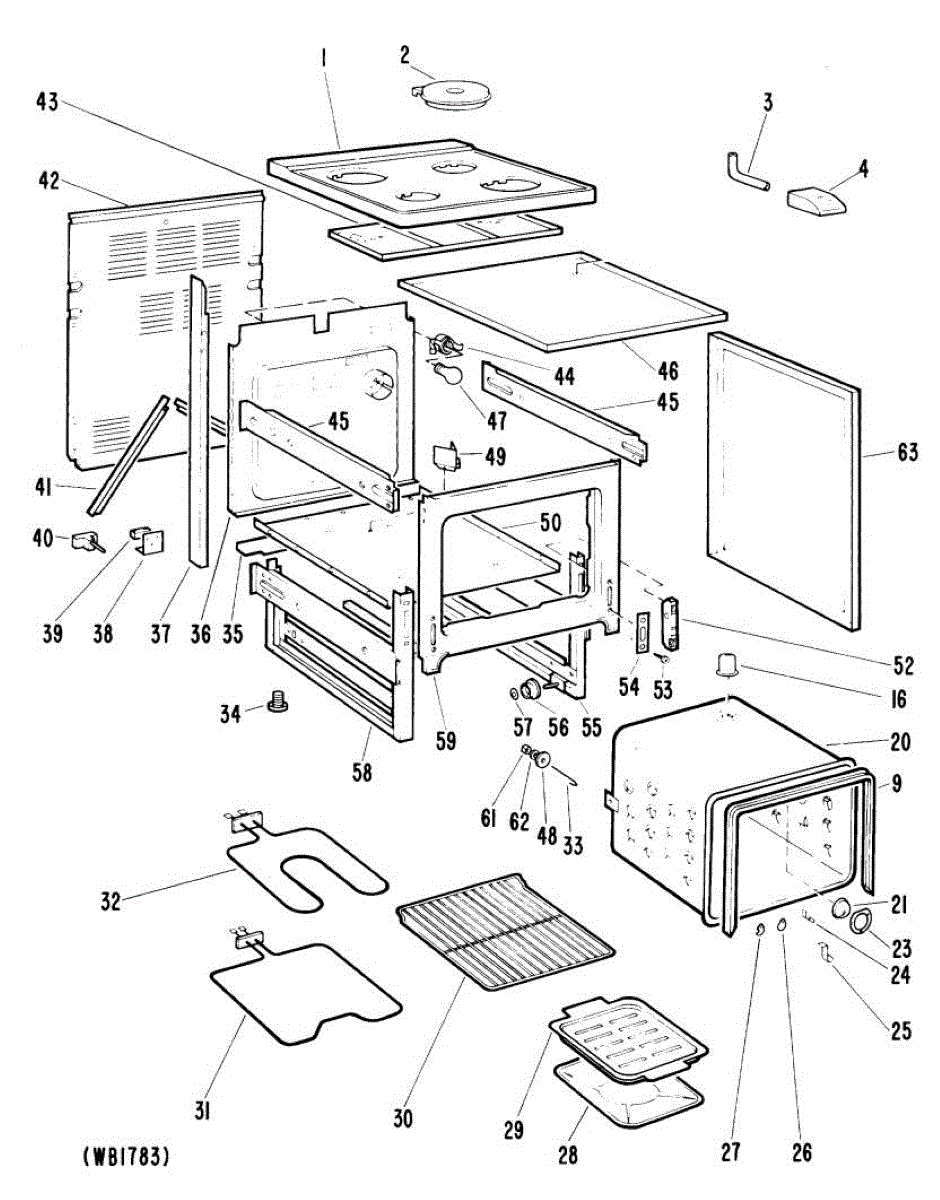

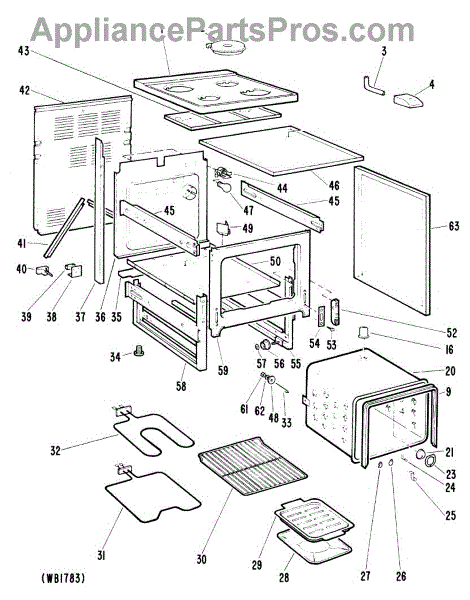

Parts for Ge JBS28GXK2: 02 - Section2 Parts

This electric heating coil provides heat for cooking on the range's large surface burner position. Located on the cooktop as one of the burner elements, replace it if the burner won't heat up, heats unevenly, or shows visible damage like cracks or burn spots.

This duct vent is the replacement exhaust outlet that channels airflow from the appliance to the ductwork, restoring proper ventilation and helping prevent backflow or leaks. Fits where the original duct vent connects to the appliance housing. What it does:

• Provides a sealed outlet for appliance exhaust to enter the home duct system
• Restores proper airflow to help reduce moisture and lint buildup in the appliance area
• Helps prevent exhaust leakage at the cabinet or housing connection
• Commonly replaced when the original vent is cracked, broken, warped, or loose

• Disconnect power and gas before inspecting or replacing vent components
• Handle edges carefully; mounting tabs and sheet metal can be sharp
• Ensure a tight fit and secure fasteners to prevent air leaks; verify duct connection after install
• If lint buildup or venting issues persist, inspect full duct run and vent hood for obstructions

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.
