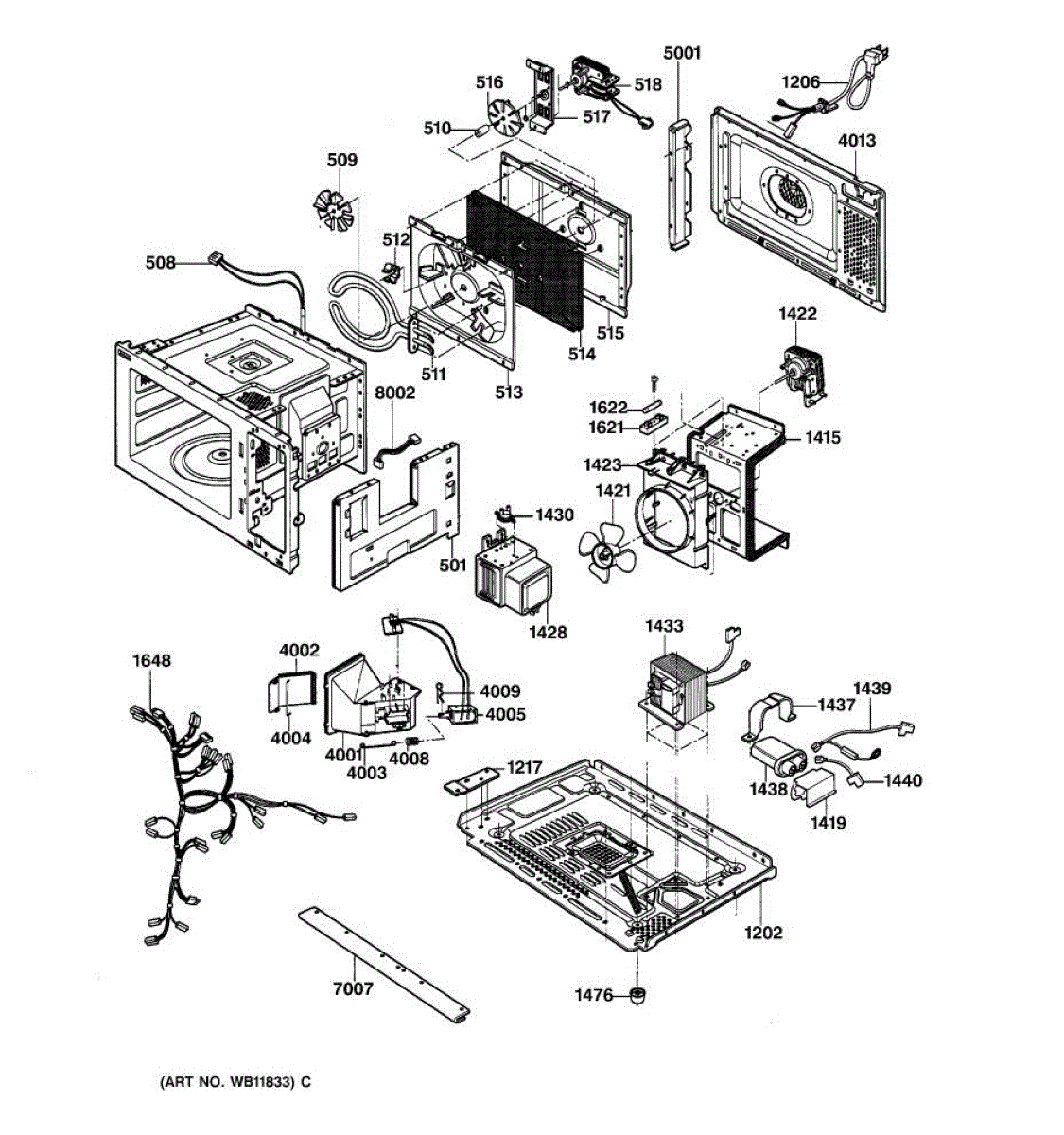

Parts for Ge JE1390GA01: 02 - Section2 Parts

This shaft ring is a small retaining clip that secures a rotating shaft in place, helping keep connected components aligned and moving smoothly. It's a simple replacement that restores proper shaft retention and reduces wobble. What it does:

• Clips into a shaft groove to hold components on the shaft
• Prevents axial movement and keeps parts from sliding out of position
• Helps reduce noisy or unstable operation caused by loose shaft components
• Commonly used where a compact, reliable retention method is required

• One shaft ring

• Inspect the shaft and groove for wear or debris before installing; clean as needed
• Use appropriate snap-ring pliers or a safe, non-marring tool to install/remove the ring
• Ensure the ring fully seats in the shaft groove and the retained part is secure before reassembly
• Disconnect power and follow appliance safety procedures before servicing

This motor bracket secures the appliance motor to the housing, keeping the motor stable and aligned for reliable operation. It's a direct-fit replacement designed to restore proper motor positioning and reduce vibration or noise. What it does:

• Holds and supports the motor assembly in the correct position
• Maintains alignment between the motor and driven components (fans, pulleys, etc.)
• Reduces motor vibration and prevents contact with adjacent parts
• Faulty or cracked brackets can cause rattling noises, excessive vibration, or motor misalignment

• Install with power disconnected; follow manufacturer instructions for access and disassembly
• Use the factory mounting hardware and torque specs where specified
• Inspect surrounding mounts and fasteners; replace any worn or damaged hardware

This replacement blower fan mounts on the blower motor to move air through the appliance's ventilation path and cool internal components. It restores proper airflow to help clear steam/smoke and reduce noise from a cracked or warped wheel. What it does:

• Couples to the blower motor to push/pull air through the exhaust or recirculation ducts
• Helps cool internal parts while venting cooking steam and odors
• Typical failure signs: scraping/rattling noises, reduced or no airflow, poor venting performance, or intermittent overheating shutdown

• 1 blower fan wheel

• Disconnect power at the breaker or unplug before servicing
• If over-the-range or built-in, support the unit and follow manufacturer procedures to access the blower housing
• Match the original wheel orientation and seat fully onto the motor shaft
• Spin by hand to ensure free rotation and clearance; reassemble and test all fan speeds

A high-voltage (H.V.) capacitor that supports the appliance's ignition/spark circuit to help produce consistent sparks where applicable. Replaces a worn or failed capacitor to restore reliable ignition performance. What it does:

• Stores and releases electrical energy for the appliance's high-voltage/ignition circuit
• Helps produce proper spark/ignition for burners or ignition modules
• Commonly linked to symptoms like weak or no spark, intermittent ignition, or failure to ignite
• Works with the appliance's high-voltage components to stabilize spark output

• Disconnect power and gas supply before servicing; high-voltage parts can be dangerous
• Discharge the capacitor before handling to avoid shock
• Replace only with the exact part number; follow the appliance service manual for correct wiring and mounting

This inline fuse holder secures a replaceable cartridge or blade-style fuse to protect appliance circuits from overloads. It provides a stable, insulated mount so a blown fuse can be safely replaced to restore power. What it does:

• Holds and secures the appliance's replaceable fuse in the circuit
• Maintains electrical contact to allow normal operation when fuse is intact
• Helps isolate circuit when a fuse has blown, preventing further damage
• Common symptom: appliance has no power or won't run due to a blown or loose fuse
• Common symptom: intermittent power or visible burn/damage at the fuse connection

• One replacement fuse holder

• Disconnect power to the appliance before checking or replacing the fuse and holder
• Inspect the fuse rating and condition; replace the fuse with the exact type and rating specified by the manufacturer
• Ensure secure, corrosion-free wire connections; replace wiring or harnesses if damaged
