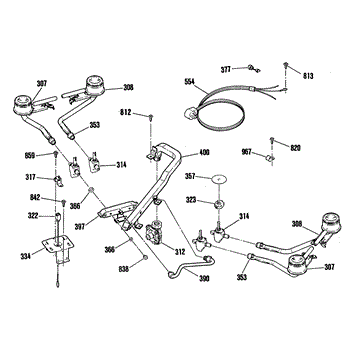

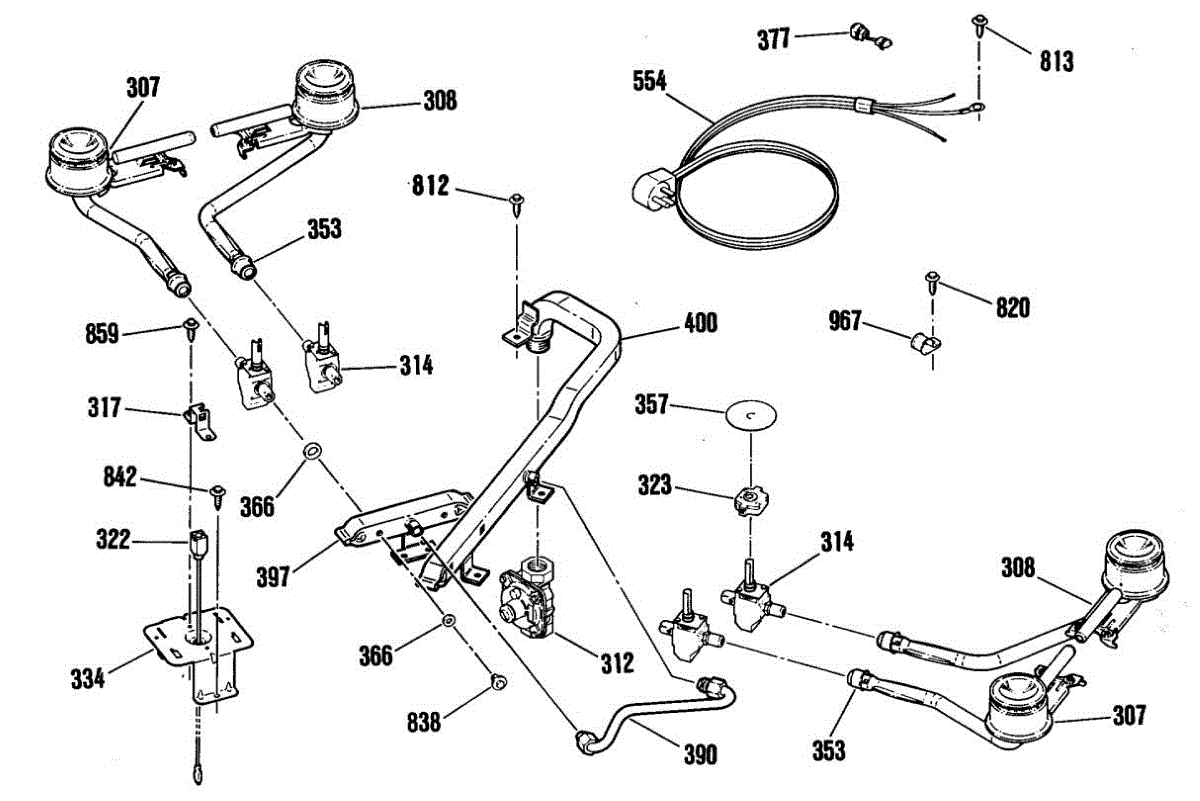

Parts for Ge JGP623ER1BC: 02 - Section2 Parts

This surface burner valve switch mounts on the gas valve stem and signals the spark module when you turn the knob. Replacing a faulty switch restores consistent clicking and reliable ignition on the affected cooktop burner. What it does:

• Mounts to the surface burner gas valve and closes the ignition circuit when the knob is turned to Lite
• Sends power to the spark module to create the clicking needed to ignite the flame
• Symptoms may include: burner won't spark, intermittent ignition, continuous clicking with knobs off, or a burner lights only when another knob is turned

• One valve switch

• Disconnect electrical power and shut off gas supply; allow the cooktop/range to cool
• Remove the knob and front panel or manifold cover to access the valve area
• Note wire positions, transfer the wires to the new switch, and secure it on the valve stem in the same orientation
• Reassemble, restore power and gas, then test burner ignition

Right angle

This flat-head 10-32 zinc screw secures panels and components on compatible appliances, providing a corrosion-resistant fastener for reliable mechanical fastening. Use when replacing stripped or missing panel screws to restore proper fit. What it does:

• Fastens control panels, trim, or small appliance components with a 10-32 thread size
• Zinc plating helps resist rust and wear in typical household environments
• Replaces missing, damaged, or stripped flat-head screws that prevent panels from seating correctly
• Fits applications that require a countersunk/flush head for a clean finish

• Use the correct 10-32 driver bit and moderate torque to avoid stripping the head or threads
• Ensure the screw is the correct length and head style for your application before tightening
• Disconnect power to the appliance and follow OEM safety instructions before servicing

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.
