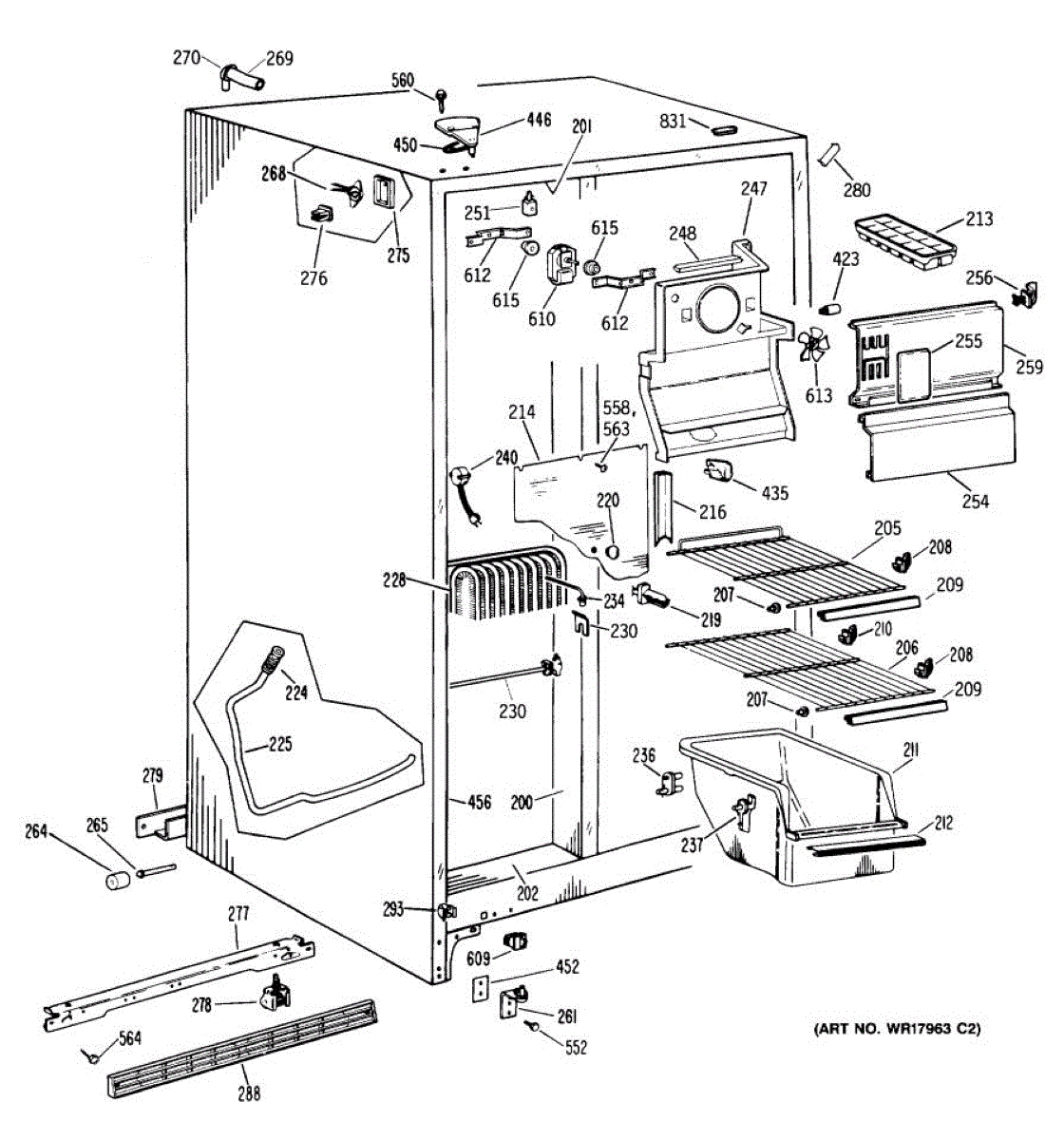

Parts for Ge TFX20DRAAD: 02 - Section2 Parts

The Ice Maker Fill Tube Grommet is an OEM part for GE refrigerators. This grommet creates a seal between the ice maker fill tube and the refrigerator, preventing leaks and ensuring that water is properly directed into the ice maker during the filling process.

Causes of a bad grommet can include regular wear and tear, damage from exposure to freezing and thawing cycles, or degradation from exposure to water and moisture.

Symptoms of a bad ice maker fill tube grommet include:

• Water leaks around the ice maker fill tube area
• Ice maker not producing ice properly
• Visible cracks or deformation in the grommet
• Water pooling inside or around the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Motor Kit is an OEM part compatible with GE refrigerators. It is a critical component responsible for circulating air and maintaining proper airflow within the refrigerator's evaporator system, ensuring efficient cooling and temperature regulation. It features a shaft that measures 3/8 of an inch and two right-side terminals. Notably, the motor no longer comes with harness wires, which must be obtained separately for installation.

Symptoms of a faulty evaporator fan motor include:

• Inconsistent or inadequate cooling in the refrigerator or freezer compartments
• Warm spots or temperature fluctuations within the refrigerator
• Excessive frost buildup or ice accumulation in the freezer

Causes of a bad evaporator fan motor can include wear and tear over time, electrical issues or short circuits, or physical damage from foreign objects or improper maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Evaporator Fan Blade is an OEM component for GE freezers and bottom-mount refrigerator designs. Located inside the freezer compartment, this fan blade spins to circulate cold air evenly throughout the storage space.

Causes of a faulty evaporator fan blade include natural fatigue from running year-round. Freezers exposed to humid environments may experience faster corrosion.

Symptoms include:

• Abnormal sounds like knocking or clunking from inside the walls
• cold spots developing in certain freezer areas
• Higher power bills from inefficient temperature regulation
• Frost or ice patches forming on evaporator coils

This part is also compatible with some brands like Hotpoint, RCA, and Kenmore.
