Parts for Lg LFX25960TT / ATICLGA: Section 2 Parts

The Water Filter is an OEM part for LG refrigerators. It is a component that ensures the purity and quality of your drinking water and ice.

The water filter is designed to effectively reduce contaminants, impurities, and odors from your water supply, providing you with clean and refreshing drinking water. It employs advanced filtration technology to remove substances such as chlorine, sediment, and other potentially harmful particles.

Causes of a faulty water filter can include regular usage over time, expiration of its filtering capacity, or clogging due to sediment buildup. These factors can result in compromised water quality, decreased flow rate, or unpleasant taste and odor.

Symptoms of a bad water filter may include:

• Decreased water flow from the dispenser
• Water with an unusual taste or odor
• Visible discoloration or particles in the water

This OEM LG part can also be used on Kenmore/Sears appliances.

Replacement ice bucket that collects and stores ice produced by the refrigerator ice maker, keeping ice contained and ready for dispensing. Molded plastic construction provides a clean catch area and helps reduce spills and freezer mess. What it does:

• Holds and stores ice produced by the ice maker so cubes are contained and accessible.
• Guides ice toward the dispenser/auger area to help ensure smooth delivery when seated correctly.
• Replaces cracked, broken or missing buckets that can cause leaks, spills or misalignment.
• Helps reduce loose ice and freezer clutter that can lead to ice jams or dispenser issues.

• Disconnect power to the refrigerator before removing or installing the ice bucket.
• Empty remaining ice and allow any frost to melt before installation to avoid blockages.
• Ensure the bucket is fully seated and aligned with the ice maker/dispenser so ice flows correctly.

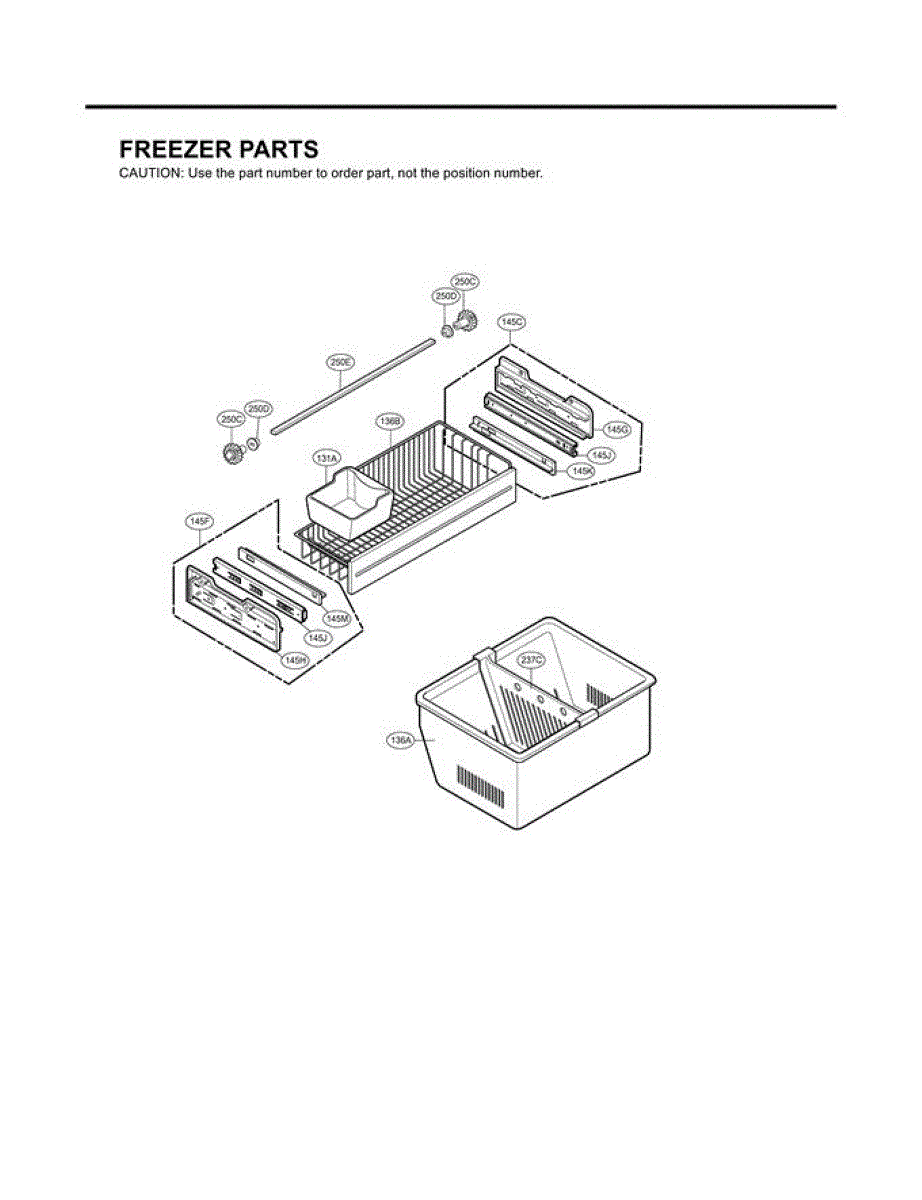

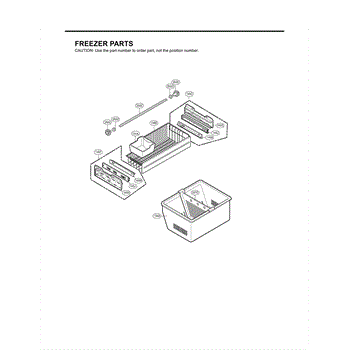

The Freezer Basket is an OEM replacement part for LG French door refrigerators. Located inside the bottom of the freezer compartment, this removable basket provides convenient storage and organization of meats, frozen vegetables, and other bulk items.

Causes may involve impact or puncture damage, excessive bending resulting in fractures, or broken retaining tabs that secure the basket in place.

Symptoms of a damaged freezer basket include:

• Food container stopping secure and sliding around inside
• Basket cracking or splitting underweight of heavy loads
• Difficulty removing or replacing the basket

This part is also compatible with Kenmore models.

This rail guide replaces a damaged or worn drawer slide to restore smooth opening and closing of the drawer assembly. It helps keep the drawer aligned and prevents binding or sudden drops during use. What it does:

• Guides the refrigerator/freezer drawer along its track for smooth travel
• Keeps the drawer aligned to prevent rubbing, sticking or uneven motion
• Supports the drawer weight to reduce sagging or accidental falls
• Replaces cracked, bent or worn rails that cause noisy or rough operation

• Disconnect power to the appliance before servicing to avoid injury
• Remove the drawer per your model's instructions to access the rail area
• Inspect mating slides and fasteners; replace any damaged clips or screws
• Use basic hand tools and reassemble carefully to ensure proper alignment

This rail connector secures a slide rail to its mounting point, keeping the rail aligned and stable so the assembly moves smoothly. Replace a cracked, worn, or missing connector to restore proper tracking and support.

• Joins the slide rail to its bracket or panel to maintain alignment and support
• Helps the rail travel smoothly without binding or coming off track
• Replaces broken, warped, or missing connectors that allow rails to loosen
• Typical signs of failure: rail separates, wobbles, sags, or won't stay engaged

• Disconnect power to the appliance; remove items to access the rail safely
• Remove the drawer/shelf and rail as needed to reach the connector
• Release locking tabs or fasteners, transfer the rail to the new connector, and seat it fully
• Reinstall components and test for smooth travel; wear gloves to protect hands from sharp edges

This connector joins two sections of the refrigerator's water tubing to create a secure, leak-resistant seal. Replace a cracked or loose connector to restore proper water flow to the dispenser and ice maker.

• Provides a sealed union between two water tubes in the appliance's water system
• Helps prevent air and water leaks that can impact dispenser and ice maker performance
• Typical failure signs include drips or puddles near the connection, visible seepage, or moisture alerts
• Also causes low/no dispenser flow or small or hollow ice cubes

• Disconnect power and shut off the water supply; dispense water to relieve line pressure
• Prepare tubing with a clean, square cut; insert each tube fully into the connector until seated, then pull-test to retention
• Restore water and check all joints for leaks; purge air by dispensing water before normal use

The Drawer Guide is an OEM part for LG refrigerators. This part allows the smooth and effortless operation of the refrigerator's drawers, ensuring they glide in and out with ease.

Causes of a bad drawer guide can be attributed to wear and tear over time, misalignment during installation, or damage from excessive force or improper use of the drawers.

Symptoms of a bad drawer guide include:

• Difficulty opening or closing the drawers
• Drawers getting stuck or not sliding properly
• Excessive friction or resistance when operating the drawers
• Drawers becoming misaligned or tilted
• Unusual noises or grinding sounds when using the drawers

This OEM LG part is also compatible with some Kenmore models.

The Cap Cover is an OEM part for LG refrigerators. This cover is designed to protect and secure various components within the refrigerator, such as the water filter or other internal mechanisms. Its role is to ensure that these components are shielded from debris, moisture, and potential damage, maintaining the overall efficiency and cleanliness of the appliance.

Causes of a bad cap cover can include wear and tear over time, cracks or breaks from accidental impacts, or warping due to exposure to temperature fluctuations. Misalignment or improper installation can also contribute to the cap cover becoming damaged or ineffective.

Symptoms of a bad cap cover include:

• Loose or missing cover
• Visible cracks or damage on the cover
• Debris or moisture accumulating in areas meant to be protected
• Misalignment or difficulty in securing the cover properly

This OEM LG part is also compatible with Sears/Kenmore.

The Freezer Drawer Gear is an OEM part for LG refrigerators. It facilitates the smooth operation of the freezer drawer, allowing it to slide in and out effortlessly.

You should replace this gear if it becomes worn or damaged. Causes of a bad freezer drawer gear can include regular wear and tear, damage from overloading the drawer, or mechanical issues due to improper alignment or installation.

Symptoms of a bad freezer drawer gear include:

• Difficulty in opening or closing the freezer drawer
• The drawer not staying aligned or level
• Unusual noises when operating the drawer

This OEM LG part is also compatible with Sears/Kenmore.
