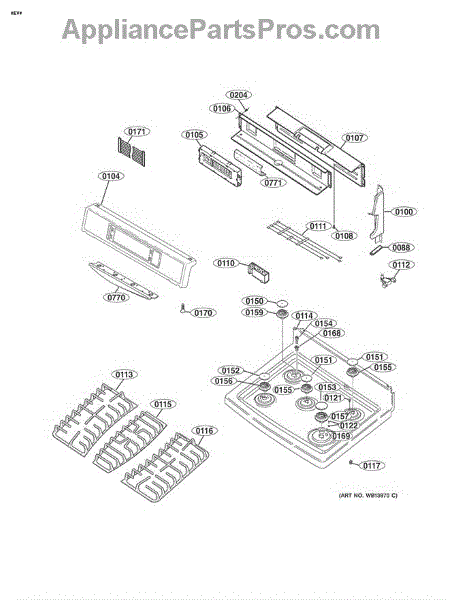

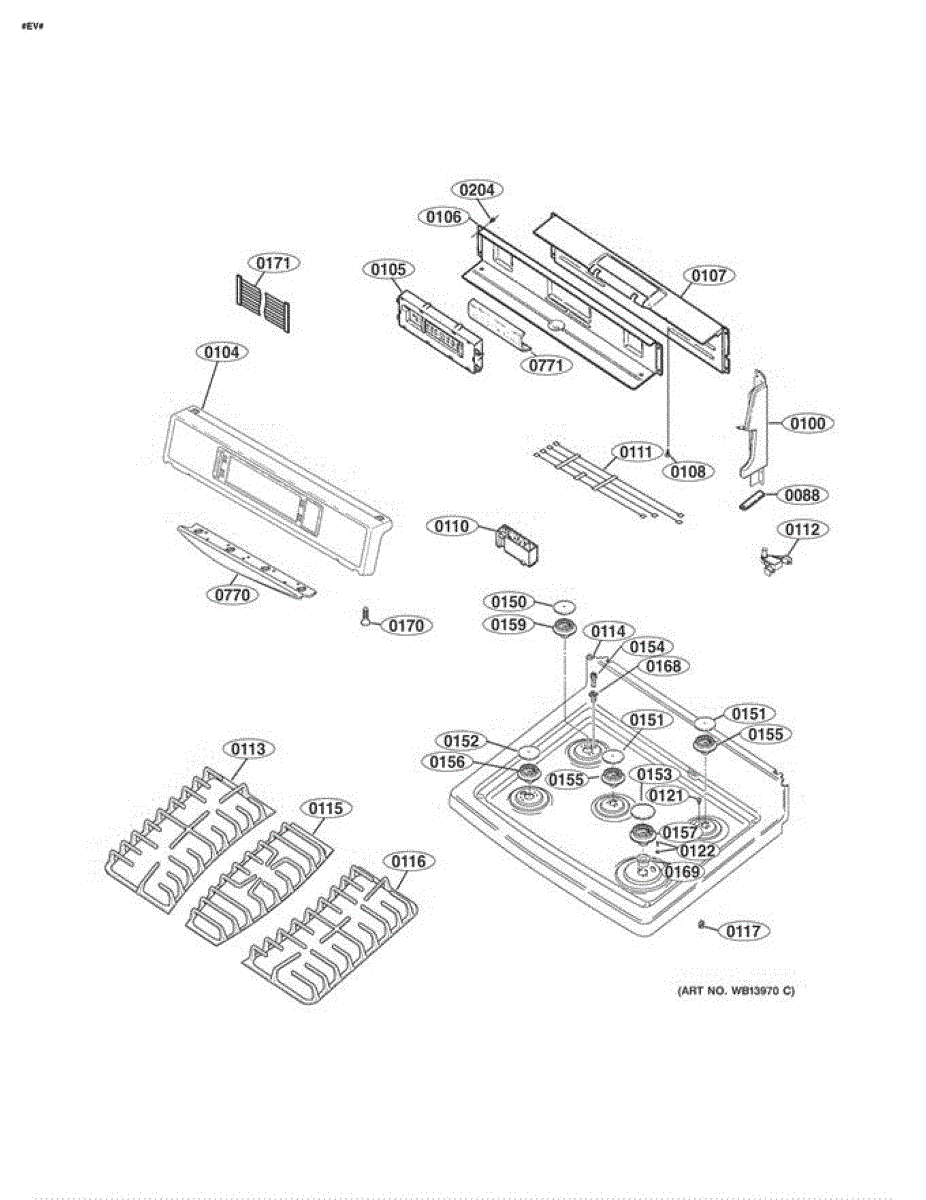

Parts for Lg LRG30357ST / AS1EJIT: Section 2 Parts

Replacement upper back cover panel for your range. Protects internal components and completes the exterior finish. Order a new cover if cracked or damaged.

If your range burners won't ignite or clicking continues after lighting, the spark module may be faulty. This repair typically takes 30-45 minutes.

Replace a damaged or frayed wire harness in your range. This internal wiring component connects electrical systems. Order a new harness if yours is worn or broken.

Left Side Grate

Middle grate for range cooktop. Replaces cracked, chipped, or discolored grates. Supports cookware over center burner. Stainless steel construction.

Right Side Grate

Replacement mounting screws for range installation. Secures components and panels. Order new hardware if original screws are stripped, missing, or lost.

Replacement mounting screw for range installation and assembly. Use this hardware to secure panels, brackets, or components that have become loose or missing.

Covers the burner head on your range cooktop. Replace if your existing cap is cracked, chipped, discolored, or missing to restore proper seating.

Covers and protects the burner head on gas range cooktops. Replace if your cap is cracked, chipped, discolored, or missing to restore proper flame.

This large, dull-finish burner cap replaces the top cover for a cooktop's large burner, restoring proper heat distribution and stable ignition. It matches OEM shape and finish to keep your burner working and looking right. What it does:

• Covers the large burner head to evenly distribute flame/heat across cookware
• Protects the burner head and ports from spills and debris that can affect ignition
• Helps maintain consistent flame pattern for better cooking performance
• Useful when the existing cap is warped, cracked, or cosmetically worn

• Ensure the cooktop and burner are completely cool before replacing the cap
• Remove old cap, clean burner head and surrounding area of debris, then set new cap seated flat on the burner
• No special tools required; verify proper seating before lighting burner

Replaces a cracked, chipped, or worn gas range burner cap and base. Restores proper flame coverage on your cooktop. Fits 15K BTU burner positions.

Replacement burner head for gas range cooktops. Directs and shapes the flame for even heating. Replace if cracked, corroded, or missing to restore proper flame.

Replacement burner cap for gas range cooktops. Sits atop the burner head to distribute flame evenly. Replace if cracked, chipped, or discolored.

The Vision Burner XL is a replacement gas range burner assembly designed to restore proper heat from the front-right/XL burner on compatible LG ranges. Replacing a damaged burner helps return even flame and reliable cooking performance. What it does:

• Replaces a worn, cracked, or damaged XL burner assembly to restore proper flame and heating
• Provides the correct burner port alignment for even heat distribution across pots and pans
• Commonly used when the burner won't light, has uneven flames, or produces a weak/irregular flame
• Matches OEM fit so the burner seats correctly and connects to the existing valve and igniter

• One Vision Burner XL assembly

• Disconnect power and shut off the gas supply before starting any work
• Handle with care to avoid bending ports or damaging the igniter/connector

This medium replacement burner restores proper surface heating on compatible ranges. It fits the cooktop's medium heating location and helps recover even heat distribution for everyday cooking. What it does:

• Replaces a damaged or worn medium cooktop burner to restore normal heating
• Helps eliminate weak or inconsistent heating at the medium element location
• Replaces burners with visible cracks, warping, or electrical faults that affect performance
• Works as a direct-fit service part when your cooktop diagram lists the medium (9500) burner

• One medium burner (9500) element

• Disconnect power to the appliance (unplug or shut off breaker) before installing
• Allow the cooktop to cool completely and handle ceramic/glass surfaces with care
• Follow the range's service manual or OEM diagram for correct fit and wiring

This small metal clip secures the spark electrode in place near the gas burner on a range. The electrode generates the spark that ignites the gas, and the clip ensures it stays properly positioned for reliable ignition. Replace this clip if the electrode is loose, misaligned, or if the burner fails to ignite consistently.

This is a venturi nozzle assembly designed for use with LP (propane) gas on a range surface burner. It mixes the proper amount of air with fuel gas before it reaches the burner for efficient combustion. Replace this part if you experience uneven flames, yellow or sooty flames, or if converting your range from natural gas to LP.

A replacement mounting screw used to secure components and panels in compatible LG appliances. Restores proper fastening to reduce rattling and loose parts for safer, quieter operation. What it does:

• Secures panels, brackets, or small components in place
• Prevents vibration-related noise caused by loose fasteners
• Helps maintain proper alignment of removable parts
• Useful when an original screw is missing, damaged, or stripped

• Disconnect power and unplug the appliance before servicing
• Use the correct screwdriver and avoid overtightening to prevent stripping
• Keep small parts away from children and pets
