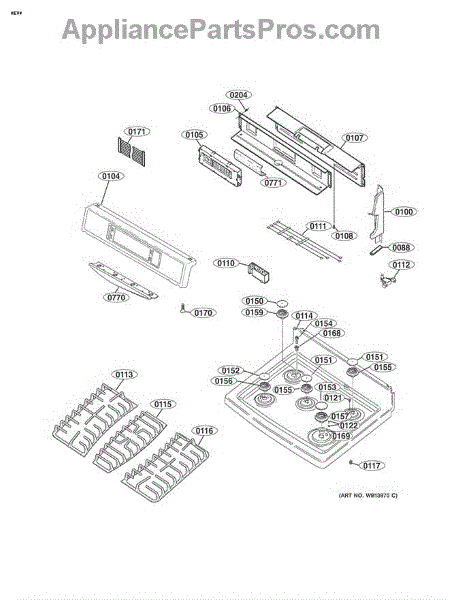

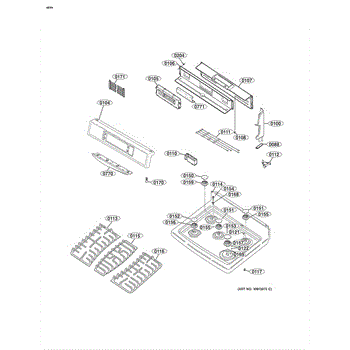

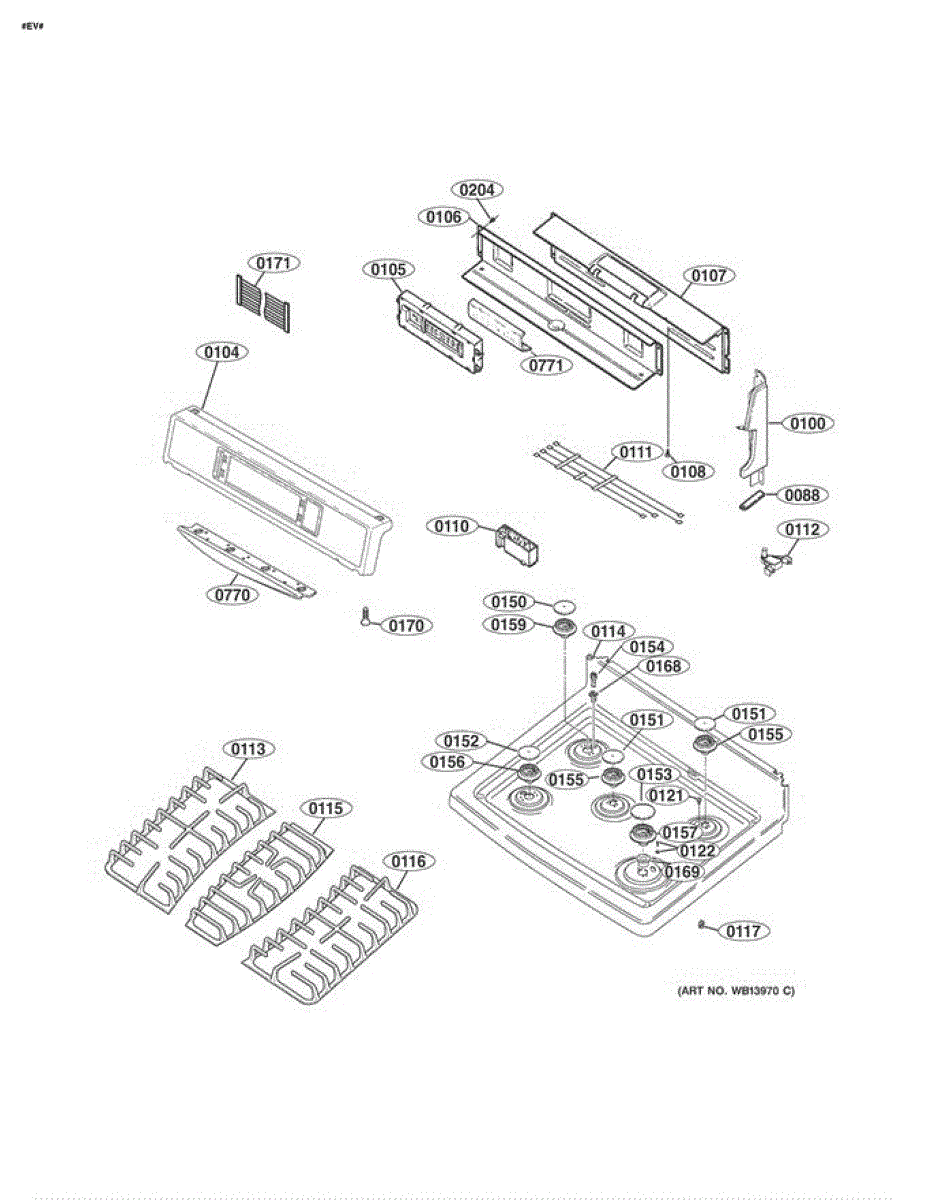

Parts for Lg LRG30855ST / ASTELGA: Section 2 Parts

Left Side Grate

Middle Grate

Right Side Grate

This medium burner cap is a replaceable cooktop part that covers the burner head to protect components and help promote even heat across cookware. Restores proper seating and appearance on worn or damaged burners. What it does:

• Covers the burner head to protect the internal burner from spills and debris
• Helps promote even heat distribution from the burner to cookware
• Can correct uneven flame or heating caused by a warped or damaged cap
• Restores the cooktop's finished appearance when the original cap is chipped or discolored

• Ensure the cooktop is completely cool and the appliance power/gas is off before handling
• Remove old cap, clean burner area of debris, then seat replacement cap firmly in place
• No tools required for most installs; align cap so it sits flush and stable

This small burner cap covers and protects the burner head on gas cooktops, helping maintain an even flame and reliable ignition. It replaces a damaged or missing cap so burners heat and light as intended. What it does:

• Covers the burner head to protect ports from spills and debris
• Helps direct and stabilize the gas flame for more even heating
• Supports consistent ignition by providing correct burner geometry
• Common symptom: burner flame is uneven, weak, or won't light reliably

• Turn off the cooktop and let all parts fully cool before servicing
• Remove and clean the burner head and surrounding area before fitting the new cap
• Set the cap onto the burner head so it sits flat and snug; do not force or pry
• If ignition issues persist after replacement, inspect burner ports and igniter for obstruction or damage

This large, dull-finish burner cap replaces the top cover for a cooktop's large burner, restoring proper heat distribution and stable ignition. It matches OEM shape and finish to keep your burner working and looking right. What it does:

• Covers the large burner head to evenly distribute flame/heat across cookware
• Protects the burner head and ports from spills and debris that can affect ignition
• Helps maintain consistent flame pattern for better cooking performance
• Useful when the existing cap is warped, cracked, or cosmetically worn

• Ensure the cooktop and burner are completely cool before replacing the cap
• Remove old cap, clean burner head and surrounding area of debris, then set new cap seated flat on the burner
• No special tools required; verify proper seating before lighting burner

This cap burner assembly replaces a worn or damaged gas burner cap and base to restore even flame coverage and reliable surface cooking heat. It fits compatible gas cooktop burners and helps improve ignition and flame stability. What it does:

• Provides the cap and burner base needed for a single 15K gas burner to contain and direct the flame
• Helps restore consistent heating across cookware and improves ignition performance when the original burner is damaged
• Addresses symptoms such as uneven flame, poor ignition, or visible burner damage
• Matches OEM burner geometry to maintain proper airflow and flame pattern

• One cap burner assembly (15K) — cap and burner base as shown

• Turn off gas supply and disconnect power to the appliance before servicing
• Replace only when the appliance is cool; follow the appliance manufacturer's disassembly instructions
• Verify correct burner alignment and secure fit before restoring gas and power
• If you smell gas or detect leaks after installation, shut off gas immediately.

This burner head is the gas-fired surface component that supports and directs the burner flame for cooking. It restores proper flame pattern for safer, more even heating on compatible gas ranges. What it does:

• Directs and shapes the gas flame so heat is applied evenly to cookware
• Helps maintain stable ignition and consistent burner operation
• Can reduce uneven cooking, weak flames, or burner flame distortion
• Works with the burner cap and base to form the complete surface burner assembly

• Turn off the gas supply and unplug the appliance before servicing
• Remove burner grate and cap, then lift the old burner head straight up to remove
• Seat the new burner head fully on the burner base and replace the cap and grate
• After reinstalling, check ignition and flame; if you detect gas odor or leaking, stop.

The Vision Burner XL is a replacement gas range burner assembly designed to restore proper heat from the front-right/XL burner on compatible LG ranges. Replacing a damaged burner helps return even flame and reliable cooking performance. What it does:

• Replaces a worn, cracked, or damaged XL burner assembly to restore proper flame and heating
• Provides the correct burner port alignment for even heat distribution across pots and pans
• Commonly used when the burner won't light, has uneven flames, or produces a weak/irregular flame
• Matches OEM fit so the burner seats correctly and connects to the existing valve and igniter

• One Vision Burner XL assembly

• Disconnect power and shut off the gas supply before starting any work
• Handle with care to avoid bending ports or damaging the igniter/connector

This medium replacement burner restores proper surface heating on compatible ranges. It fits the cooktop's medium heating location and helps recover even heat distribution for everyday cooking. What it does:

• Replaces a damaged or worn medium cooktop burner to restore normal heating
• Helps eliminate weak or inconsistent heating at the medium element location
• Replaces burners with visible cracks, warping, or electrical faults that affect performance
• Works as a direct-fit service part when your cooktop diagram lists the medium (9500) burner

• One medium burner (9500) element

• Disconnect power to the appliance (unplug or shut off breaker) before installing
• Allow the cooktop to cool completely and handle ceramic/glass surfaces with care
• Follow the range's service manual or OEM diagram for correct fit and wiring

A replacement mounting screw used to secure components and panels in compatible LG appliances. Restores proper fastening to reduce rattling and loose parts for safer, quieter operation. What it does:

• Secures panels, brackets, or small components in place
• Prevents vibration-related noise caused by loose fasteners
• Helps maintain proper alignment of removable parts
• Useful when an original screw is missing, damaged, or stripped

• Disconnect power and unplug the appliance before servicing
• Use the correct screwdriver and avoid overtightening to prevent stripping
• Keep small parts away from children and pets
