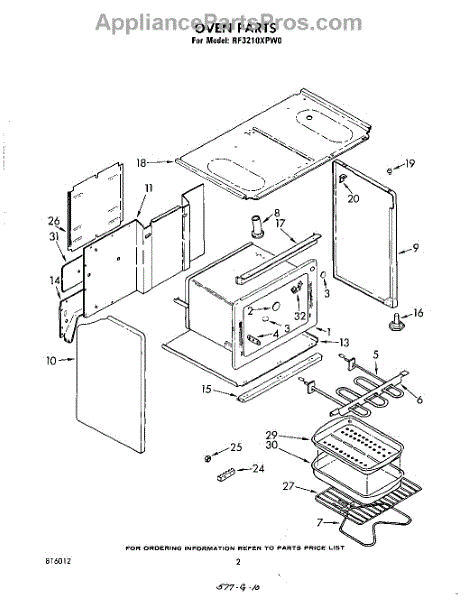

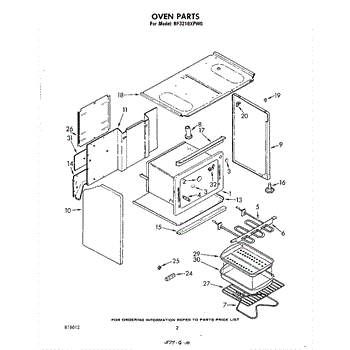

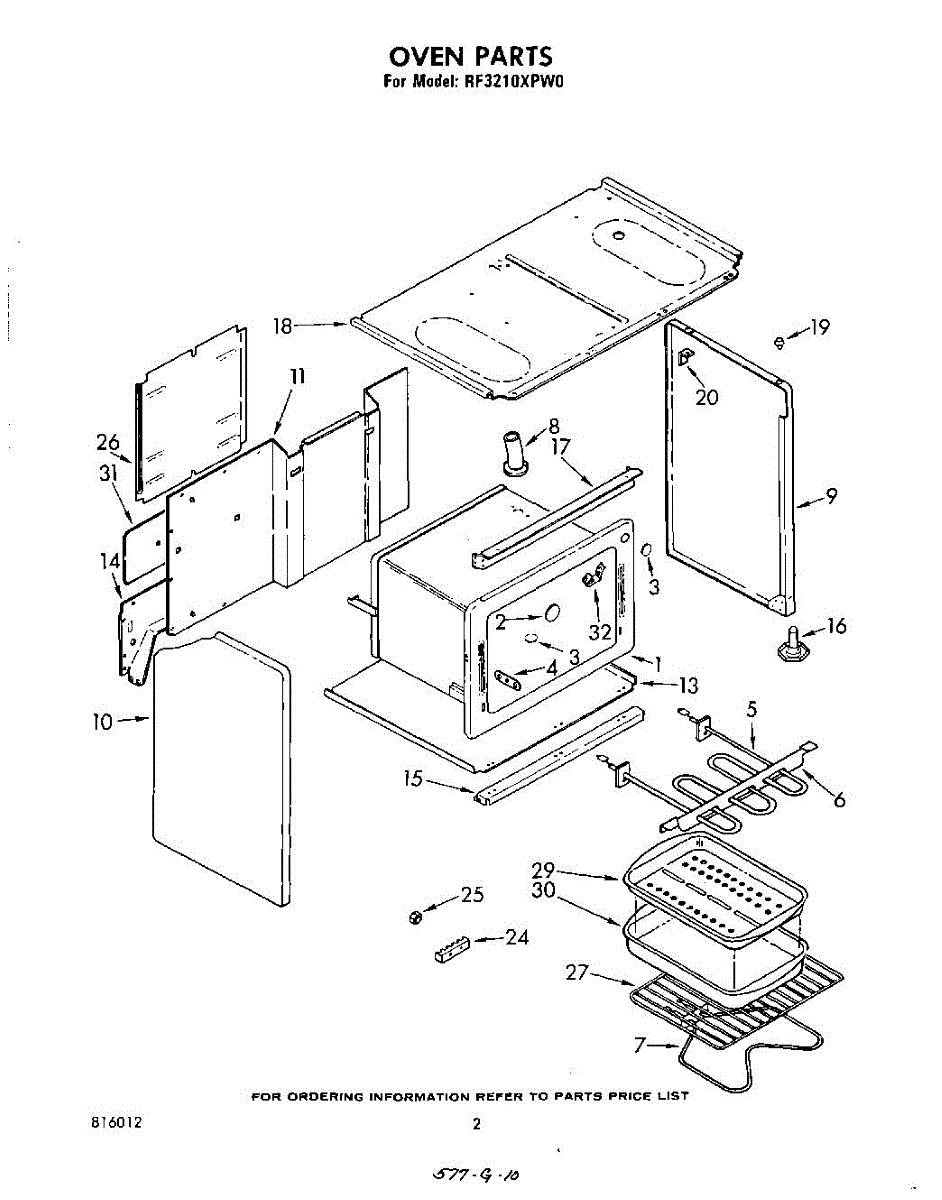

Parts for Whirlpool RF3210XPW0: 02 - Section Parts

Size: 10-32 x 1/2 inch.

Size: 10-32 x 1/2 inch.

Size: 10-32 x 1/2 inch.

Size: 10-32 x 1/2 inch.

Size: 10-32 x 1/2 inch.

Made by Whirlpool. Size: Width 19-1/4"; Length 15"; Mount bracket to terminals 3-3/4"; Space between terminals 13".

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The thermostat bulb clip is an OEM component specifically designed for Whirlpool drop-in electric ranges, securely fastening the thermostat sensor bulb. This clip features corrosion-resistant spring coils and precision tips.

Symptoms of a bad thermostat bulb clip include:

• Dangling thermostat bulb
• Temperatures inside oven might be incorrect because sensor bulb is not mounted correctly.

Causes of failure involve metal fatigue weakening the thermostat bulb clip over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the thermostat bulb.

Replace yours today with this genuine OEM Whirlpool clip. Compatible with Jenn-Air, GE, and select Kenmore appliances, reinforced coils maintain constant tension assuring safety. Reliable glass retention enhances interior illumination for tasks.
