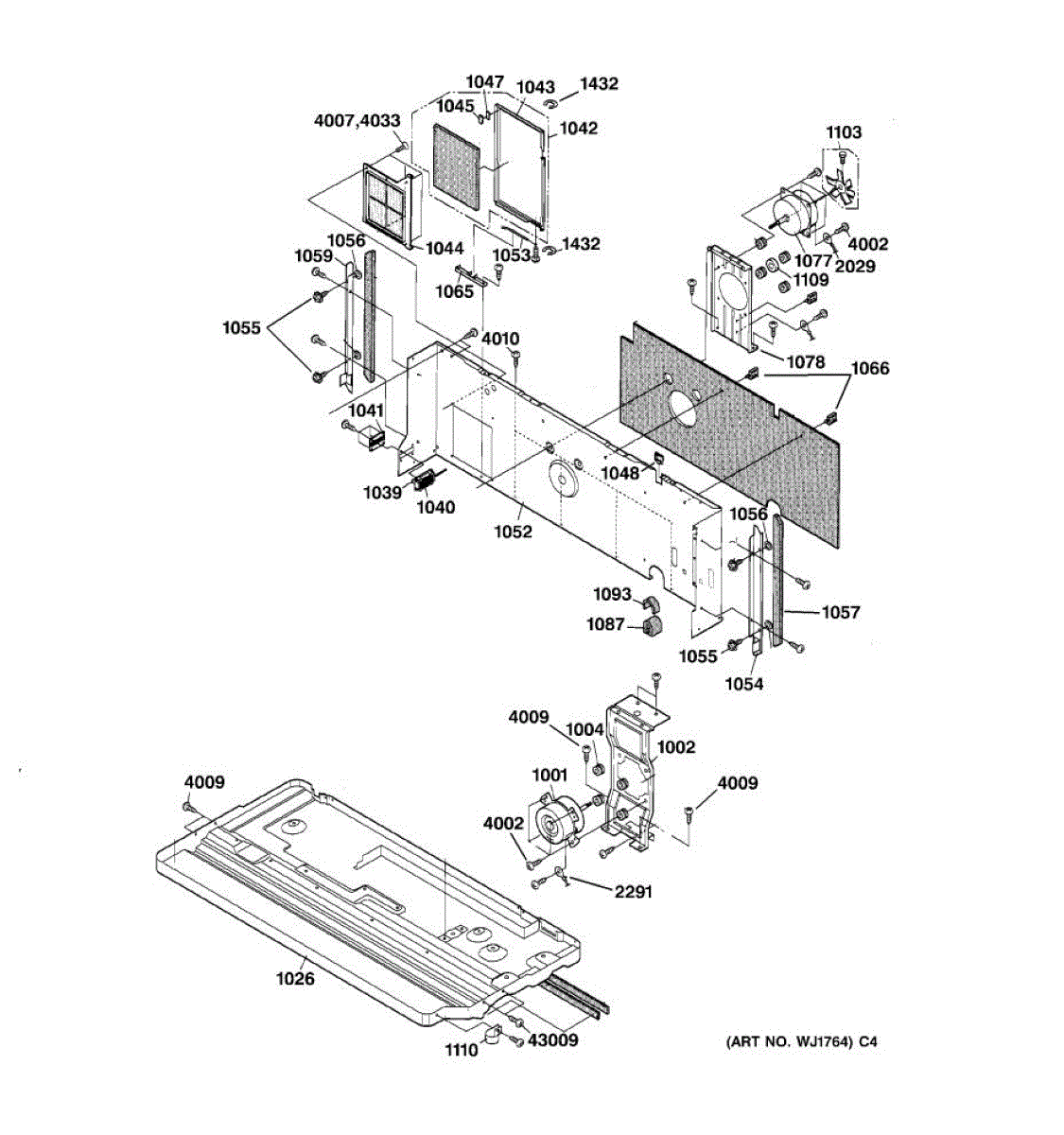

Parts for Ge AZ22E09D2CM1: 03 - Section3 Parts

Rubber cushion that mounts between the air conditioner motor and housing to reduce vibration and noise. Replace if cracked, compressed, or missing.

This base pan assembly serves as the lower cabinet support for the appliance, providing a stable platform for internal components and helping contain minor leaks or debris. It restores proper fit and alignment at the unit's base. What it does:

• Replaces a damaged or corroded base pan to restore structural support under the appliance
• Helps keep internal components mounted securely and aligned
• Contains small drips or debris that collect at the appliance floor area
• Reduces vibration transfer from the cabinet to the floor when properly installed

• High-level replacement only; follow OEM service manual for step-by-step removal and reassembly
• Disconnect power (and water, if applicable) before beginning work
• Inspect surrounding seals, fasteners, and mounting hardware; replace any worn parts
• Use appropriate tools and work on a stable surface

Special mounting screw for air conditioner assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during maintenance.

Rubber washer for air conditioner unit assembly. Installs between components to create seal and reduce vibration. Replace if cracked, worn, or missing.

This wire fixing band is a small retainer clamp that secures wiring harnesses and individual wires to appliance chassis to prevent rubbing, pinching, or accidental disconnection. It helps protect wiring from damage and reduces electrical faults. What it does:

• Holds wiring harnesses and loose wires in place to prevent contact with hot or moving parts
• Reduces wear from vibration and movement that can cause frayed insulation or shorts
• Helps maintain safe routing of wires to avoid pinch points and strain on connectors
• Commonly used where a simple clipped band or strap is needed to fasten wires to sheet metal

• Inspect surrounding wiring and connectors before installation; replace damaged wires or insulation
• Secure the band to the designated chassis hole or stud without over-tightening to avoid crushing wires
• Disconnect power before accessing wiring and follow all appliance safety procedures

Replacement wire holder for air conditioners. Secures and organizes internal wiring. Order a new holder if yours is cracked, broken, or missing.

Special mounting screw for air conditioner assembly. Replace if screw is stripped, missing, or damaged during maintenance or installation work.

Replacement mounting screw for air conditioner units. Secures cabinet panels and internal components. Order if your original screw is missing or stripped.
