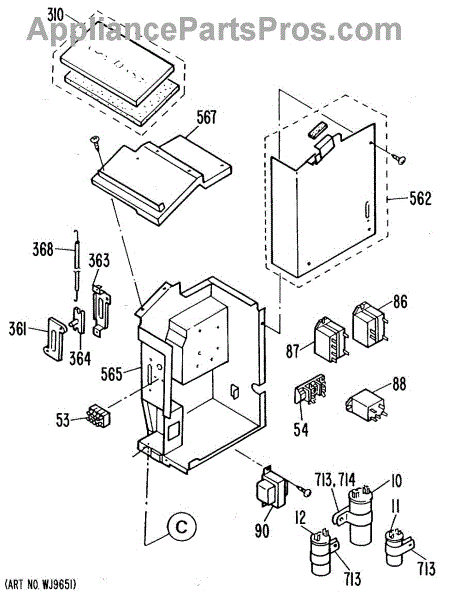

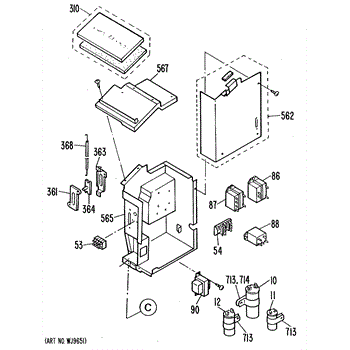

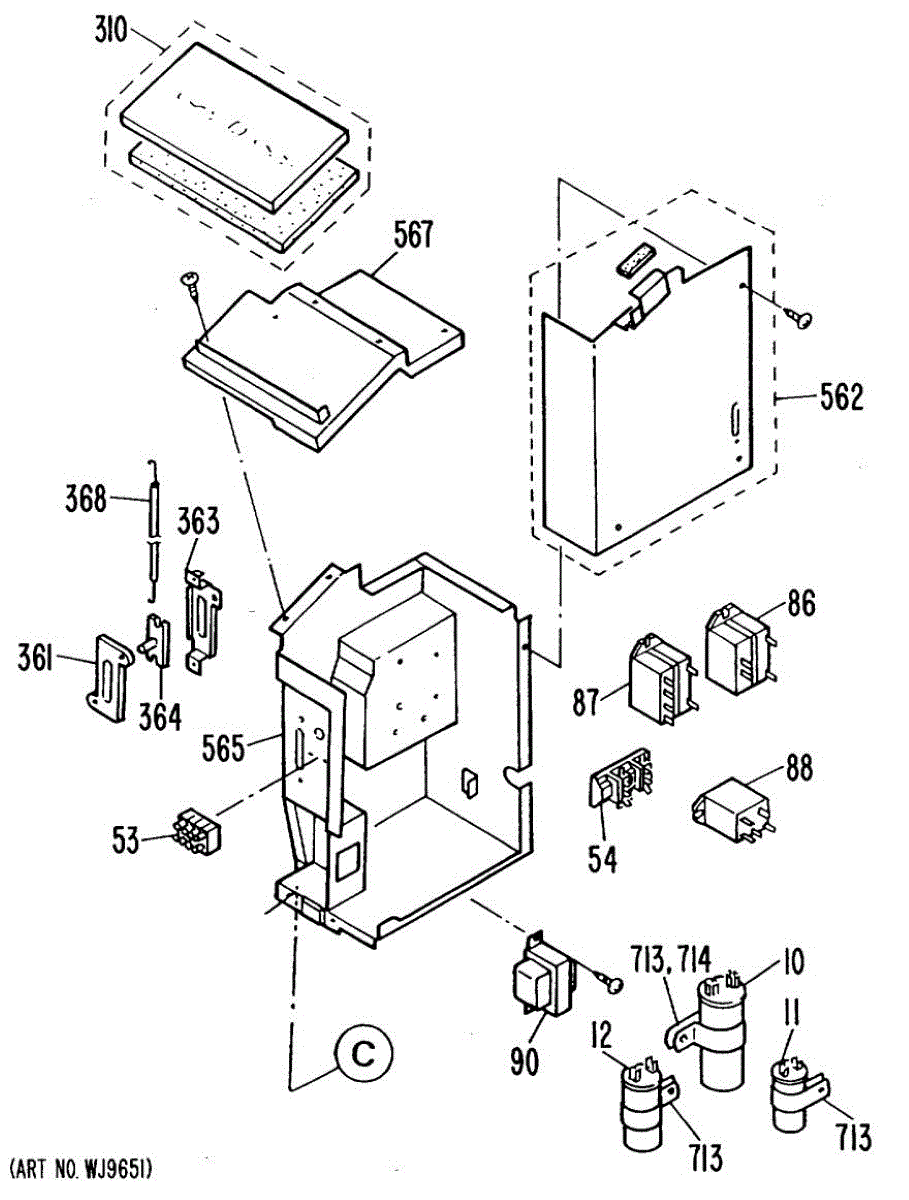

Parts for Ge AZR206DBV1: 03 - Section3 Parts

This control transformer assembly provides the low-voltage power needed for the appliance's control circuitry, restoring reliable operation of timers, displays, and relays when the transformer has failed. What it does:

• Steps down mains voltage to the appliance's required low-voltage control supply.
• Restores power to control boards, clocks, displays and related low-voltage components.
• Common symptom: control panel or display will be dark or intermittent when the transformer is faulty.
• Common symptom: relays, valves or timed cycles fail to activate or operate inconsistently.

• Disconnect all power at the breaker or unplug the appliance before beginning service.
• Note wire locations and take photos before removing wiring; reattach wires to the same terminals.
• If the transformer is line-voltage connected, use appropriate insulated tools and follow lockout/tagout practices.

This cover plate assembly replaces the control panel trim to protect internal controls and restore the appliance's appearance. It provides a finished surface that helps prevent debris and moisture from reaching switches and circuitry. What it does:

• Covers and shields the control area, protecting switches, buttons and wiring from spills and dust
• Restores the appliance's finished look when the original trim is cracked, warped or missing
• Helps maintain proper alignment of control components and button access
• Can reduce the chance of accidental contact with internal components

• Disconnect power to the appliance before starting any service.
• Installation generally requires removing the control panel trim screws and lifting the old plate out; retain fasteners for reuse.
• Handle edges carefully to avoid cuts and protect painted surfaces from scratches.
• Refer to the appliance's service manual or OEM instructions for model-specific steps.
