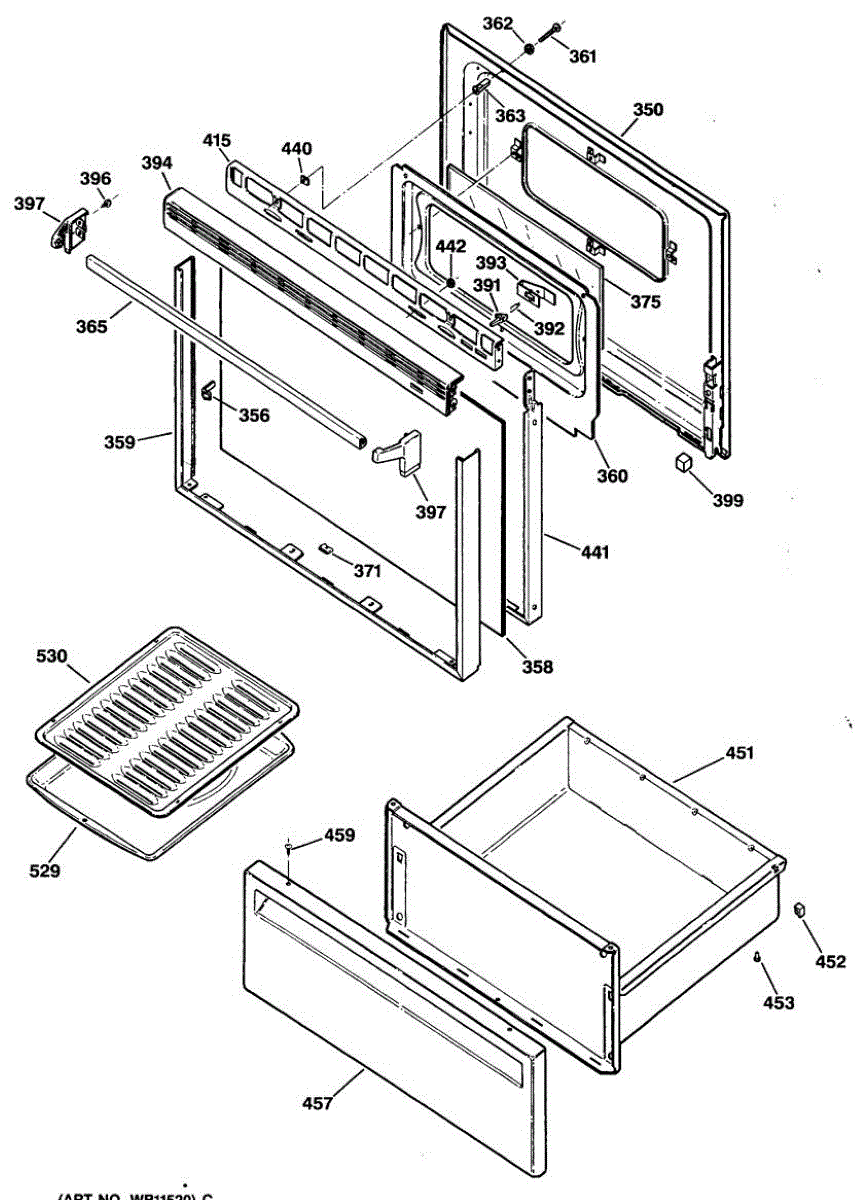

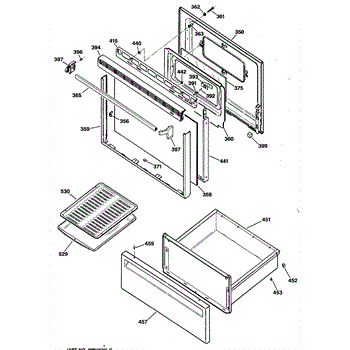

Parts for Ge JBC17GXR2: 03 - Section3 Parts

This inner oven door liner replaces a damaged or warped oven door interior to restore clean appearance and proper heat containment. Designed to fit the oven door assembly and support the inner glass panel. What it does:

• Replaces a cracked, dented, or heat-damaged oven door liner that can compromise appearance or sealing
• Provides a stable mounting surface for the inner glass and related door components
• Helps maintain proper heat containment and even cooking when the door assembly is sound
• Prevents metal edges from rubbing against the glass or insulation

• Disconnect power to the appliance before beginning work to avoid shock or injury
• Handle inner glass and metal edges with care; wear gloves and eye protection
• Removal typically requires detaching the oven door and separating door panels—follow the oven's service manual

Includes 12 screws.

Includes 12 washers.

This mounting spacer keeps exterior panels and components properly separated for correct alignment and fit, helping prevent rubbing and vibration. It's a small, durable replacement used where original spacers have worn or been lost. What it does:

• Maintains correct gap and alignment between panels or assembly parts
• Prevents rubbing, noise, and premature wear from metal-to-metal contact
• Helps secure components in the intended position during operation
• Restores factory spacing after repair or disassembly

• Disconnect power or unplug appliance before servicing
• Replace only with the same spacer location and orientation as the original
• Require removal of trim or panels; keep fasteners and note placement
• If damaged hardware or fasteners are found, replace them to ensure secure fit

Replace the top door trim on your electric range. This cosmetic trim piece covers the upper door edge and may need replacement if cracked or damaged.

Endcap Kit - Contains (1) left hand (1) right hand endcap.

Mounting bracket secures the cooktop or range top to the cabinet frame. Replace if bracket is bent, cracked, or missing to properly support the appliance.

Mounting screw secures panels, trim, and internal components in ranges and ovens. Replace if missing, stripped, or damaged to restore proper fit.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.
