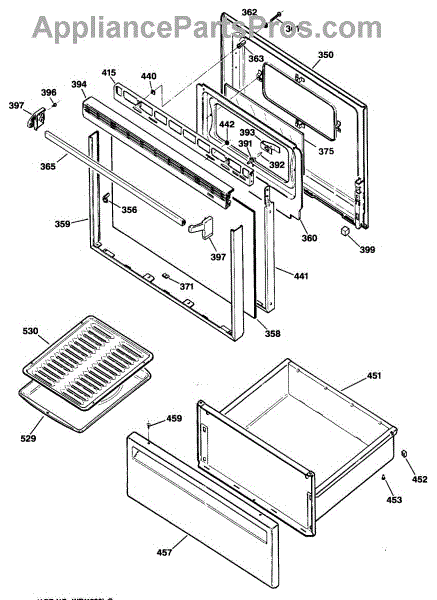

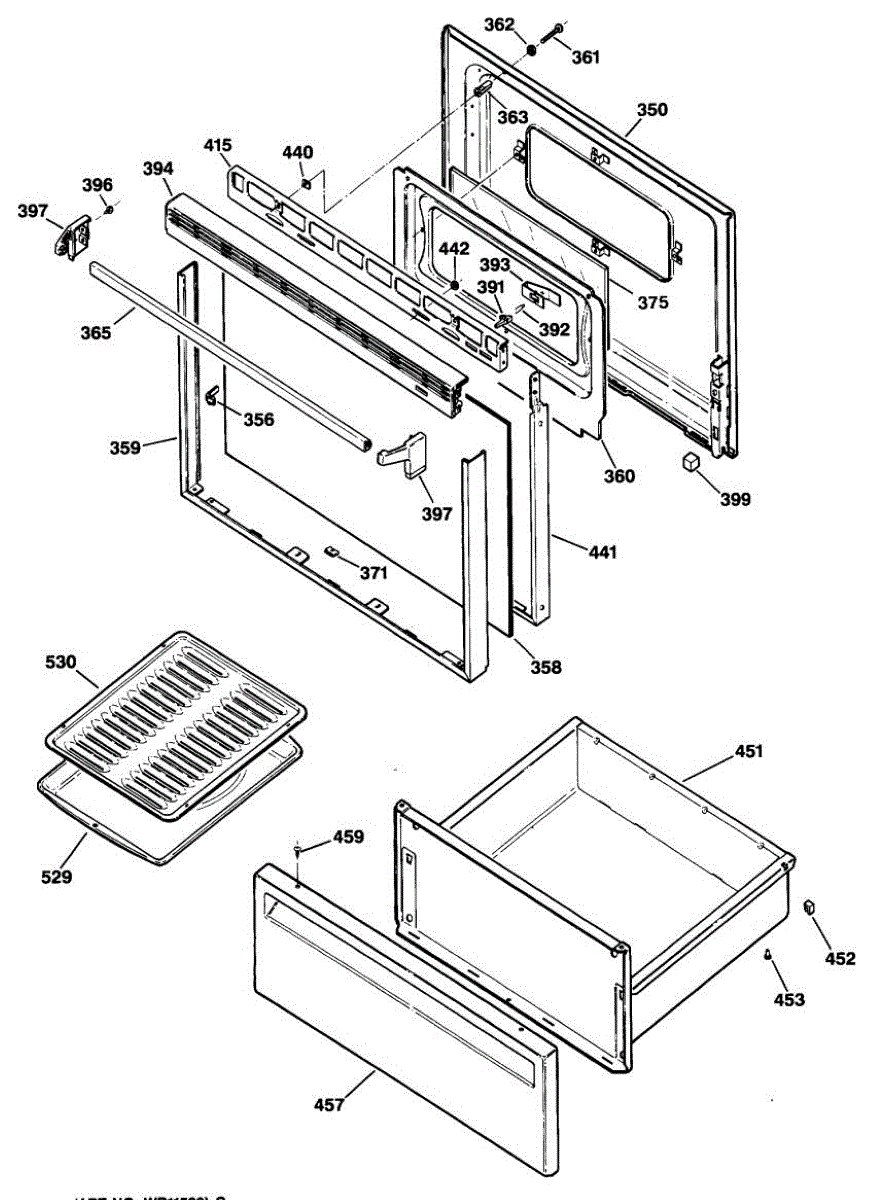

Parts for Ge JBS27GXR1: 03 - Section3 Parts

This inner oven door liner replaces a damaged or warped oven door interior to restore clean appearance and proper heat containment. Designed to fit the oven door assembly and support the inner glass panel. What it does:

• Replaces a cracked, dented, or heat-damaged oven door liner that can compromise appearance or sealing
• Provides a stable mounting surface for the inner glass and related door components
• Helps maintain proper heat containment and even cooking when the door assembly is sound
• Prevents metal edges from rubbing against the glass or insulation

• Disconnect power to the appliance before beginning work to avoid shock or injury
• Handle inner glass and metal edges with care; wear gloves and eye protection
• Removal typically requires detaching the oven door and separating door panels—follow the oven's service manual

Includes 12 screws.

Includes 12 washers.

This mounting spacer keeps exterior panels and components properly separated for correct alignment and fit, helping prevent rubbing and vibration. It's a small, durable replacement used where original spacers have worn or been lost. What it does:

• Maintains correct gap and alignment between panels or assembly parts
• Prevents rubbing, noise, and premature wear from metal-to-metal contact
• Helps secure components in the intended position during operation
• Restores factory spacing after repair or disassembly

• Disconnect power or unplug appliance before servicing
• Replace only with the same spacer location and orientation as the original
• Require removal of trim or panels; keep fasteners and note placement
• If damaged hardware or fasteners are found, replace them to ensure secure fit

Part is no longer available

Replace the top door trim on your electric range. This cosmetic trim piece covers the upper door edge and may need replacement if cracked or damaged.

Endcap Kit - Contains (1) left hand (1) right hand endcap.

Mounting bracket secures the cooktop or range top to the cabinet frame. Replace if bracket is bent, cracked, or missing to properly support the appliance.

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

Includes 12 speed nuts.

This small plastic button covers the electrical connection point where the range plugs into the wall outlet, located on the back of the unit. Replace if the button is cracked, missing, or doesn't properly cover the plug connection.

Mounting screw secures panels, trim, and internal components in ranges and ovens. Replace if missing, stripped, or damaged to restore proper fit.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.
