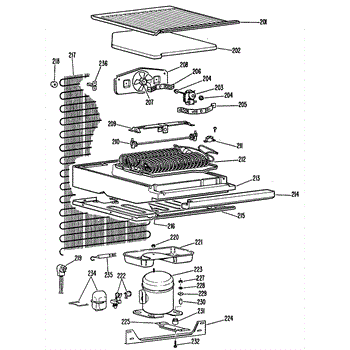

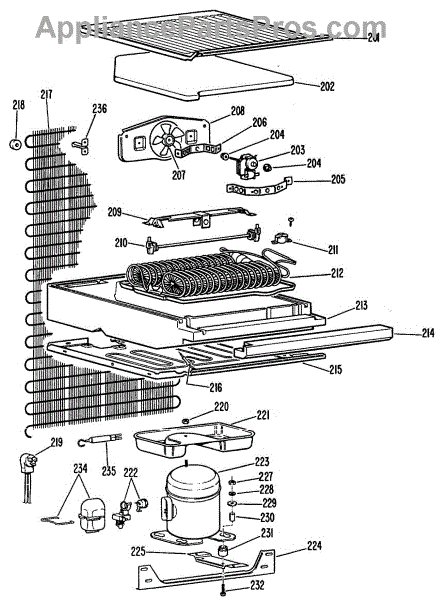

Parts for Ge TBF12DMC: 03 - Section3 Parts

The Evaporator Fan Blade is an OEM component for GE freezers and bottom-mount refrigerator designs. Located inside the freezer compartment, this fan blade spins to circulate cold air evenly throughout the storage space.

Causes of a faulty evaporator fan blade include natural fatigue from running year-round. Freezers exposed to humid environments may experience faster corrosion.

Symptoms include:

• Abnormal sounds like knocking or clunking from inside the walls
• cold spots developing in certain freezer areas
• Higher power bills from inefficient temperature regulation
• Frost or ice patches forming on evaporator coils

This part is also compatible with some brands like Hotpoint, RCA, and Kenmore.

Open - 55, close - 35

This insert evaporator housing secures the evaporator coil and channels cold airflow inside the freezer compartment, helping the cooling system operate efficiently and preventing ice buildup in the liner. What it does:

• Holds and protects the evaporator coil and related components inside the freezer cavity
• Directs airflow over the coil to maintain consistent cooling
• Helps contain defrost water and route it to the drain pan
• Can reduce frost build-up when the cooling system and defrost cycle are working properly

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove interior panels and the evaporator assembly per manufacturer instructions; support the coil when disconnecting components
• Inspect and replace any brittle seals, fasteners, or insulation while the unit is open
• Allow the evaporator to fully defrost before reassembly

This condenser is the refrigerant heat-exchange coil that helps remove heat from your refrigerator's cooling system so the appliance can maintain proper cold temperatures. Replacing a damaged or clogged condenser restores normal cooling performance. What it does:

• Dissipates heat from the refrigerant to the surrounding air so the refrigerator can cool efficiently.
• Helps keep compressor run-time within normal ranges; a failing condenser can cause long run cycles.
• Prevents excessive heat buildup that can lead to warm compartments or higher energy use.
• Works as part of the sealed refrigeration system with the compressor, evaporator, and tubing.

• Disconnect power to the appliance before removing access panels or working near electrical components.
• Avoid bending or crushing the condenser fins; use care when handling and positioning the coil.
• Inspect mounting hardware and any attached tubing or brackets; replace damaged clips or fasteners as needed.

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation
