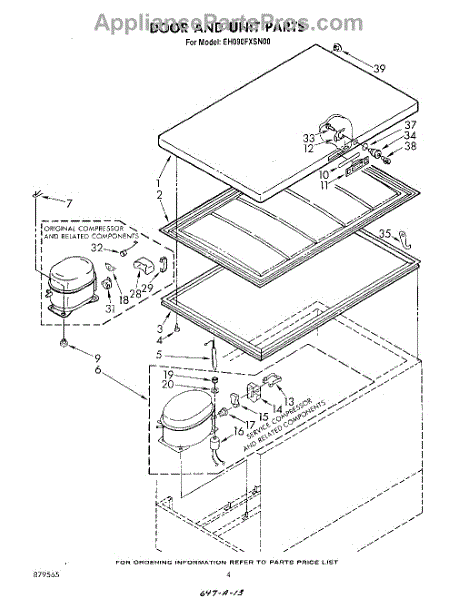

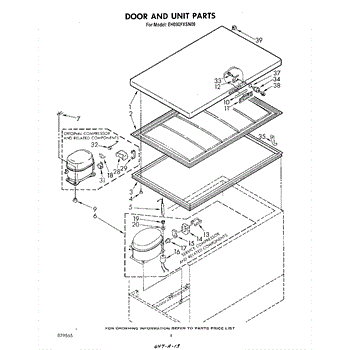

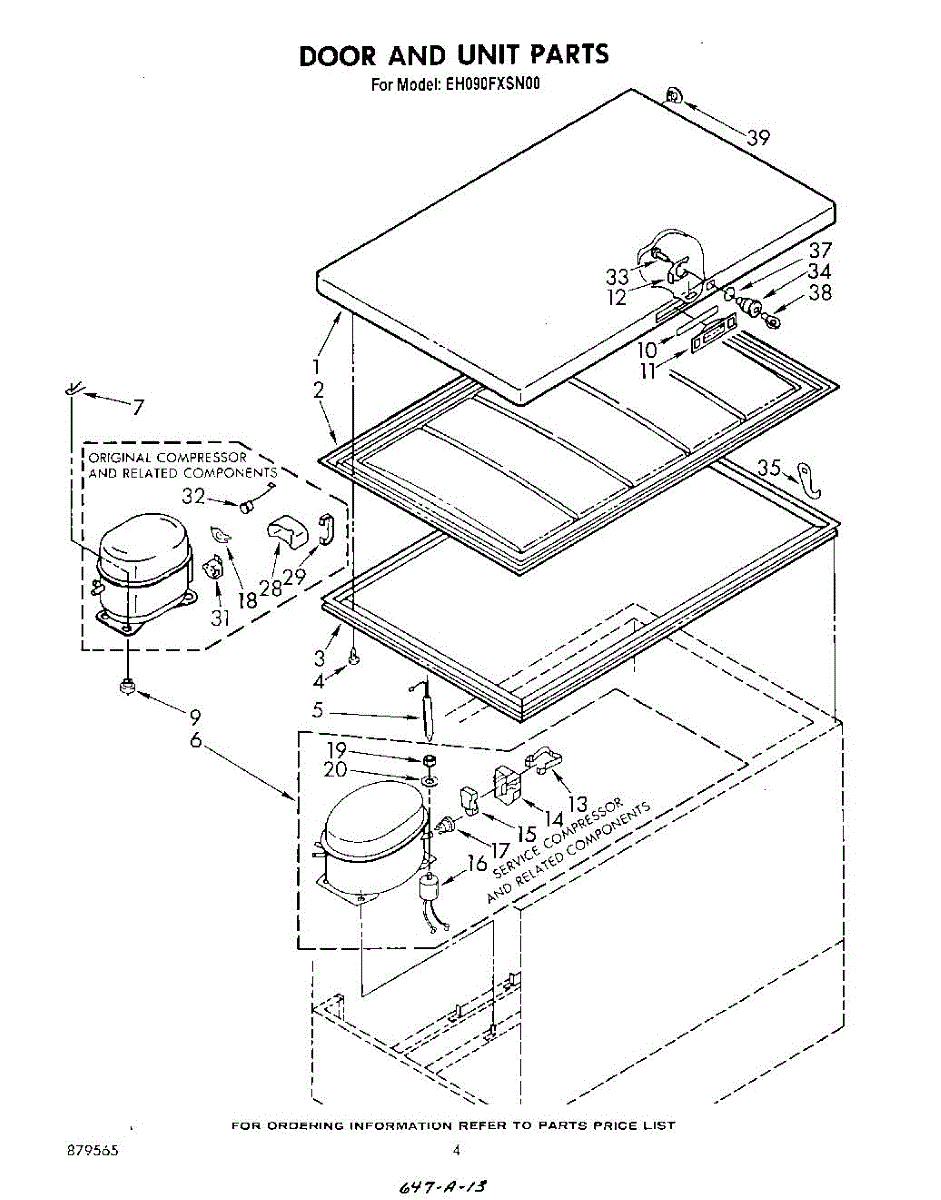

Parts for Whirlpool EH090FXSN00: 03 - Section Parts

This door gasket seals the refrigerator/freezer door to keep cold air in and maintain consistent temperatures. A correct replacement restores the door seal to help prevent leaks, frost buildup, and inefficient cooling. What it does:

• Replaces a damaged or worn door seal to restore a tight closure between door and cabinet.
• Helps stop cold air from escaping, reducing frost buildup and uneven temperatures.
• Minimizes energy loss caused by gaps or cracks in the existing gasket.
• Addresses symptoms such as visible cracks, gaps when door is closed, or increased running time.

• One white door gasket (as pictured).

• Unplug the appliance or shut off power before starting any repair.
• Inspect and clean the gasket channel and mating surfaces before installing the new seal.
• Start by seating the gasket into the corners, then press the gasket evenly into the channel around the door.
• Avoid using sharp tools that could tear the gasket; refer to the appliance manual for any model-specific steps.

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This PTC start relay mounts on the compressor and momentarily powers the start winding to get the motor running, then disengages for normal operation. Replacing a weak relay can stop repeated clicking and help restore cooling.

• Provides initial boost to the compressor's start winding for reliable startup
• Automatically drops out after startup so the compressor runs on the run winding
• Helps address symptoms like warm temperatures, compressor clicking or humming without starting, or frequent overload trips
• Failure may show as rattling, burn marks, or a melted relay housing

• Disconnect power and remove the rear access panel to reach the compressor
• Allow components to cool; note wire locations and take a reference photo
• Pull the old relay straight off the compressor pins; align and firmly seat the new relay in the same orientation, then reconnect wires
• If your unit uses a run capacitor and/or separate overload protector, reconnect per the wiring diagram before restoring power

Color: metallic. Measures about 1 inch high by 2 inches deep.
