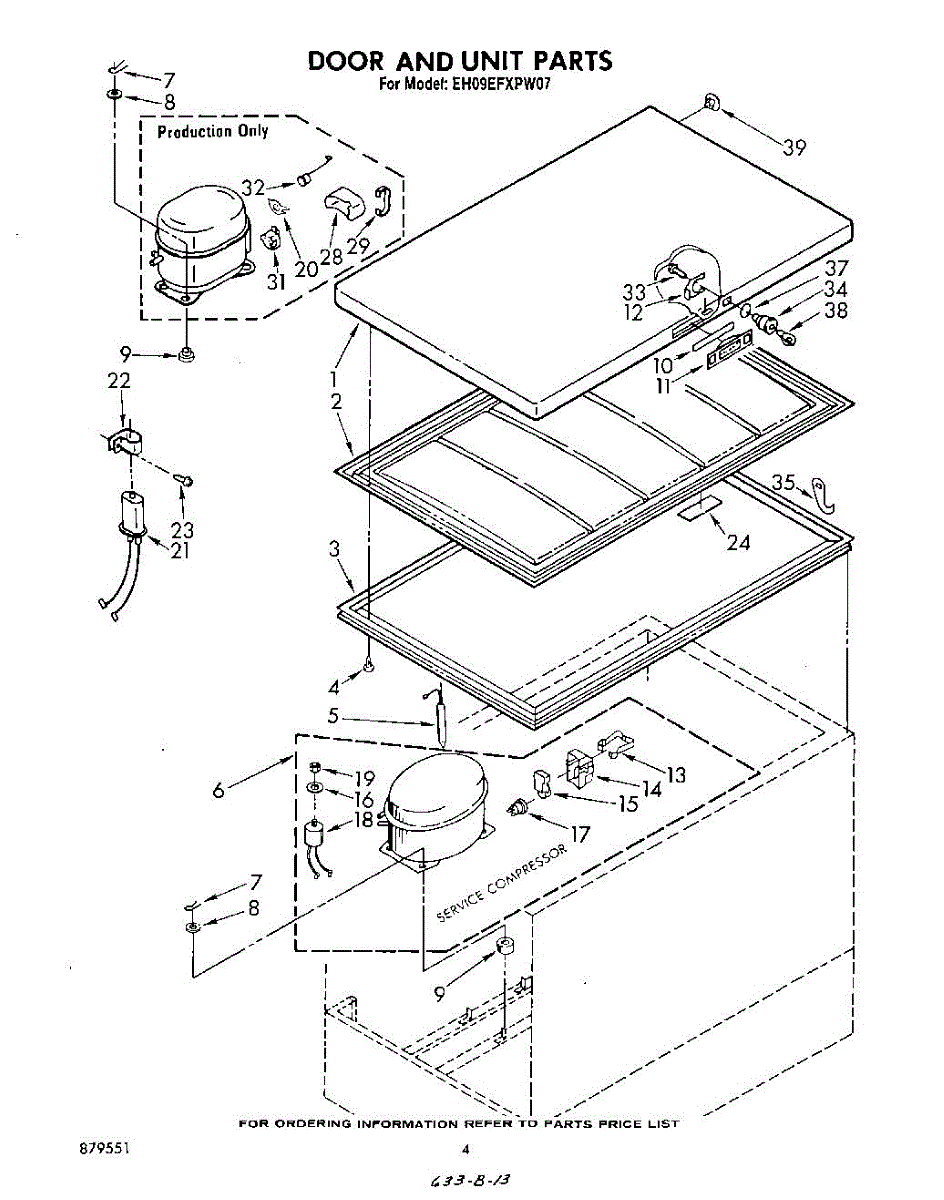

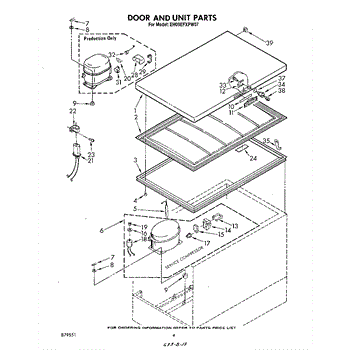

Parts for Whirlpool EH09EFXPW07: 03 - Section Parts

This door gasket seals the refrigerator/freezer door to keep cold air in and maintain consistent temperatures. A correct replacement restores the door seal to help prevent leaks, frost buildup, and inefficient cooling. What it does:

• Replaces a damaged or worn door seal to restore a tight closure between door and cabinet.
• Helps stop cold air from escaping, reducing frost buildup and uneven temperatures.
• Minimizes energy loss caused by gaps or cracks in the existing gasket.
• Addresses symptoms such as visible cracks, gaps when door is closed, or increased running time.

• One white door gasket (as pictured).

• Unplug the appliance or shut off power before starting any repair.
• Inspect and clean the gasket channel and mating surfaces before installing the new seal.
• Start by seating the gasket into the corners, then press the gasket evenly into the channel around the door.
• Avoid using sharp tools that could tear the gasket; refer to the appliance manual for any model-specific steps.

This part is a grommet. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a broken or misplaced grommet in a variety of different appliance models.Grommets have a number of uses in different appliances. Typically, grommets are important for letting water pass through the appliance without leaking. Over time, grommets can become brittle, cracked, or lost and may need replacing. Please follow appropriate safety precautions when attempting to replace any appliance parts. Make sure the appliance is completely disconnected from its gas, water, and power sources before attempting any repairs or replacements. Proper tools might be required to replace this part. For more accurate information on how and where to install this replacement grommet, reference the appropriate manufacturer owner's manual and diagrams. As an authentic replacement part, this grommet is suitable for use on several different models of refrigerators, freezers, and washers manufactured by Whirlpool, Kenmore, KitchenAid, Roper, and other Whirlpool brands. Please note that this is a genuine part made of high-quality, durable, rubber material and is sold individually.

Screw: 8-16 x 3/8 inch.

This PTC start relay mounts on the compressor and momentarily powers the start winding to get the motor running, then disengages for normal operation. Replacing a weak relay can stop repeated clicking and help restore cooling.

• Provides initial boost to the compressor's start winding for reliable startup
• Automatically drops out after startup so the compressor runs on the run winding
• Helps address symptoms like warm temperatures, compressor clicking or humming without starting, or frequent overload trips
• Failure may show as rattling, burn marks, or a melted relay housing

• Disconnect power and remove the rear access panel to reach the compressor
• Allow components to cool; note wire locations and take a reference photo
• Pull the old relay straight off the compressor pins; align and firmly seat the new relay in the same orientation, then reconnect wires
• If your unit uses a run capacitor and/or separate overload protector, reconnect per the wiring diagram before restoring power

Color: metallic. Measures about 1 inch high by 2 inches deep.
