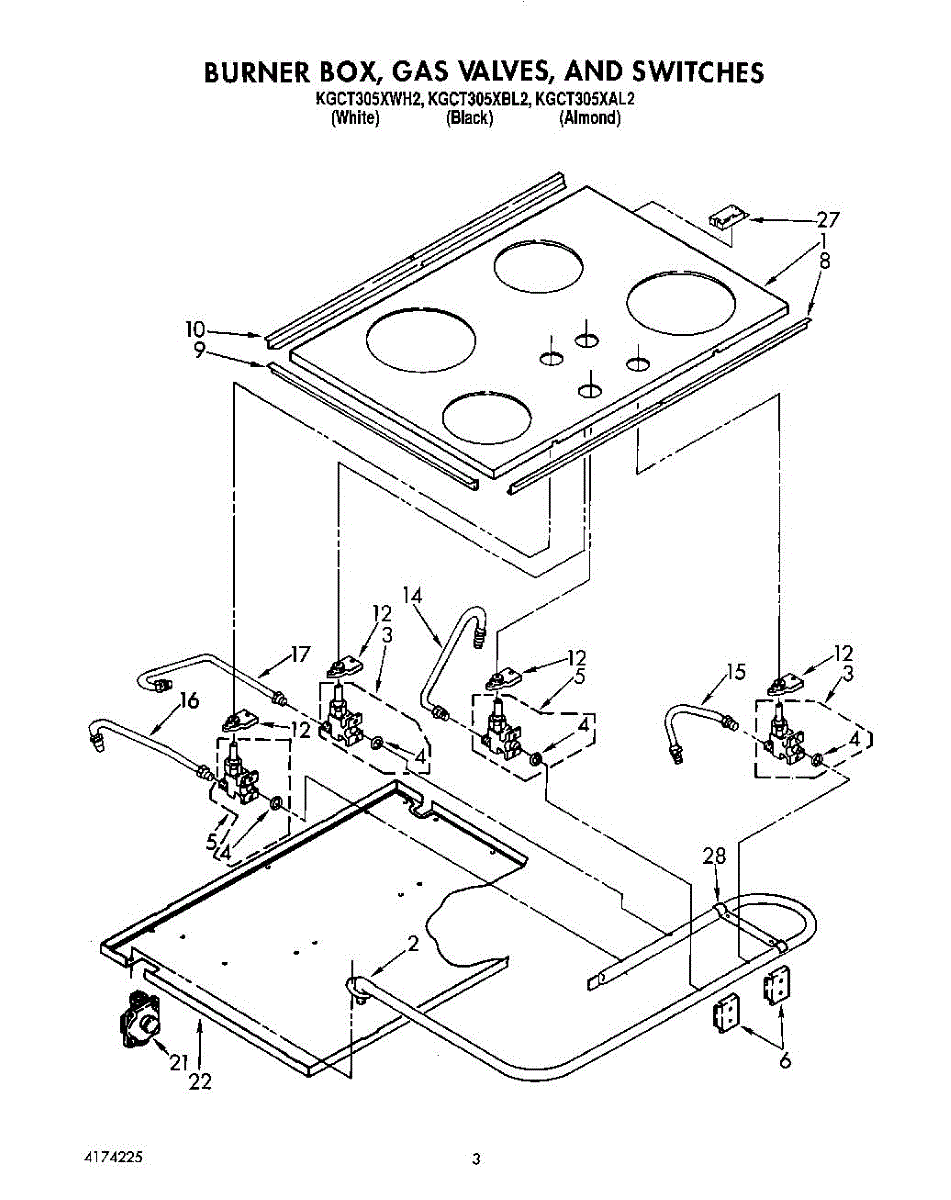

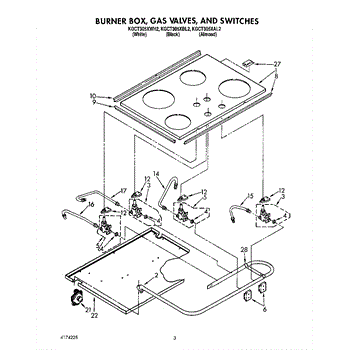

Parts for Kitchenaid KGCT302XBL2: 03 - Section Parts

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

Gas valve shaft seal.

This top burner spark switch sends the electrical signal that creates a spark to ignite a single cooktop burner. Replacing a worn or failed switch restores reliable ignition and helps the affected burner light correctly. What it does

• Sends the spark to the top-burner electrode so the burner can ignite when turned on.
• Common symptoms: burner won't light, intermittent sparking, or continuous clicking from the control area.
• Mounts behind the cooktop/control panel and connects to the ignition electrode and wiring harness.
• Replaces a single faulty top-burner ignition switch to restore normal burner operation.

• Turn off electrical power and gas supply before beginning any repair.
• Remove knobs and access panel to reach the switch; label or photograph wire locations before disconnecting.
• Disconnect the wiring harness, swap the old switch for the replacement, reconnect wires, restore power, and test ignition.

This spark module controls surface-burner ignition on gas ranges and cooktops. It generates the high-voltage pulses that light the flame when you turn a knob, restoring fast, reliable burner lighting and eliminating constant clicking.

• Sends high-voltage pulses to the burner igniters when a surface knob is turned to ignite the flame
• Coordinates sparking for multiple surface burners
• Failure symptoms can include no spark on all burners, intermittent or weak sparking, or continuous clicking even with flames present
• Replacing a failed module restores proper burner ignition performance

• Disconnect power and shut off the gas supply before servicing
• Access the module, then photograph wiring and transfer leads one at a time to the new module
• Mount securely and ensure igniter leads are fully seated and routed away from heat and sharp edges
• Restore power/gas and verify each burner lights promptly with a strong, consistent spark

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.
