Parts for Kitchenaid KGCT365XAL1: 03 - Section Parts

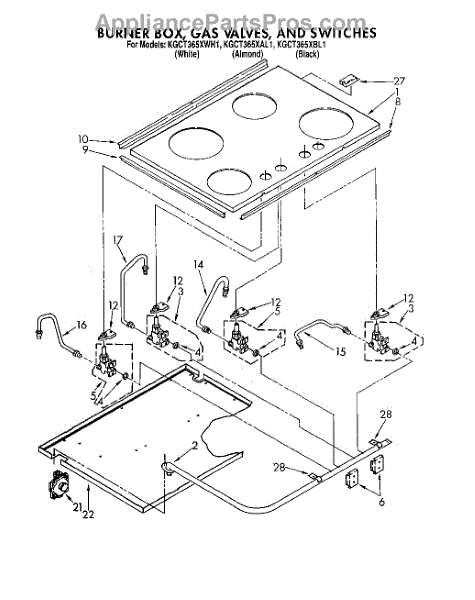

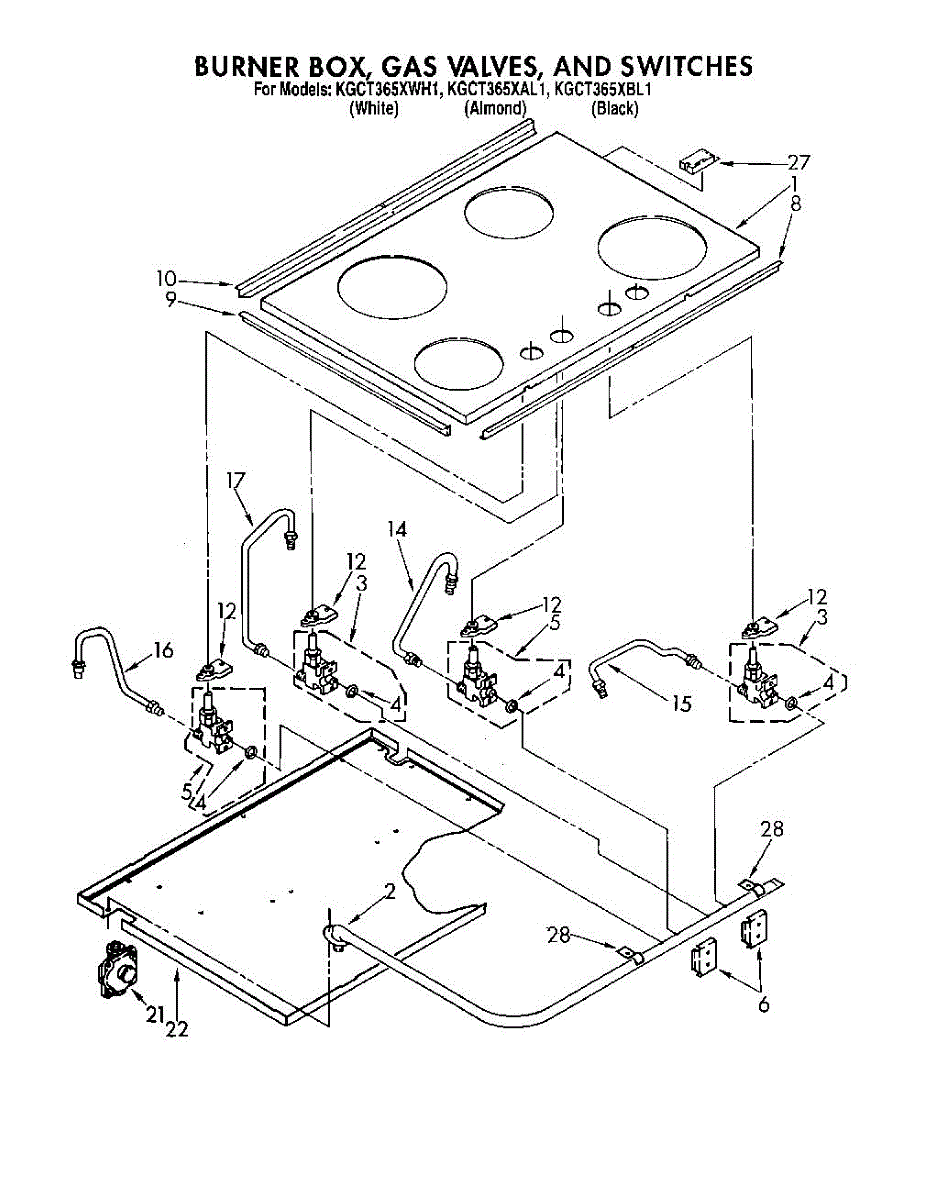

03 - Section
Gas Cooktop

Parts for Kitchenaid KGCT365XAL1: 03 - Section Parts

Location on Diagram
Part Description
Price & Availability
1

Cover, Top Assembly

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1

Screw, 8 X 1/4

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Pipe, Manifold

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
Product photo

Valve, Top Bnr Lf/Rr

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Washer, Gas Valve Sealing

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5
Product photo

Valve, Top Bnr Rf/Lr

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5
Product photo

Shaft Seal

5.0 (1)
By: Whirlpool

Gas valve shaft seal.

More
$45.95
Compare At:
$55.14
You Save:
$9.19

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
6

Bracket, Clamp (Gas Valve)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6

Screw

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8

Frame, Front

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9

Frame, Side

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10

Frame, Rear

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10

Screw, 8 X 1/4

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12
Product photo

Top Burner Spark Switch (Igniter)

4.0 (1)
By: Whirlpool

This top burner spark switch sends the electrical signal that creates a spark to ignite a single cooktop burner. Replacing a worn or failed switch restores reliable ignition and helps the affected burner light correctly. What it does

  • Sends the spark to the top-burner electrode so the burner can ignite when turned on.
  • Common symptoms: burner won't light, intermittent sparking, or continuous clicking from the control area.
  • Mounts behind the cooktop/control panel and connects to the ignition electrode and wiring harness.
  • Replaces a single faulty top-burner ignition switch to restore normal burner operation.
What's included One top burner spark switch. Install notes
  • Turn off electrical power and gas supply before beginning any repair.
  • Remove knobs and access panel to reach the switch; label or photograph wire locations before disconnecting.
  • Disconnect the wiring harness, swap the old switch for the replacement, reconnect wires, restore power, and test ignition.

More
$52.31
Compare At:
$62.25
You Save:
$9.94

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
14

Tubing, Large Gas Burner (Rf)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15

Tubing, Small Gas Burner (Lf)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Tubing, Large Gas Burner (Lr)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17

Tubing, Small Gas Burner (Rr)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21
Product photo

Regulator, Pressure

4.7 (3)
By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22

Screw, 8 X 1/4

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22

Cover, Burner Box

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

27

Screw All

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

27
Product photo

Spark Module (Surface Burner Ignition)

4.8 (5)
By: Whirlpool

This spark module controls surface-burner ignition on gas ranges and cooktops. It generates the high-voltage pulses that light the flame when you turn a knob, restoring fast, reliable burner lighting and eliminating constant clicking.

  • Sends high-voltage pulses to the burner igniters when a surface knob is turned to ignite the flame
  • Coordinates sparking for multiple surface burners
  • Failure symptoms can include no spark on all burners, intermittent or weak sparking, or continuous clicking even with flames present
  • Replacing a failed module restores proper burner ignition performance
What's included: 1 spark module Install notes:
  • Disconnect power and shut off the gas supply before servicing
  • Access the module, then photograph wiring and transfer leads one at a time to the new module
  • Mount securely and ensure igniter leads are fully seated and routed away from heat and sharp edges
  • Restore power/gas and verify each burner lights promptly with a strong, consistent spark

More
$160.95
Compare At:
$193.14
You Save:
$32.19

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
28

Clamp, Manifold

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

28

Screw, 8 X 1/4

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

28

Clip

By: Whirlpool

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Product photo

Lp Gas Conv.

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Product photo

Screw

By: Whirlpool

Size: 8-18 x 3/8 inch.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Use & Care Guide

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Harness, Wire Sealed Gas Cooktop

By: Whirlpool

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Wire Assembly Module Ground

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Wire Assembly Red 16`` Spark Module Term.1 To Left Front Burner Term.1

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Repair Parts List

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Wire Assembly Yellow 35`` Spark Module Term.4 To Right Front Burner Term.1

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Wire Assembly Red 24`` Spark Module Term.12 To Left Front Burner Switch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Tie-Wire

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Power Cord

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Product photo

Seal - Slcne

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Product photo

Regulator, Pressure

4.7 (3)
By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
