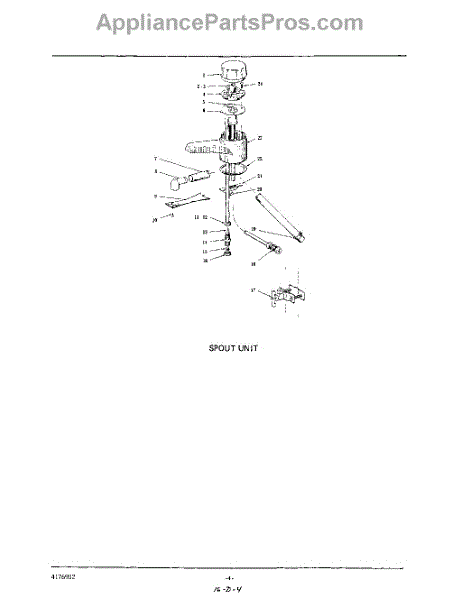

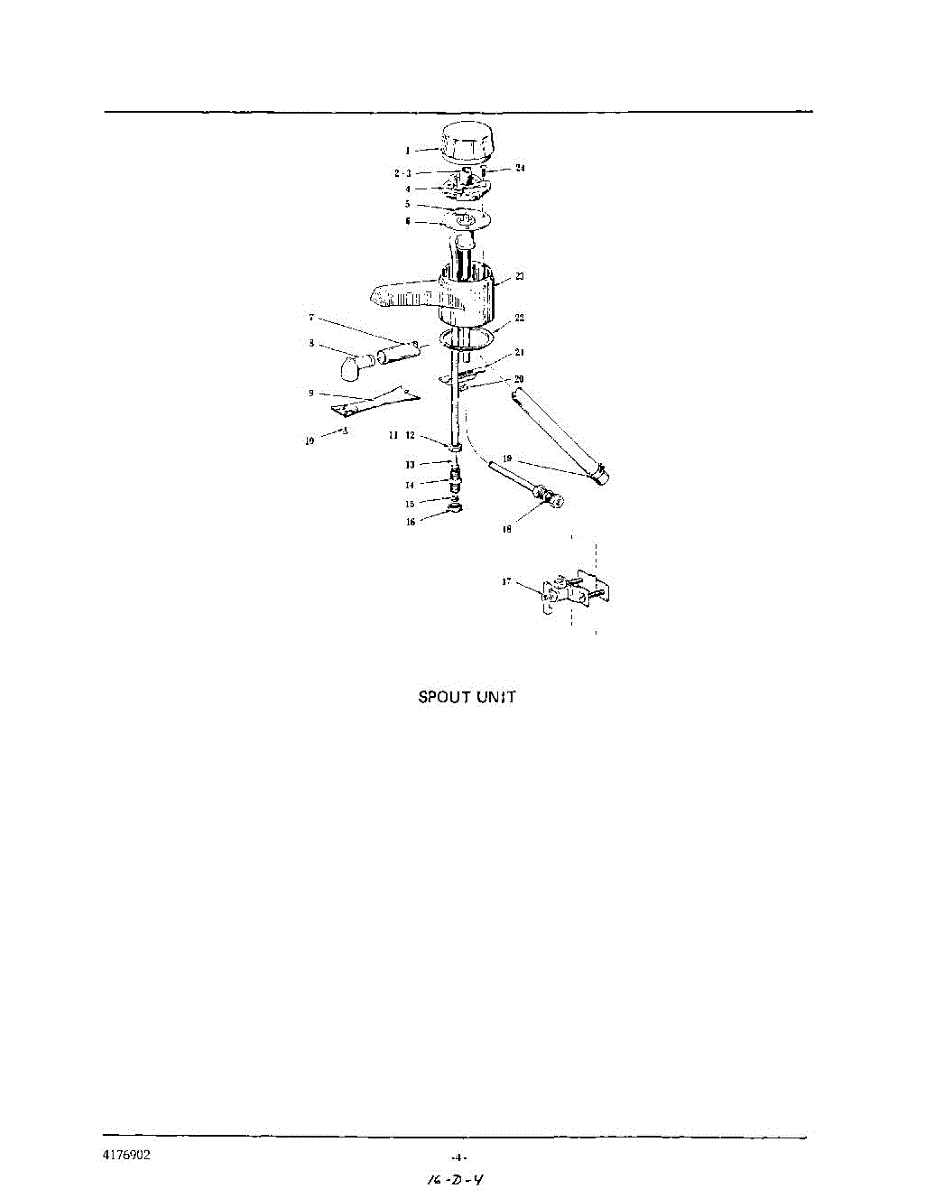

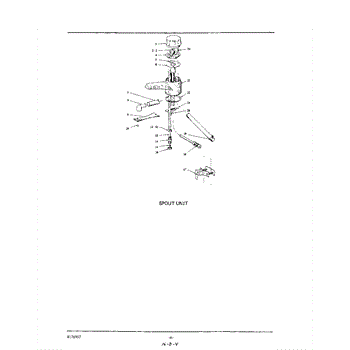

Parts for Kitchenaid KIH160E: 03 - Section Parts

1

Cap Assembly

By: Whirlpool

Part Number: C-114041-4

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Hub - Valve Drive

By: Whirlpool

Part Number: D-241384

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3

Spring - Compression

By: Whirlpool

Part Number: B-242464

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Hub - Cam

By: Whirlpool

Part Number: D-241383

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5

Cap Screw - 1/4``-20 X 5`` Rd. Head

By: Whirlpool

Part Number: SC-116-33

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6

Mechanical Valve Assembly (Incls. Items No.13 & 14)

By: Whirlpool

Part Number: E-241689-1

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7

Tube (3/8`` I.D.)

By: Whirlpool

Part Number: B-203694-10

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8

Spout & Screen Assembly

By: Whirlpool

Part Number: C-242479

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9

Plate - Spout

By: Whirlpool

Part Number: C-241684

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10

Self-Tapping Screw - No.4-20 X 5/16`` Phil. Flat Undercut Hd. ``Plastite``

By: Whirlpool

Part Number: SD-32-12

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11

Nut - 1/4`` Compression Union

By: Whirlpool

Part Number: FP-47-35

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12

Sleeve - 1/4`` Compression Union

By: Whirlpool

Part Number: FP-47-34

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13

Screen - Inlet

By: Whirlpool

Part Number: B-240443

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14

Union - Compression (1/4`` Tube To 1/4`` Tube)

By: Whirlpool

Part Number: FP-75-1

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15

Sleeve - 1/4`` Compression Union

By: Whirlpool

Part Number: FP-47-34

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Nut - 1/4`` Compression Union

By: Whirlpool

Part Number: FP-47-35

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17

Self - Drilling Valve Assembly

By: Whirlpool

Part Number: C-113614

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18

Union - Compression (1/4`` Tube To 1/4`` Tube)

By: Whirlpool

Part Number: FP-75-1

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19

Clamp (1/2`` O.D. Tubing)

By: Whirlpool

Part Number: B-113156-2

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20

Mach. Nut - 1/4``-20 Sq

By: Whirlpool

Part Number: NS-8-7

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21

Bracket - Spout

By: Whirlpool

Part Number: D-240825

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22

Seal - Sink

By: Whirlpool

Part Number: B-241669

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23

Body - Spout

By: Whirlpool

Part Number: E-240823

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24

Self-Tapping Screw - No.6-20 X 1/2`` Rd. Hd. Type Bt

By: Whirlpool

Part Number: SD-33-3

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24

Kit - Tube & Bracket Assembly (Incls. Items No.17, 18, 19, 22 & No.3 On Page 3)

By: Whirlpool

Part Number: 241427

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24

Spout Unit Assembly (Incls. Items No.1 Thru 16, 19 Thru 24)

By: Whirlpool

Part Number: 242456-4

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
