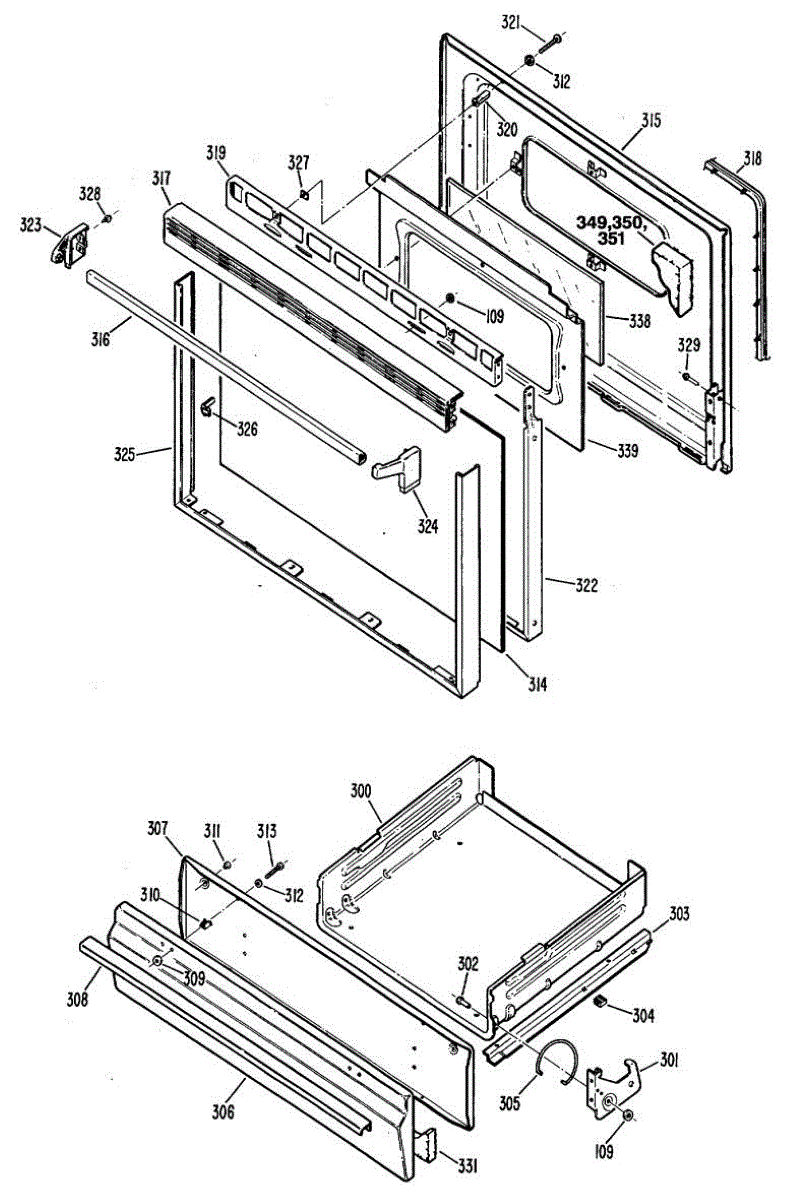

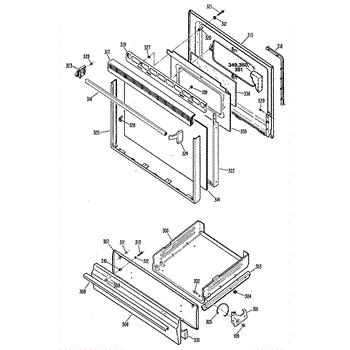

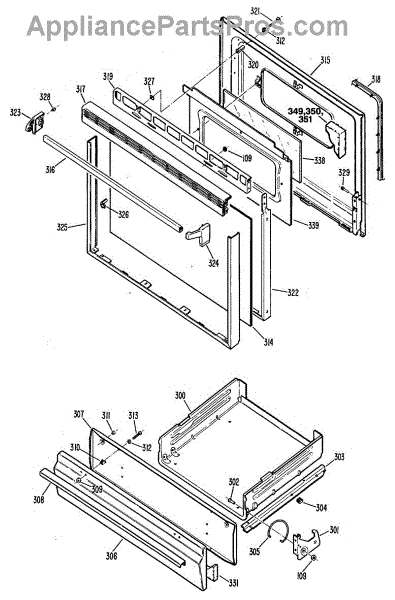

Parts for Ge JGBC16GEP1: 04 - Section4 Parts

Includes 12 speed nuts.

Right side broiler hinge for gas ranges. Replacement for broken, cracked, or worn hinges that keep the broiler door properly aligned and supported.

Left side broiler hinge for gas ranges. Replaces broken, worn, or missing hinges that prevent proper broiler door operation and alignment.

Secures and stabilizes your gas range broiler drawer, allowing smooth sliding and proper alignment. Replace if worn, broken, or missing.

Side broiler panel guide for gas ranges. Installs on the right side of the broiler cavity. Replace if cracked, broken, or missing to restore proper fit.

Left side broiler panel for gas ranges. Replaces cracked, damaged, or missing side panels. Mounts to the broiler compartment interior wall.

Broiler rack slide support that mounts inside your range oven cavity. Replace if bent, broken, or missing to restore smooth sliding and stability.

This is the right side broiler door spring. For left side use WB9K3.

Left side broiler door spring for gas ranges. Replaces cracked, broken, or worn springs that fail to hold the broiler door properly in position.

Replacement drawer panel that restores the front trim of your range drawer. Installs as the external front surface to replace a damaged, dented, or worn panel.

Protective liner panel for range storage or warming drawers. Replace if cracked, stained, warped, or missing to restore drawer appearance and function.

Replaces the handle on your range's lower broiler drawer. Install this part if your current handle is cracked, broken, loose, or missing.

Includes 12 washers.

Spacer that fits between mating parts in your range or oven to maintain proper clearance and alignment. Replace if worn, missing, or damaged to prevent rubbing.

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

Seals your oven door to retain heat and maintain proper cooking temperature. Replace if torn, brittle, or heat escapes. Clips into place in minutes.

Includes 12 screws.

NOTE: This end cap kit has been redesigned. This end cap kit is black and comes two per package.

NOTE: This end cap kit has been redesigned. This end cap kit is black and comes two per package.

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

Replacement mounting screw secures panels, brackets, and trim in your range or wall oven. Use when original screws are missing, stripped, or damaged.

Includes 12 screws.

Insulation that installs on the side of your range door to reduce heat transfer and dampen sound. Replace if worn, torn, compressed, or missing.

Insulation panel that installs at the top of your range door to reduce heat transfer and dampen sound. Replace if cracked, deteriorated, or missing.
