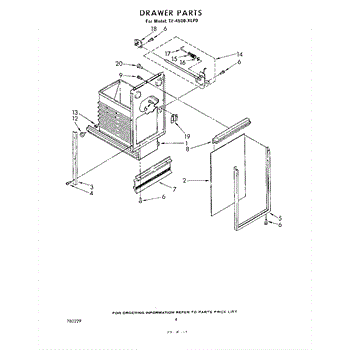

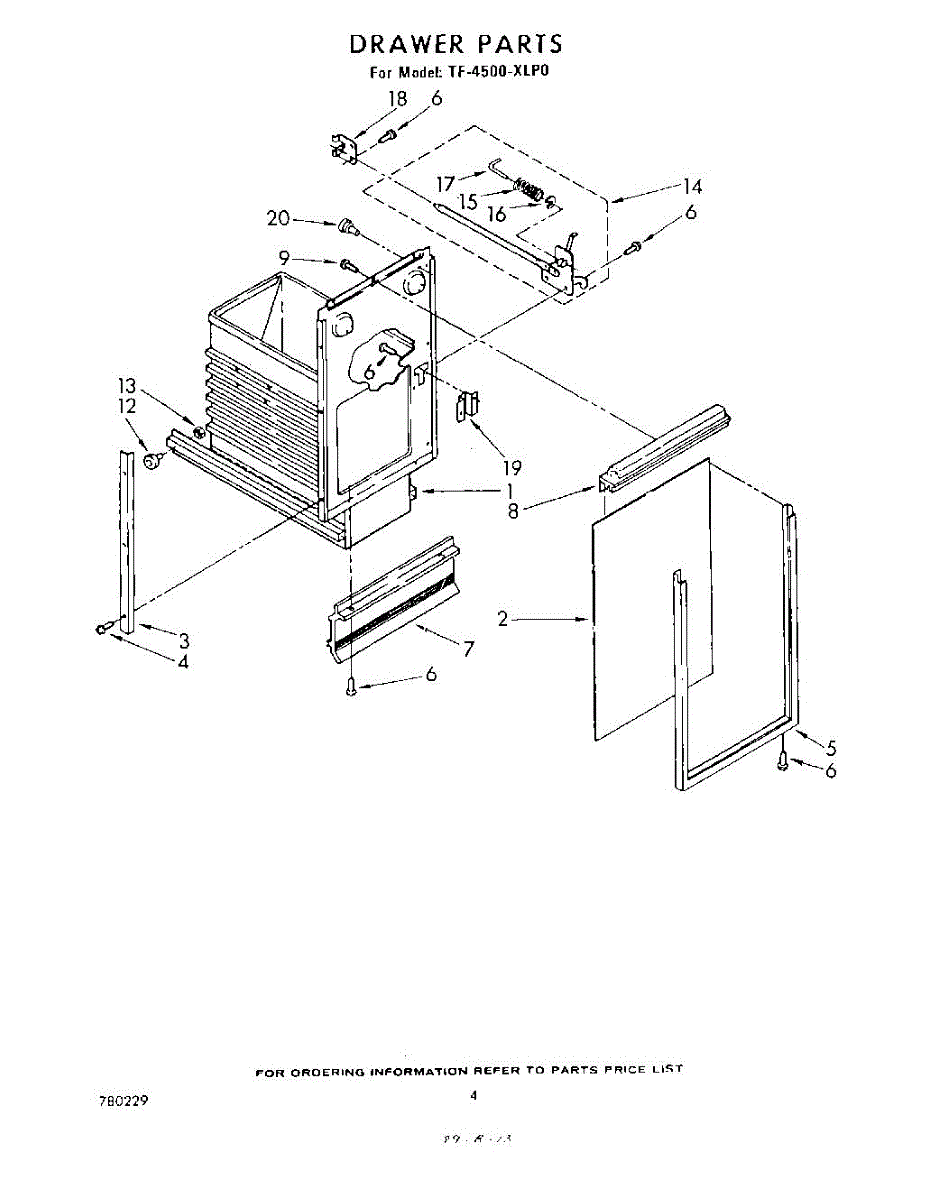

Parts for Whirlpool TF4500XLP0: 04 - Section Parts

Color: Harvest gold & almond.

Color: Black & white.

This part has been discontinued by the manufacturer and is no longer available.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Size: 8 x 1/2 ab.

This part has been discontinued by the manufacturer and is no longer available.

This black refrigerator container handle replaces a worn, cracked, or missing pull on an interior bin or drawer. It restores a secure grip so you can easily slide the container in and out on compatible models.

• Attaches to the front of a refrigerator container or its cover to provide a solid handhold
• Replaces cracked, loose, or missing handle pieces
• Helps bins open and close smoothly without stressing the cover/front
• Common symptoms: handle broken or missing, tabs snapped, handle won't stay attached, drawer hard to pull

• Remove the bin/drawer and place the cover or front on a flat, protected surface
• Release the old handle by removing screws or disengaging tabs/clips (varies by model); keep hardware for reuse
• Align the new handle and snap or screw it into place; do not overtighten
• Handle glass and plastic parts carefully; wearing cut-resistant gloves is recommended

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This container roller bearing supports the trash compactor drawer as it slides on its tracks. Replacing a worn bearing restores smooth, quiet movement and helps keep the container aligned for easy opening and closing.

• Provides low-friction support so the drawer glides smoothly on the tracks
• Helps maintain proper container alignment and stability
• Reduces squeaks, grinding, and sticking during operation
• Common symptoms: drawer hard to open/close, scraping noises, binding or uneven movement, visible wear/flat spots on the bearing

• Disconnect power to the compactor before servicing
• Remove and empty the drawer to access the bearing location
• Install the new bearing in the same orientation; transfer any hardware as needed
• Inspect rollers, axles, and tracks; replace any additional worn parts for best results

Size: 3\8-24 inch.

This door lock latch assembly secures the washer door during operation so cycles can run safely and water stays contained. It replaces a worn or damaged latch to restore proper door locking and cycle start. What it does

• Secures and locks the washer door during wash and spin cycles so the appliance can operate normally.
• Triggers the door-closed sensor/switch that allows the washer to start and continue a cycle.
• Helps prevent accidental door opening and reduces the risk of leaks during operation.
• Common symptoms indicating this part may be needed: washer won't start, door won't latch or lock, or the latch feels loose or broken.

• Always disconnect power to the appliance before inspecting or replacing the door lock latch.
• Handle the door and glass carefully to avoid damage; align the latch with the strike before tightening fasteners.
• After installation, test a short cycle (no clothes) to ensure the door locks and the washer starts properly.

This E-ring retaining clip secures latch components by locking onto a shaft or pin so the latch assembly stays in place. It's a small but essential metal clip that prevents latch parts from slipping off and causing door or panel issues. What it does:

• Locks onto latch shafts or pins to hold the latch assembly together
• Prevents the latch or related parts from sliding off during operation
• Common symptoms: door or panel won't stay closed, rattling or loose parts near the latch, visible clip missing or deformed
• Helps restore secure engagement of the latch when the clip is intact and correctly positioned

• One E-ring retaining clip

• Disconnect power or unplug the appliance before beginning any repair
• Use pliers or snap-ring tools to remove/install the clip; avoid excessive force that could deform it
• Replace the clip if it is bent, cracked, or worn — do not reuse a damaged clip

This latch plate secures the appliance door to the cabinet, providing the positive engagement needed for proper door closure and operation. It helps restore a door that won't stay closed or won't trigger door switches. What it does:

• Acts as the door strike that the latch engages to hold the door shut
• Ensures the door closes firmly so door switches can register a closed state
• Can stop issues like a loose or misaligned door, or a door that won't remain closed
• Restores proper alignment and engagement without replacing the full latch assembly

• Disconnect power (and gas if applicable) before servicing
• Remove the door or access panel to reach the latch area
• Inspect related latch components and alignment; replace only the damaged part
• Use basic hand tools; tighten fasteners securely but avoid overtightening

Rubber bumper for door/drawer.
