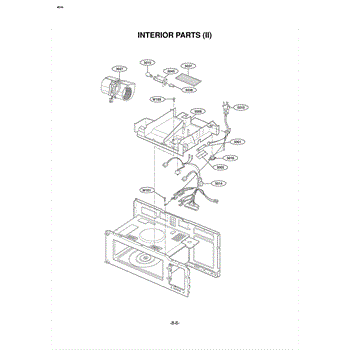

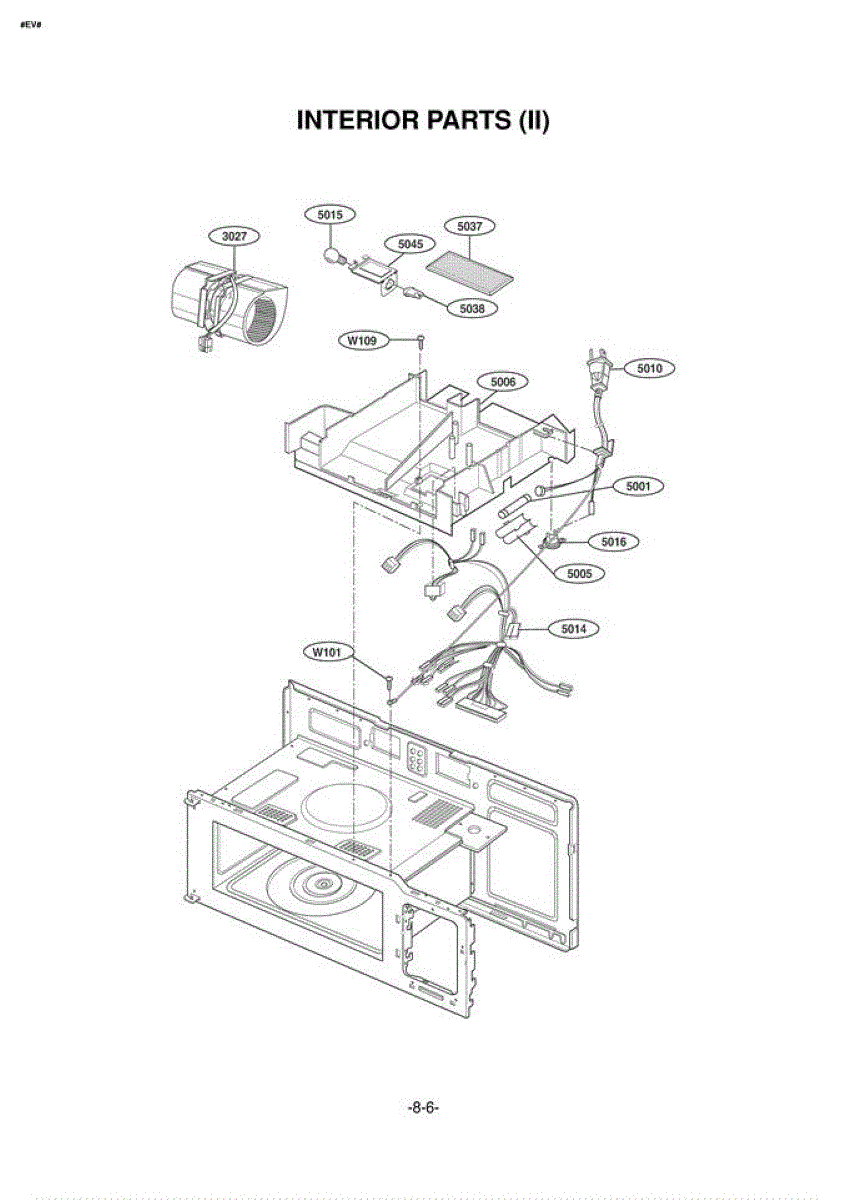

Parts for Lg EXV1511B / AB1EGSE: Section 6 Parts

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

This truss head tapping screw secures panels, brackets, and covers in your appliance. Replacing a missing or damaged fastener restores a snug fit, reduces vibration, and helps keep components properly aligned for reliable performance.

• Provides low-profile holding power; wide truss head helps secure thin panels and trim
• Replaces lost, stripped, or corroded screws at the original mounting points
• Helps eliminate rattling, vibration, or loose handles/covers
• Addresses situations where a screw will not tighten or backs out during use

• Disconnect power; shut off water/gas if applicable before servicing
• Align parts and hand-start threads to avoid cross-threading
• Tighten until snug; do not overtighten to prevent stripping
• If the receiving hole is damaged, for repair before installing the new screw

The Light Bulb is an OEM part for LG microwaves. It provides illumination inside the microwave oven, allowing users to monitor the cooking process and check the condition of the food without opening the door.

Causes of a bad light bulb can include normal wear and tear, electrical surges, or damage due to impact or overheating. Over time, the filament inside the bulb can burn out, or the bulb itself can become loose or disconnected.

Symptoms of a bad light bulb include:

• The microwave interior light not turning on
• Flickering or dimming of the light
• Intermittent lighting during operation

This OEM LG part is also compatible with Sears/Kenmore models.

This microwave thermostat is the safety control that monitors temperature and opens the circuit if overheating is detected, protecting internal components. Replace it if your oven is dead, loses heat, or shuts off mid-cycle due to a failed thermostat. What it does:

• Monitors temperature and interrupts power when overheating occurs to help prevent damage
• Helps protect internal components and wiring from excessive heat
• Failure can cause: no power, shuts off during or shortly after starting, or runs but does not heat
• Replacing a failed thermostat helps restore normal operation and safety protections

• 1 thermostat

• Unplug the appliance; microwaves contain high-voltage components that can retain a lethal charge even when unplugged
• Remove the outer cover to access the thermostat; location varies by model
• Move wires one at a time to the new thermostat and mount it firmly against the mating surface for proper heat sensing
• Reassemble, restore power, and test operation
