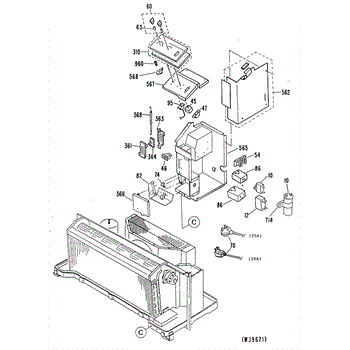

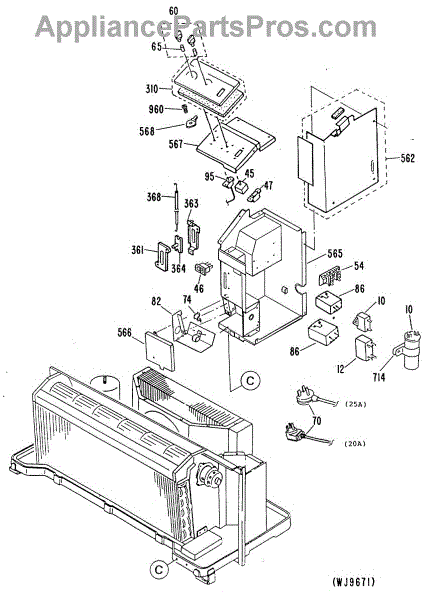

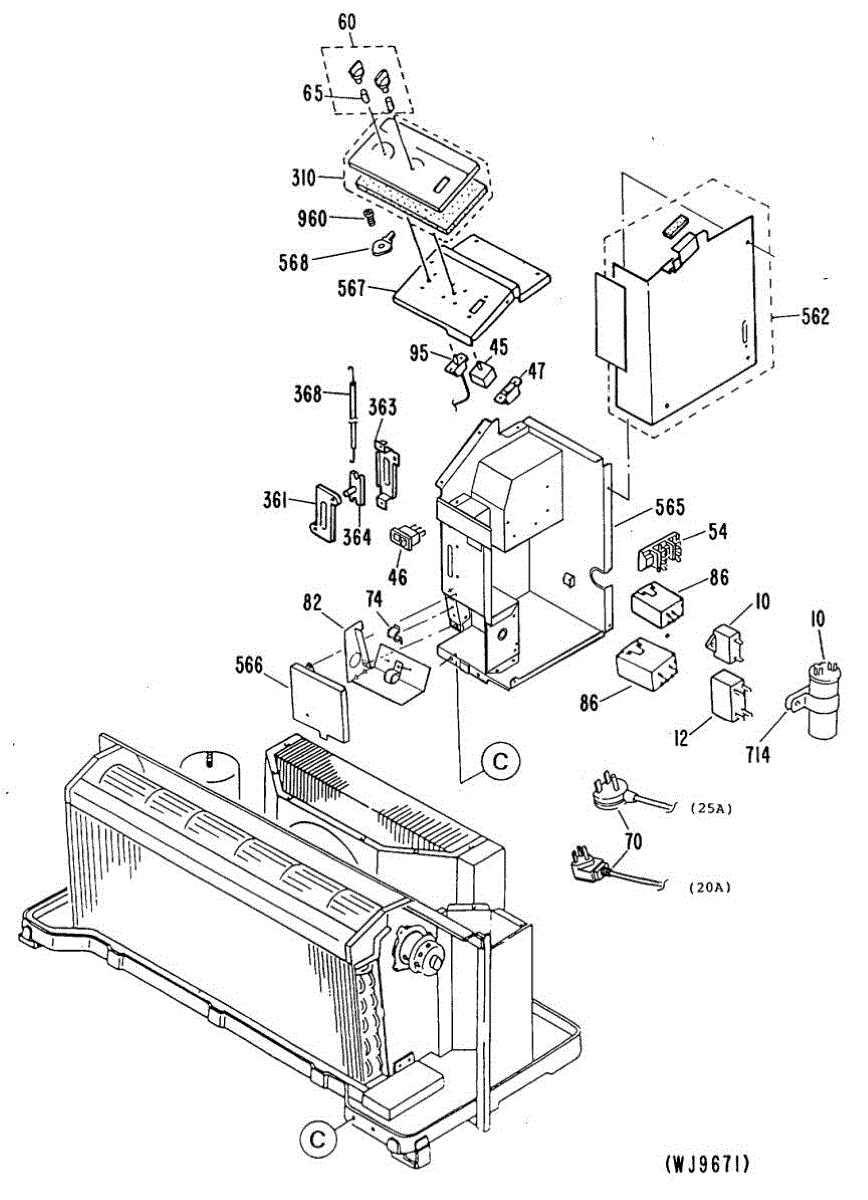

Parts for Ge AZC909EVV1: 01 - Section1 Parts

This indoor fan motor circulates air inside the appliance to help maintain even temperatures and proper airflow. A direct-fit replacement that restores circulation when the original motor fails or becomes noisy. What it does:

• Spins the evaporator/utility fan blade to move cold or conditioned air through the cabinet.
• Helps maintain consistent temperatures and prevents hot or warm spots.
• Commonly replaces motors that hum, run intermittently, or do not start.
• Reduces stress on the compressor by ensuring proper airflow when functioning.

• One indoor fan motor assembly

• Disconnect power to the appliance before beginning any repair.
• Handle the fan blade and motor shaft carefully to avoid bending or damage.
• Verify wiring connections and mounting orientation match the original before fastening.
• Refer to the appliance's service manual for model-specific disassembly and torque guidance.

This cover plate assembly replaces the control panel trim to protect internal controls and restore the appliance's appearance. It provides a finished surface that helps prevent debris and moisture from reaching switches and circuitry. What it does:

• Covers and shields the control area, protecting switches, buttons and wiring from spills and dust
• Restores the appliance's finished look when the original trim is cracked, warped or missing
• Helps maintain proper alignment of control components and button access
• Can reduce the chance of accidental contact with internal components

• Disconnect power to the appliance before starting any service.
• Installation generally requires removing the control panel trim screws and lifting the old plate out; retain fasteners for reuse.
• Handle edges carefully to avoid cuts and protect painted surfaces from scratches.
• Refer to the appliance's service manual or OEM instructions for model-specific steps.
