Parts for Ge AZW209DBV1: 01 - Section1 Parts

01 - Section1
Zoneline

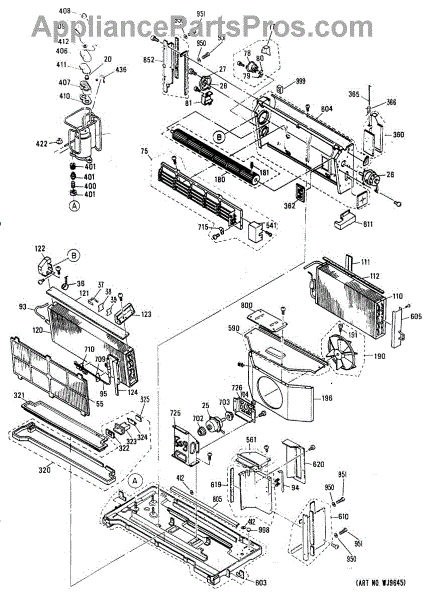

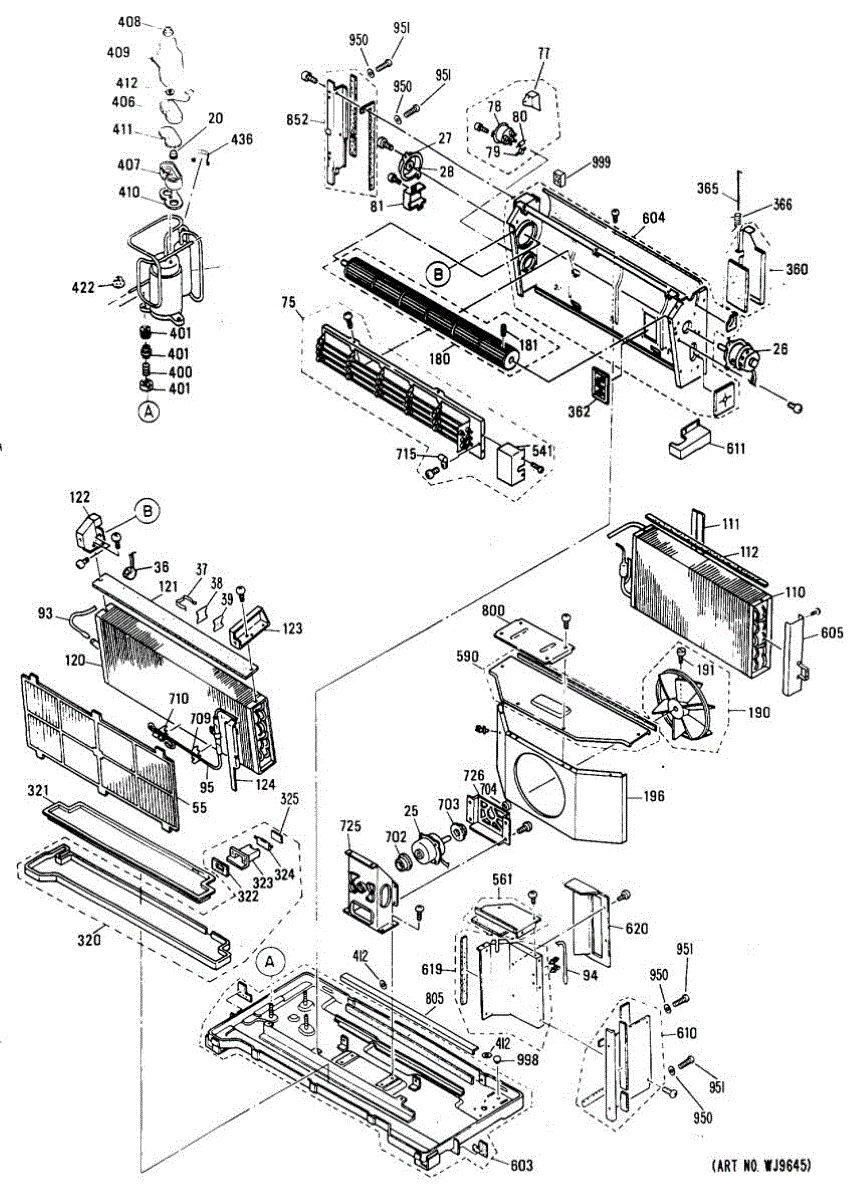

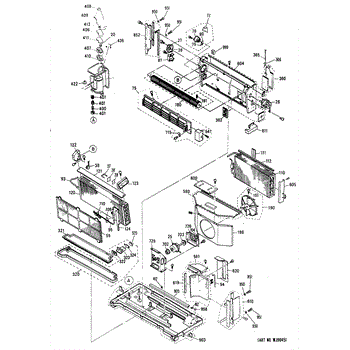

Parts for Ge AZW209DBV1: 01 - Section1 Parts

Location on Diagram
Part Description
Price & Availability
20

Compressor Overload

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25

Fan Motor Outdoor

By: Ge

More
$169.33
Compare At:
$196.19
You Save:
$26.86

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
26

Fan Motor

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

27

Bearing Housing

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

28

Bearing Housing

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

36

Thermostat Assembly

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

55

Filter

5.0 (1)
By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

77

Air Conditioner Fuse Protector

By: Ge

If your air conditioner won't turn on or keeps tripping the circuit, the fuse protector may have failed. This part safeguards the electrical system.

More
$7.95
Compare At:
$14.04
You Save:
$6.09

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
78

Fuse Housing

By: Ge

More
$35.57
Compare At:
$38.62
You Save:
$3.05

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
79

Heater Protector

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

80
Product photo

Fuse Assembly

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

81

Cover Protector

By: Ge

More
$29.47
Compare At:
$43.85
You Save:
$14.38

IN STOCK
Ships Today Guaranteed
Add to Cart
100

Compressor Repl.Kit

By: Ge

More
$988.95
Compare At:
$1,088.12
You Save:
$99.17

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
110

Condenser Kit

By: Ge

More
$172.95
Compare At:
$190.25
You Save:
$17.30

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
111

Condenser Guide

By: Ge

More
$16.95
Compare At:
$20.99
You Save:
$4.04

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
114

Thermostat Clip

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

120

Evaporator Kit

By: Ge

More
$150.69
Compare At:
$167.43
You Save:
$16.74

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
122

Cover Plate

By: Ge

More
$14.95
Compare At:
$18.09
You Save:
$3.14

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
123

Cover Plate

By: Ge

More
$17.67
Compare At:
$21.96
You Save:
$4.29

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
180

I D Blower

By: Ge

More
$340.77
Compare At:
$344.73
You Save:
$3.96

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
181

Bolt

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

190
Product photo

Fan, O.D.

By: Ge

More
$89.50
Compare At:
$105.61
You Save:
$16.11

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
191

Bolt

By: Ge

More
$9.95
Compare At:
$10.16
You Save:
$0.21

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
215
Product photo

Air Conditioner Louver Cam

By: Ge

Fix uneven or stuck airflow direction in your air conditioner with this louver cam. Controls the movement of air deflection louvers for proper ventilation.

More
$12.61
Compare At:
$25.07
You Save:
$12.46

IN STOCK
Ships Today Guaranteed
Add to Cart
320

Drain Pan Assembly

By: Ge

More
$65.95
Compare At:
$73.29
You Save:
$7.34

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
321

Cover Plate

By: Ge

More
$74.27
Compare At:
$78.15
You Save:
$3.88

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
322

Seal

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

360

Damper Door Assembly

By: Ge

More
$72.95
Compare At:
$76.61
You Save:
$3.66

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
365

Plug Base Pan

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

366

Door Spring

By: Ge

More
$12.34
Compare At:
$13.26
You Save:
$0.92

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
401

Grommet, Compressor Mounting

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

408

Nut Terminal Cover

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

412

Washer

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

422

Nut Compressor Mounting

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

436

Accumulator Clamp

By: Ge

More
$4.95
Compare At:
You Save:

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
438

Packing

By: Ge

More
$9.95
Compare At:
$10.16
You Save:
$0.21

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
590

Top Plate Assembly (Top Panel)

By: Ge

This top plate assembly is the metal top panel that surrounds and supports the cooktop area, restoring a stable mounting surface and improving the appliance's appearance. Use it when the existing top is dented, warped, or damaged. What it does:

  • Replaces a bent, cracked or corroded top panel that prevents burners or elements from seating properly
  • Provides a secure mounting surface for surface elements, grates, and control components
  • Restores a flush, finished look to the cooktop area and prevents debris from falling into the range cavity
  • Helps maintain proper spacing and alignment for safe operation of surface components
What's included:
  • One top plate assembly
Install notes:
  • Disconnect power to the appliance at the breaker before starting any work
  • Remove surface elements, grates, and any trim to access fasteners
  • Handle edges carefully—metal panels can have sharp edges; wear gloves and eye protection
  • Keep mounting hardware and any grounding straps in place or reuse original fasteners; verify fit before tightening

More
$62.95
Compare At:
$65.86
You Save:
$2.91

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
604

Barrier Assembly

By: Ge

More
$154.95
Compare At:
$188.83
You Save:
$33.88

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
610

Partition Plate Assembly

By: Ge

More
$12.61
Compare At:
$13.55
You Save:
$0.94

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
619

Plate Assembly

By: Ge

More
$67.61
Compare At:
$70.98
You Save:
$3.37

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
620

Mounting Plate Assembly

By: Ge

More
$48.95
Compare At:
$51.51
You Save:
$2.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
702

Motor Seal

By: Ge

More
$17.67
Compare At:
$21.96
You Save:
$4.29

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
703

Seal

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

705

Seal/Gsk Kit

By: Ge

More
$12.95
Compare At:
$16.48
You Save:
$3.53

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
709

Clip

By: Ge

More
$7.63
Compare At:
$14.55
You Save:
$6.92

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
714

Capacitor Clamp

By: Ge

More
$4.95
Compare At:
$5.41
You Save:
$0.46

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
715

Clamp

By: Ge

More
$10.95
Compare At:
$11.22
You Save:
$0.27

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
725

Mounting Plt

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

726

Mounting Plt

By: Ge

More
$45.36
Compare At:
$51.59
You Save:
$6.23

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
800

Support

By: Ge

More
$38.95
Compare At:
$42.01
You Save:
$3.06

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
950

Washer

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

951

Screw

By: Ge

More
$14.95
Compare At:
$18.09
You Save:
$3.14

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
998

Bumper

By: Ge

More
$11.95
Compare At:
$13.07
You Save:
$1.12

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
32767

Installation Instruction

By: Ge

More
$6.70
Compare At:
$7.37
You Save:
$0.67

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
32767

Mini Manual

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

32767

Use & Care Book

By: Ge

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
