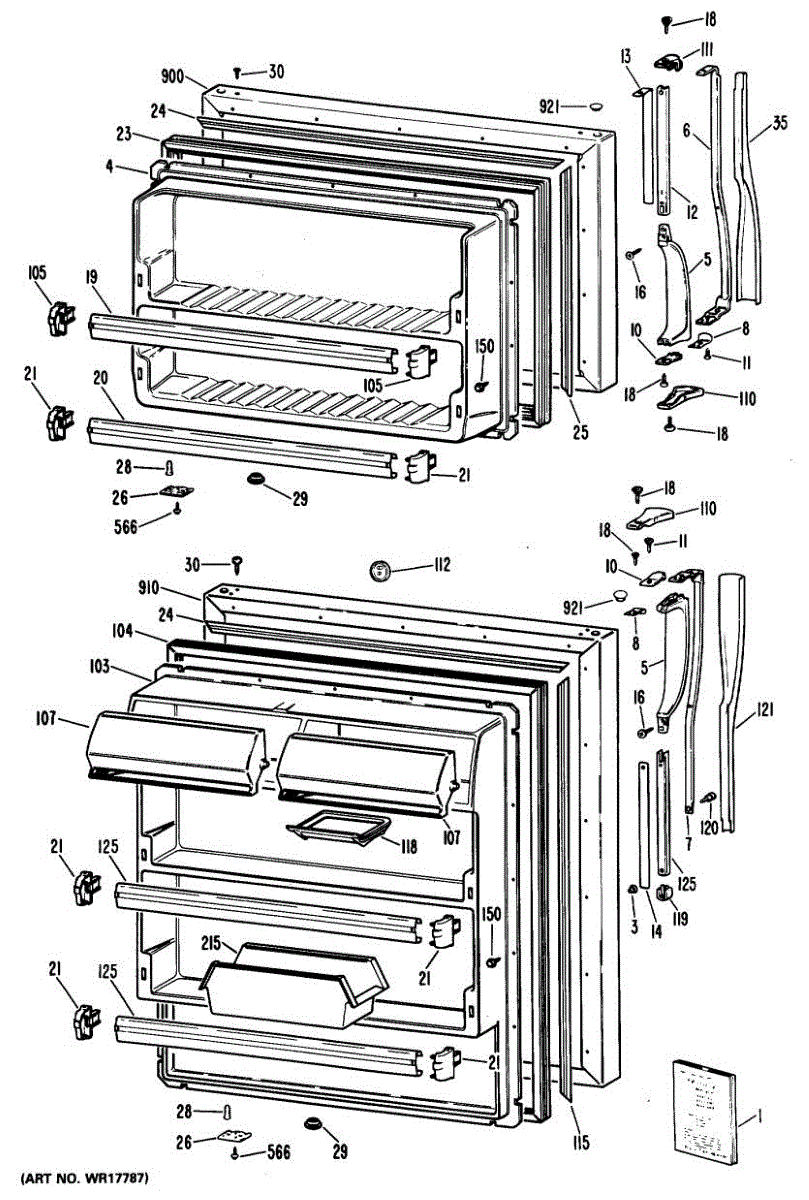

Parts for Ge CTX18KLRRWH: 01 - Section1 Parts

This is the installation instruction sheet and reference documentation for a refrigerator. It provides step-by-step guidance on proper setup, leveling, water line connections, and safety warnings. Replace this document if your original was lost or damaged and you need accurate installation details for your refrigerator.

Hardware fasteners for securing refrigerator door panels and components. Includes screws, nuts, and washers for assembly. Replace missing or stripped pieces.

Replacement mounting screws for refrigerator assembly and component installation. Package of 12 screws for securing shelves, panels, or brackets. Needed when original screws are stripped, lost, or damaged during repair.

Assembly screw kit for refrigerators. Secures handles, shelf tracks, door hinges, and interior panels. Replace missing, stripped, or lost screws.

These end caps are used to support the retainer bar to the refrigerator door. Works for both left and right hand. Color: White. Measures about 2-1/2 inches high by 3 inches deep.

Seals your freezer door to prevent warm air entry and cold air loss. Replace when cracked, torn, or no longer sealing properly. Verify fit with your model.

This push-button plug insulates and seals a control panel push-button, helping keep the button stable and protecting the switch from moisture and debris. Fits where a small plastic button bushing or insulator is needed on the control panel. What it does:

• Provides an insulating bushing for a control panel push-button or switch
• Helps hold the button aligned and reduces wobble or uneven operation
• Shields the switch contacts from moisture and dirt that can cause intermittent operation
• Commonly replaced when the button is loose, damaged, cracked, or missing

• Disconnect power to the appliance before removing the control panel or working near electrical components
• Remove the control panel or trim; use appropriate tools to avoid cracking surrounding plastic
• Install the plug gently; do not force or use excessive heat

Hardware kit with 12 mounting screws for refrigerator assembly and component installation. Replace missing, stripped, or corroded screws during repairs.

Seals the fresh food door to prevent cold air loss and maintain temperature. Replace if cracked, torn, or not sealing properly. Verify fit by model.

Endcap secures and supports refrigerator shelf bars. Replace if cracked, broken, or missing. Installs at shelf bar ends to hold shelves in place.

This chrome end cap covers and finishes the end of your refrigerator door handle where it meets the door surface. It replaces missing or damaged caps that leave an unsightly gap or rough edge. If your door handle looks incomplete or has sharp edges where the cap should be, this replacement will restore the finished appearance.

The handle cap trim covers the ends of the refrigerator door handle, providing a finished appearance and protecting the handle mounting points. Replace when caps are cracked, discolored, missing, or no longer fit securely on the handle ends.

This part has been discontinued and is no longer available.

May be listed as # 122 in the diagram.

Refrigerator plug button that installs in the cabinet or liner. Replace this insert if the original is cracked, broken, missing, or worn from use.

Replacement screw for refrigerators. Secures handles, panels, and internal components. Order if yours is missing, stripped, or lost during repairs.

Panel mounting screw for refrigerators. Secures access panels, trim pieces, and internal brackets. Replace lost, stripped, or corroded fasteners.

Reversible door plug fills unused mounting holes when switching refrigerator door swing direction. Replaces broken or missing plugs for a finished look.
