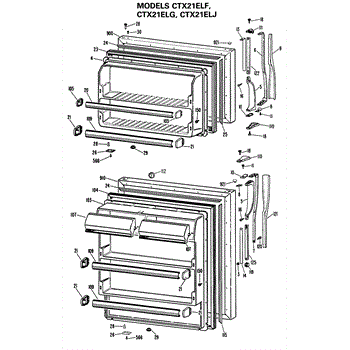

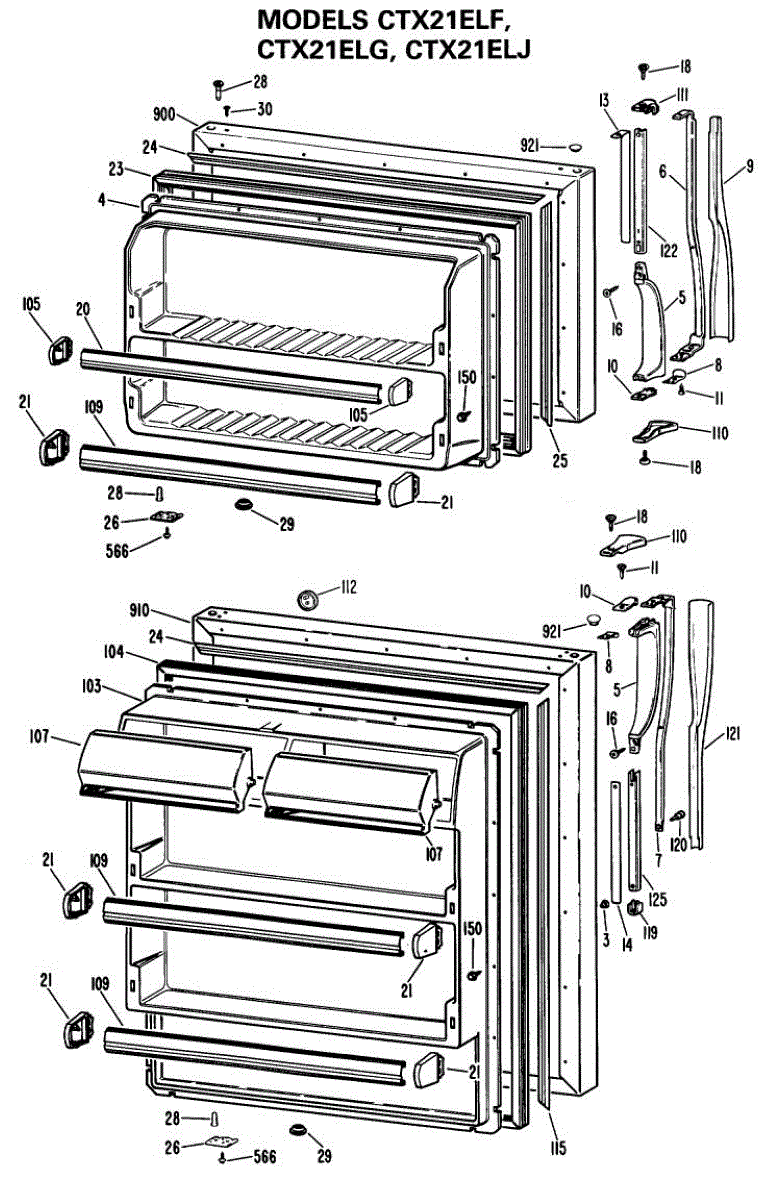

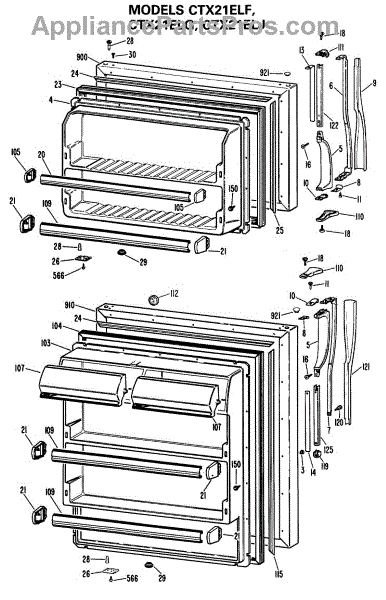

Parts for Ge CTX21ELGRWH: 01 - Section1 Parts

This is the "Attention installer" warning label used to remind homeowners about important installation steps and safety checks before operating the appliance. It helps reduce installation errors and promotes safe, compliant setup. What it does:

• Identifies critical installation or safety instructions that must be followed
• Alerts installers to components, connections, or procedures that need attention
• Helps prevent improper setup that can lead to performance issues or safety risks
• Serves as a visible reminder to confirm final checks before using the appliance

• Clean and dry the application surface before attaching for best adhesion
• Peel and press the label firmly to remove air bubbles; avoid stretching the decal
• Place where it is clearly visible during installation but will not interfere with operation
• Remove old adhesive residue before applying the new label

The Screw Package is an OEM replacement part for GE refrigerators. It contains a pack of 12 identical screws for miscellaneous securing and assembly needs.

These screws play a supporting role, helping attach shelf tracks, cover panels, door hinges, and other interior parts. By maintaining components securely in place, they help ensure smooth operation and prevent rattling or other noises.

Symptoms of insufficiently secured parts include:

• Noises heard from loose shelves or door components
• Detaching handles, hinges, or panels
• Shelves shifting positions or becoming misaligned

Causes of needing replacement screws can include loss, stripping, or wear over time from repeated securement and removal of parts during cleaning or repairs.

This multipack of GE screws is perfect for minor refrigerator maintenance or to stock up on extras. They are also compatible with replacement hardware from Hotpoint, RCA, and certain Kenmore models.

These end caps are used to support the retainer bar to the refrigerator door. Works for both left and right hand. Color: White. Measures about 2-1/2 inches high by 3 inches deep.

The Freezer Door Gasket is an OEM part for GE refrigerators. This gasket forms a seal around the freezer door, keeping cold air inside and preventing warm air from entering, which helps to maintain the optimal temperature and efficiency of the freezer.

Causes of a bad freezer door gasket can include regular wear and tear, mold or mildew buildup, and physical damage from repeated opening and closing of the door.

Symptoms of a bad freezer door gasket include:

• Frost buildup inside the freezer
• The freezer running more frequently to maintain temperature
• Difficulty keeping the door closed or it not sealing properly
• Visible cracks, tears, or deformation in the gasket

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This push-button plug insulates and seals a control panel push-button, helping keep the button stable and protecting the switch from moisture and debris. Fits where a small plastic button bushing or insulator is needed on the control panel. What it does:

• Provides an insulating bushing for a control panel push-button or switch
• Helps hold the button aligned and reduces wobble or uneven operation
• Shields the switch contacts from moisture and dirt that can cause intermittent operation
• Commonly replaced when the button is loose, damaged, cracked, or missing

• Disconnect power to the appliance before removing the control panel or working near electrical components
• Remove the control panel or trim; use appropriate tools to avoid cracking surrounding plastic
• Install the plug gently; do not force or use excessive heat

The Fresh Food Door Gasket is an OEM part for GE refrigerators. It seals the perimeter of the refrigerator's fresh food door, maintaining the internal temperature by preventing warm air from entering and cold air from escaping. The gasket measures approximately 39-3/4 inches by 29-3/4 inches.

Over time, door gaskets can wear out or become damaged due to constant use, exposure to spills, or mishandling. A faulty gasket compromises the refrigerator's efficiency, leading to increased energy consumption and uneven cooling.

Symptoms of a bad fresh food door gasket include:

• The door not sealing properly
• Increased frost buildup inside the refrigerator
• Warmer than usual refrigerator temperatures
• Higher energy bills due to the refrigerator working harder to maintain cool temperatures

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

May be listed as # 122 in the diagram.

This screw secures panels and components on compatible GE appliances to restore proper fit and reduce vibration. Use it to replace a lost or stripped fastener and keep covers and brackets held firmly in place. What it does:

• Fastens access panels, trim pieces, or internal brackets to maintain proper alignment
• Stops rattling or vibration caused by missing or loose screws
• Restores secure mounting after repair or parts replacement
• Works where the appliance requires a short sheet-metal or machine screw for fastening

• Disconnect power to the appliance before removing panels or performing repairs.
• Use the correct screwdriver or bit to avoid stripping the head.
• Hand-start the screw to ensure proper threading; tighten until snug but avoid over-torquing.
