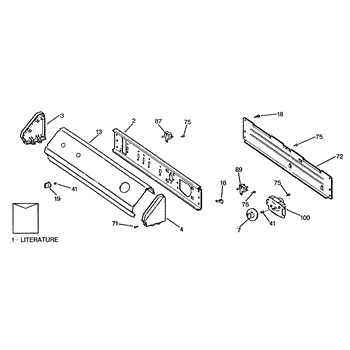

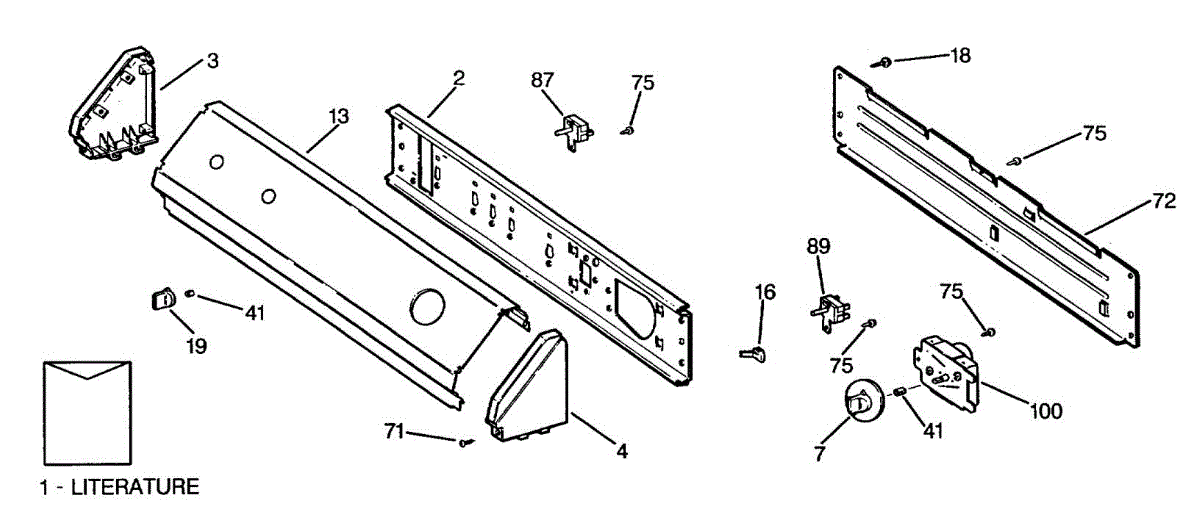

Parts for Ge DDG5180RALWW: 01 - Section1 Parts

This part has been discontinued and is no longer available.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rotary Start Switch is an OEM replacement part for GE dryers. It is silver and black in color, with a white D-shaped shaft. The rotary start switch is found inside the dryer control panel, and when actuated, it starts the dryer.

Causes of a bad start switch include prolonged use resulting in normal wear and tear, internal component failure, or accidental external damage.

Symptoms of a bad start switch are:

• The dryer failing to start or operate as selected
• Intermittent or inconsistent operation

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

Size: 8-32 t. Includes 12 screws.

This orifice meters gas flow to a single burner, restoring proper flame size and stable heating for gas ranges and ovens. Replacing a damaged or clogged orifice helps improve ignition and consistent burner performance. What it does:

• Controls the amount of gas delivered to the burner for correct flame height and heat output
• Helps resolve weak or low flames and uneven heating when the orifice is clogged or worn
• Supports reliable ignition by maintaining proper gas flow to the burner
• Works as the precise gas port that matches the cooktop/oven's burner assembly

• Turn off the appliance and shut off the gas supply before servicing
• Use appropriate tools to remove burner components; take care not to damage threads or fittings
• After installation, check all connections for leaks with a soap solution or approved leak detector

This gas valve regulates and safely delivers fuel to your dryer's burner. When operating correctly, it opens for ignition and closes when heat is satisfied, providing consistent, reliable heating for effective drying.

• Opens to allow gas into the burner when the ignition system calls for heat
• Closes to stop gas flow during cycling or if ignition fails
• Possible symptoms: dryer runs but no heat; igniter glows yet no flame; intermittent heat or long dry times
• Helps restore proper burner ignition and stable flame

• Disconnect power and shut off the gas supply before servicing
• Work in a well-ventilated area; check all connections for leaks with a non-corrosive leak-detection solution after installation
• Transfer any brackets, fittings, or orifices from the original valve as required; secure connections
• Confirm gas type (natural/LP) and regulator/orifice settings per the service manual before restoring service

This burner assembly is the combustion head for GE gas dryers. It mixes gas and air and directs a stable flame into the heater housing, restoring consistent heat when the original burner is corroded, warped, or clogged.

• Directs the gas flame into the heat chamber for proper drying temperatures
• Works with the igniter, flame sensor, and gas valve to produce heat
• Typical failure symptoms: no heat or intermittent heat, long dry times, burner lights then goes out, unstable/yellow flame
• Physical issues can include rust, warping, or blocked burner ports

• Disconnect power and shut off the gas supply; allow the dryer to cool completely
• Note position of the igniter and flame sensor relative to the burner port; realign during reassembly
• Transfer any reusable fittings from the original burner as needed and verify orifice/fuel type match your installation
• After reconnecting gas, perform a leak check with a non-corrosive soapy water solution before restoring power

If the mounting clip is burnt order WE1X941.

The Dual Coil is an OEM part for GE dryers. This is often referred to as the “M” coil. If you need to replace both the main coil and dual coil, it is recommended to order the kit 279834, which includes both coils for a comprehensive replacement.

Causes of a faulty dual coil can include wear and tear over time, electrical component failure, or damage due to overheating or excessive usage. These factors can result in insufficient heat production, inconsistent drying, or no heat at all.

Symptoms of a bad dual coil may include:

• Insufficient heat or no heat during the drying cycle
• Inconsistent drying results
• Extended drying times

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Specs: 8-32 ca hxw 1/2

The Main Coil is an OEM part for GE dryers. It is a crucial component of the gas valve assembly, responsible for opening the gas valve to allow gas flow to the burner, enabling the dryer to produce heat.

Causes of a bad main coil can include electrical faults such as short circuits or open circuits within the coil, wear and tear from prolonged use, or damage due to overheating. Over time, the coil's ability to control the gas flow can diminish, affecting the dryer's performance.

Symptoms of a bad main coil include:

• The dryer not heating up
• Intermittent heating during a drying cycle
• The dryer taking longer than usual to dry clothes
• A clicking sound without the ignition of the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12
