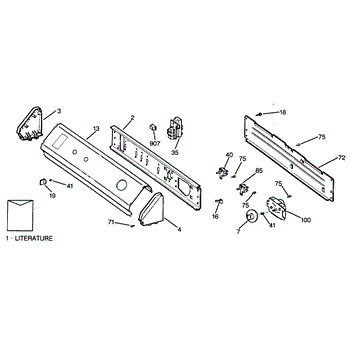

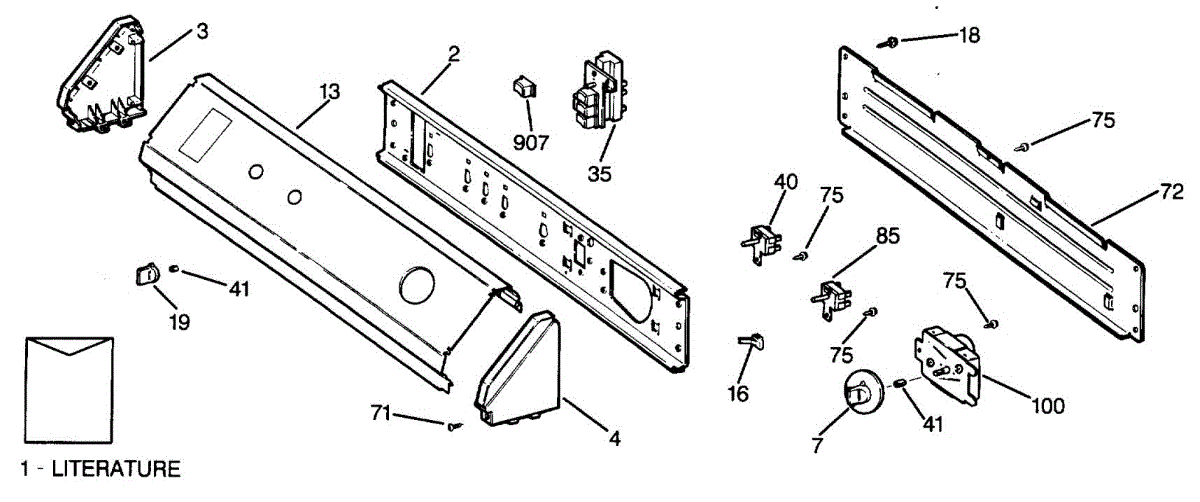

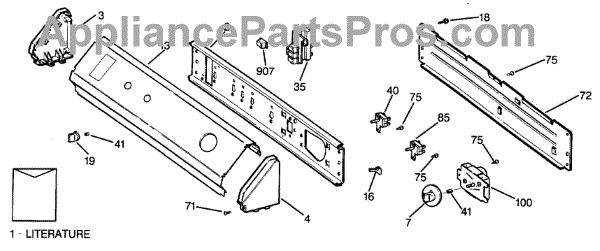

Parts for Ge DDG7986RAL: 01 - Section1 Parts

This PM sheet mini is a printed service checklist that summarizes routine preventive-maintenance tasks and inspection points for field service use. It helps technicians follow OEM-recommended checks to keep equipment running reliably. What it does:

• Lists routine inspection steps and common maintenance tasks for quick reference
• Highlights key components to check during scheduled service
• Provides a concise checklist to document completed maintenance actions
• Useful for troubleshooting by confirming service history and inspected items

• One printed PM sheet mini

• This is a reference document — no tools required for use
• Keep the sheet dry and store with other service literature to preserve legibility
• Follow all OEM safety and lockout/tagout procedures before inspecting equipment
• Use alongside the full service manual or IPL for detailed procedures

Color: black. Measures about 3 inches in diameter.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Black. 8-18 AB HXW 3/8

This electromechanical timer assembly controls cycle timing for compatible GE ranges and ovens, restoring accurate cook cycles and timer functions. It replaces a worn or non-advancing control to help your appliance complete timed operations reliably. What it does:

• Advances and times cooking cycles so bake, broil and self-clean operations run to completion
• Restores timer and manual cycle control when the original timer stops advancing
• Helps resolve symptoms like no timer display, oven cycles that won't start or stop on schedule, or intermittent timing failures
• Works as the user-accessible timing control for front-panel settings

• Disconnect power to the appliance before beginning service to avoid shock hazard
• Access may require removing the range/oven control panel or console; keep fasteners and trim for reassembly
• Handle connectors carefully and match wiring/location during reinstallation

Size: 8-32 t. Includes 12 screws.

This push button is the user-facing control button that completes a control circuit when pressed, restoring responsiveness to a worn or broken selector interface. It provides a direct, replaceable way to fix unresponsive or stuck control input. What it does

• Acts as the external control button that engages the appliance's internal switch when pressed
• Restores tactile feedback and reliable control input if the original button is cracked, loose, or missing
• Common symptom fix: buttons that stick, don't depress fully, or fail to activate functions
• Works with the matched internal switch assembly to ensure consistent operation

• Disconnect power before any service
• Remove the control panel or bezel as needed to access the button; avoid prying on surrounding trim
• Replace the button by aligning and snapping it into the button housing; do not force or bend retaining tabs
• If the button does not restore function, inspect the underlying switch/mechanism for damage before ordering additional parts
