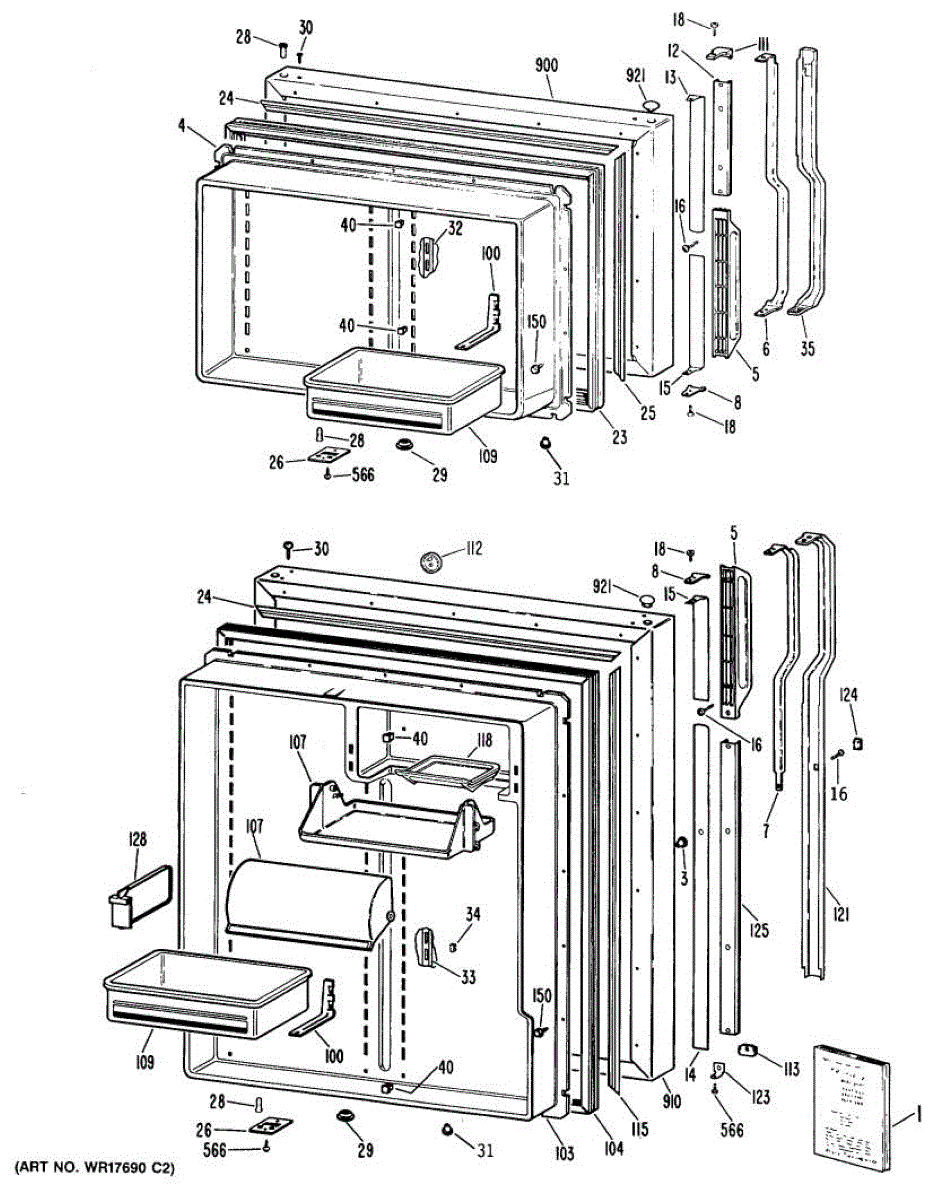

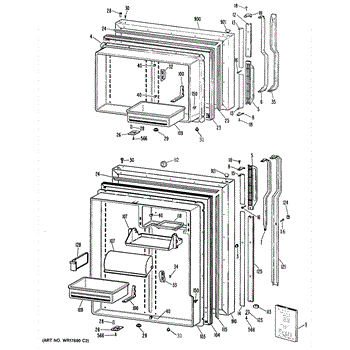

Parts for Ge TBCW19ZPJRWH: 01 - Section1 Parts

The Gasket for the freezer is an OEM part for GE refrigerators. It creates a seal around the freezer door, preventing warm air from entering and cold air from escaping. This seal is crucial for maintaining the correct internal temperature, ensuring the freezer operates efficiently and food stays properly frozen. The gasket measures 19 1/2 inches wide by 28 inches tall.

Causes of a bad gasket can include wear and tear over time, exposure to extreme temperatures, or damage from frequent opening and closing of the freezer door. Accumulated dirt and grime can also affect the gasket's sealing ability.

Symptoms of a bad gasket include:

• Frost buildup inside the freezer
• The freezer running more frequently or continuously
• Higher than normal energy bills
• Warm spots inside the freezer
• The door not closing properly or a visible gap between the door and the frame

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This push-button plug insulates and seals a control panel push-button, helping keep the button stable and protecting the switch from moisture and debris. Fits where a small plastic button bushing or insulator is needed on the control panel. What it does:

• Provides an insulating bushing for a control panel push-button or switch
• Helps hold the button aligned and reduces wobble or uneven operation
• Shields the switch contacts from moisture and dirt that can cause intermittent operation
• Commonly replaced when the button is loose, damaged, cracked, or missing

• Disconnect power to the appliance before removing the control panel or working near electrical components
• Remove the control panel or trim; use appropriate tools to avoid cracking surrounding plastic
• Install the plug gently; do not force or use excessive heat

Includes 12 screws. Size: 8-18 ab.

The Gasket, FF is an OEM part for GE refrigerators. This gasket is designed to seal the fresh food door and prevent the escape of cold air and the entrance of warm air, the gasket plays a crucial role in the refrigerator's energy efficiency and in keeping food fresh for longer periods.

Causes of damage to the gasket can include normal wear and tear over time, frequent opening and closing of the refrigerator door, exposure to food acids and liquids that can degrade the rubber, and improper cleaning methods that may damage the gasket's integrity.

Symptoms of a bad Fresh Food Compartment Gasket include:

• Visible signs of wear, cracks, or tears in the gasket
• Difficulty maintaining the desired temperature in the fresh food compartment
• Condensation or frost buildup around the edge of the door
• The refrigerator running more frequently or for longer periods

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This trim cap is a small plastic end cap that restores a clean finished edge on appliance trim and handles. It improves appearance and helps cover exposed fasteners or damaged edges for a neater look. What it does:

• Covers and protects exposed trim edges and screw openings to finish the appearance
• Helps prevent dirt and moisture from entering gaps behind trim pieces
• Replaces cracked, chipped, or missing end caps that make trim look worn
• Snaps into place on compatible trim or handle ends for a secure fit

• Disconnect power to the appliance before attempting any repairs
• Usually pushes or snaps into place; a flat tool may help to remove the old cap
• Inspect mating trim for damage before reinstallation; replace damaged trim if needed

Color: white. Measures about 1/2 an inch wide by 2/3 of an inch high.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Screw is an OEM replacement part for GE refrigerators. Countless screws are used throughout the refrigerator to securely hold parts in place.

Symptoms of a bad or missing screw can include:

• Rattling or vibration noises coming from inside the appliance
• Doors or other parts that are no longer properly aligned
• Increased frost or cold air leaks due to compromised seals

Causes may include normal wear and tear over time, accidental damage or loss of a screw during repairs, or improper assembly leaving crucial screws omitted.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.
