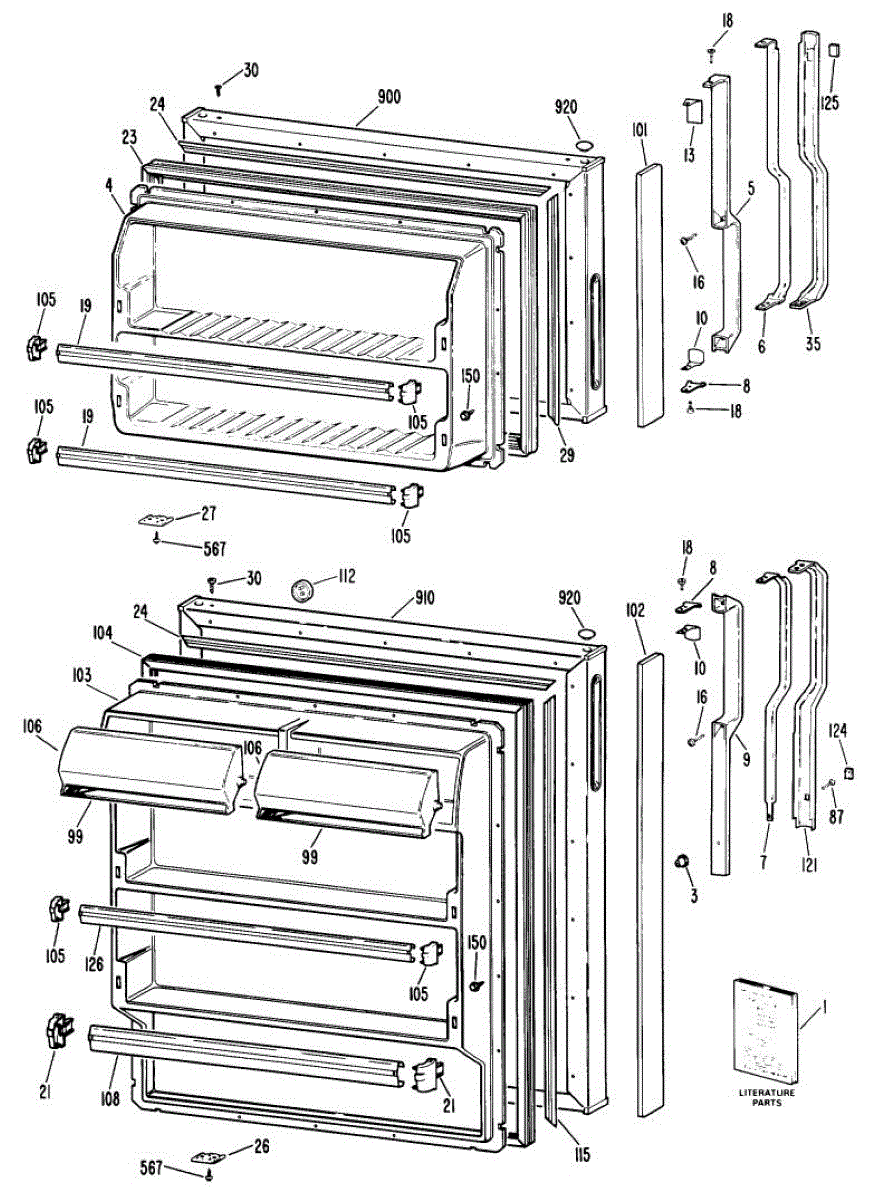

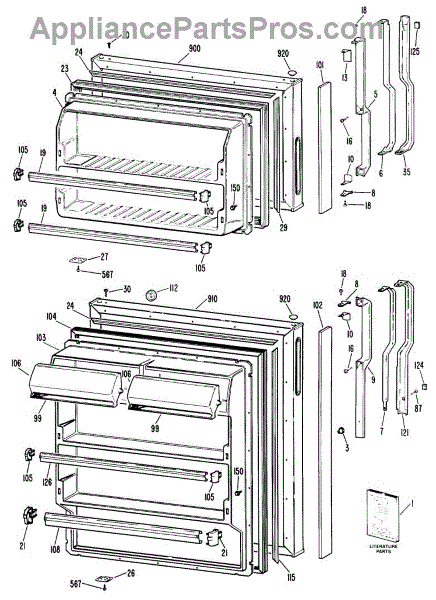

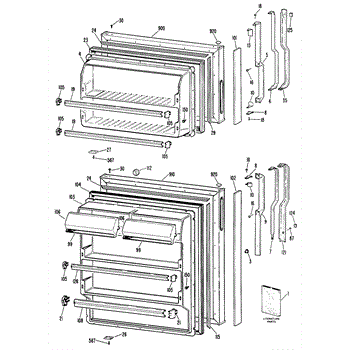

Parts for Ge TBX16AMERWH: 01 - Section1 Parts

The Screw Package is an OEM replacement part for GE refrigerators. It contains a pack of 12 identical screws for miscellaneous securing and assembly needs.

These screws play a supporting role, helping attach shelf tracks, cover panels, door hinges, and other interior parts. By maintaining components securely in place, they help ensure smooth operation and prevent rattling or other noises.

Symptoms of insufficiently secured parts include:

• Noises heard from loose shelves or door components
• Detaching handles, hinges, or panels
• Shelves shifting positions or becoming misaligned

Causes of needing replacement screws can include loss, stripping, or wear over time from repeated securement and removal of parts during cleaning or repairs.

This multipack of GE screws is perfect for minor refrigerator maintenance or to stock up on extras. They are also compatible with replacement hardware from Hotpoint, RCA, and certain Kenmore models.

The Door Shelf Bar is an OEM replacement part for GE refrigerators. It provides storage organization on the refrigerator door. This convenient accessory bar creates compartments for smaller items like condiments, sauces, and produce.

Causes of a bad shelf bar may include slipping out of position due to weak retention clips or plastic warping over multiple years of use. Normal wear and cleaning chemicals can also degrade shelf gripping performance.

Symptoms of a bad Door Shelf Bar include:

• Difficulty adjusting or unstable shelving configurations
• Items falling through weak bar retention clips
• Cracked or warped plastic compromising strength and flexibility

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE End Cap is an OEM replacement part designed for compatibility with various GE refrigerator models. This end cap supports your door shelf bars allowing your items to stay firmly in place. It is white in color and 2.5 inches high and 3 inches deep. This end cap is used for both left and right sides for both freezer and fridge doors.

Symptoms that may indicate the need to replace the end cap include:

• Cracks, chips, or visible damage to the existing end cap
• The end cap becoming loose or detached from the refrigerator cabinet

Causes of needing a new end cap can include physical impact or mishandling during moving or cleaning, exposure to extreme temperatures, or general wear and tear over an extended period of use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Freezer Door Gasket is an OEM replacement part for GE refrigerators. As the main door gasket, it provides an airtight seal between the refrigerator door and body. This prevents cool air from leaking out while keeping external warmth and odors from seeping in. This gasket is dark gray or black in color.

Causes can be normal wear and tear over the lifespan of continuous use, accidental tears or punctures from sharp objects, or premature breakdown if exposed to excessive moisture.

Symptoms of a bad gasket door include:

• Cool air drafts felt around the perimeter when the door is closed
• Frost or condensation building up inside the refrigerator compartment
• Higher energy bills indicating inefficient insulation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws. Size: 8-18 ab.

The End Cap is an OEM replacement part for GE refrigerators. It is a small but essential component that serves to cover and protect the ends of various refrigerator parts, such as shelves or door bins.

Causes of a need to replace the end cap can include physical damage, such as cracks, chips, or breaks, as well as discoloration or fading over time due to exposure to moisture or cleaning products.

Symptoms of a faulty end cap:

• Cracks or breaks in the end cap material
• End cap becoming loose or detached from the shelf or bin
• Discoloration or fading, affecting the overall aesthetic appeal of the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Dairy Door is an OEM part for GE refrigerators. This door is designed to fit the dairy compartment, usually located on the refrigerator door, providing a dedicated storage space for butter, cheese, and other dairy products. The dairy door helps to keep these items separate from the main compartment, often slightly warmer to prevent butter from hardening too much, while still keeping cheese and other dairy products fresh.

Causes of damage to the dairy door can range from normal wear and tear to accidental impacts from loading groceries or containers pressing against it when the refrigerator door is closed.

Symptoms of a bad Dairy Door include:

• Cracks or breaks in the door
• Difficulty closing the door or it not staying closed
• Discoloration or damage

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: white. Measures about 1/2 an inch wide by 2/3 of an inch high.

The Screw is an OEM replacement part for GE refrigerators. Countless screws are used throughout the refrigerator to securely hold parts in place.

Symptoms of a bad or missing screw can include:

• Rattling or vibration noises coming from inside the appliance
• Doors or other parts that are no longer properly aligned
• Increased frost or cold air leaks due to compromised seals

Causes may include normal wear and tear over time, accidental damage or loss of a screw during repairs, or improper assembly leaving crucial screws omitted.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

This plug button is a small snap-in cap used on refrigerators to cover exposed holes on door handles, liners, or trim. It restores a clean, finished look while helping keep dust and moisture out of the cabinet.

• Snaps into a screw or access hole on a handle, liner, or trim panel
• Covers fasteners and gaps for a clean, finished appearance
• Helps block dirt and moisture from open holes
• Typical symptoms: missing cap, broken or loose plug, visible screw hole or cosmetic gap

• Unplug the appliance before servicing and use caution around sharp edges
• Align the plug with the hole and press straight in by hand until fully seated and flush
• For handle screw holes, tighten fasteners first, then install the cap
• Avoid using metal tools on finished surfaces to prevent scratches
