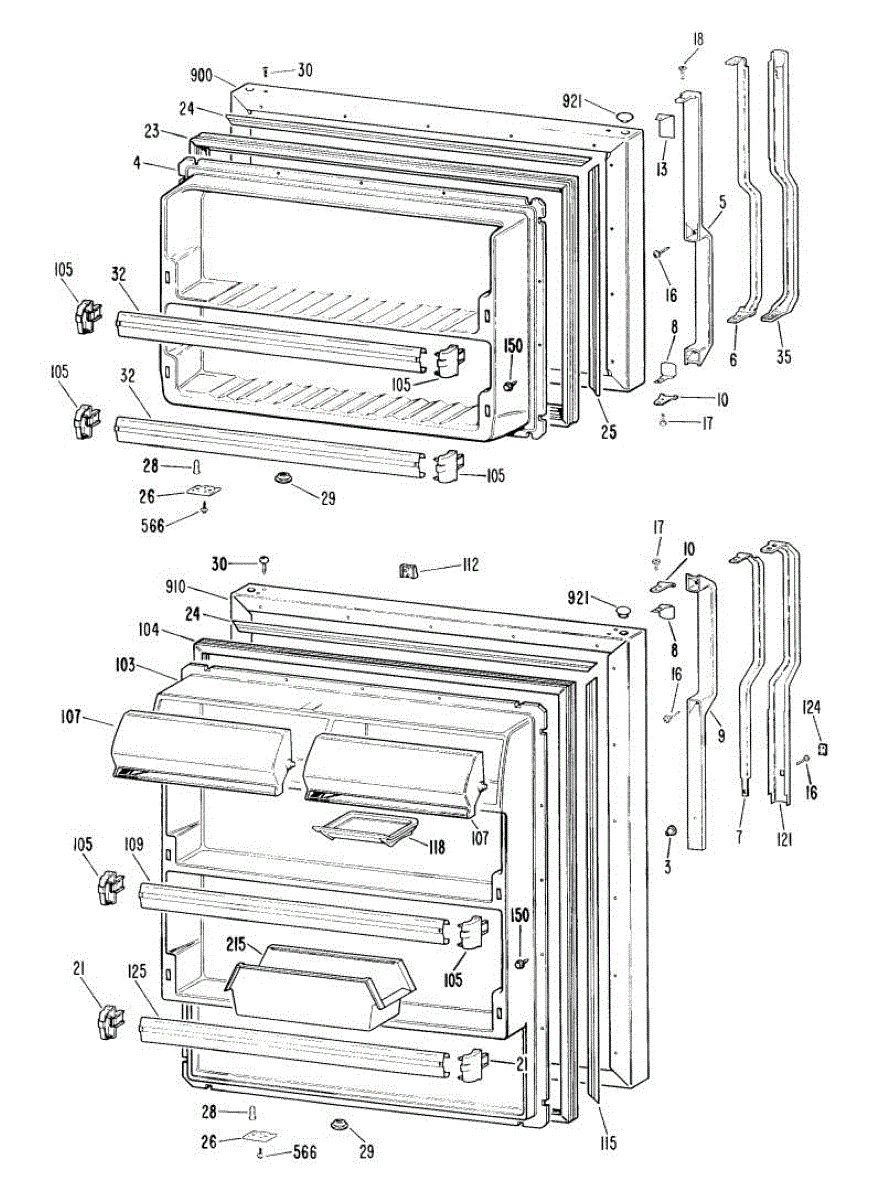

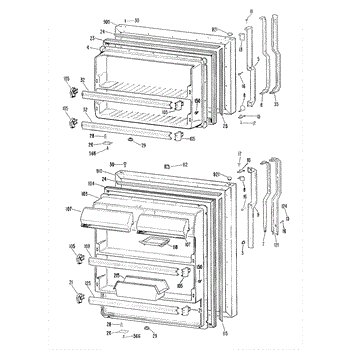

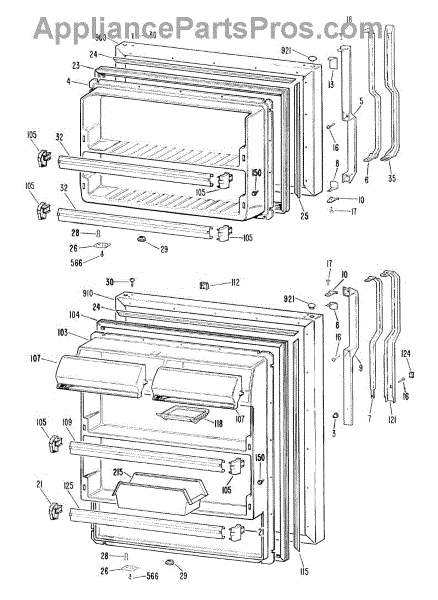

Parts for Ge TBX18AKEL: 01 - Section1 Parts

This is the installation instruction sheet and reference documentation for a refrigerator. It provides step-by-step guidance on proper setup, leveling, water line connections, and safety warnings. Replace this document if your original was lost or damaged and you need accurate installation details for your refrigerator.

Hardware fasteners for securing refrigerator door panels and components. Includes screws, nuts, and washers for assembly. Replace missing or stripped pieces.

Black mounting screw for refrigerator interior or component assembly. Replaces lost, stripped, or damaged screws during repairs or part installation.

White plastic end cap for refrigerator door shelf bars. Snaps onto bar ends to hold shelves securely in place. Replace cracked, broken, or missing caps.

Hardware kit with 12 mounting screws for refrigerator assembly and component installation. Replace missing, stripped, or corroded screws during repairs.

Includes 12 screws. Size: 8-18 ab.

Covers and secures the ends of refrigerator door shelves and bins. Replace if cracked, broken, or missing to restore a finished look and prevent items from sliding off.

May have to be cut to fit shorter applications.

Size: 8-32 t. Includes 12 screws.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Refrigerator not cooling or freezer has frost buildup? This defrost thermostat controls defrost cycles. Common DIY fix, typically takes 1 hour.

Refrigerator not cooling or ice building up on evaporator coils? The defrost timer controls the defrost cycle. DIY-friendly, installs in 5 minutes.

This condenser clip secures the refrigerator condenser coil to the cabinet, helping keep the coil stable and properly spaced for efficient cooling. It's a small but important mount/retainer for condenser assemblies. What it does

• Holds condenser coil or condenser assembly in place to prevent vibration and movement
• Maintains correct coil spacing for proper airflow and heat transfer
• Helps reduce rattling or knocking noises caused by loose condenser components
• Prevents coil damage from contact with cabinet or other components

• Inspect surrounding sheet metal and wiring before installation; replace if damaged
• Install with the correct fastener or tab engagement; do not force or bend the clip beyond its design
• Disconnect power to the appliance before accessing condenser area to avoid electrical or sharp-edge hazards
• Replace all affected retainers for stable mounting

Ice maker not filling or water dispenser not working? This refrigerator water inlet valve controls water flow to both. DIY install in 10 minutes.

Secures refrigerator wiring to prevent chafing and vibration noise. Replace when damaged or missing to keep harnesses organized. Confirm fit by model.

Plastic tubing that routes water through your refrigerator's system. Replace if cracked, brittle, kinked, or leaking to restore proper flow and prevent damage.

Secures water tubing or wiring to your refrigerator cabinet. Replace if missing or damaged to prevent vibration, rubbing, or leaks. Confirm fit.

Ice maker not producing ice or stopped working? This ice maker kit restores ice production. Includes full assembly for harvesting and ejecting ice.

Reversible door plug fills unused mounting holes when switching refrigerator door swing direction. Replaces broken or missing plugs for a finished look.
