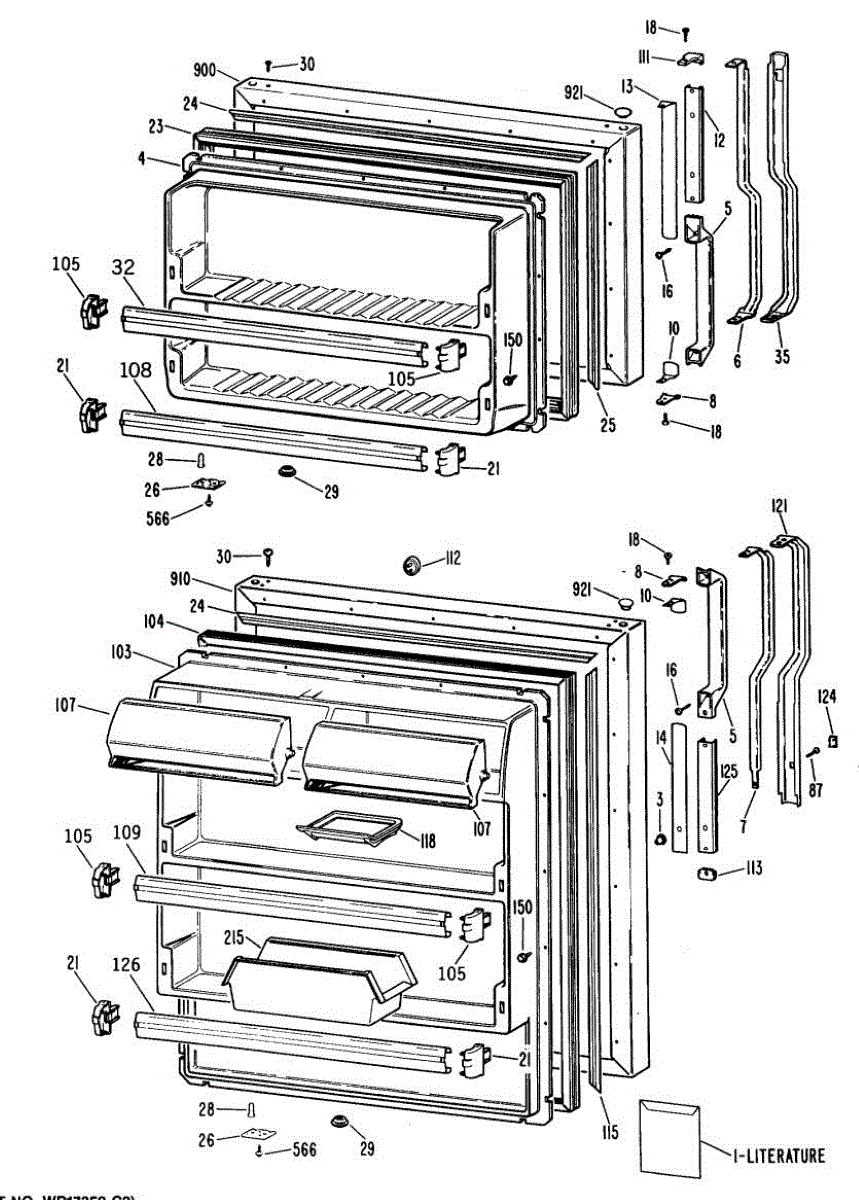

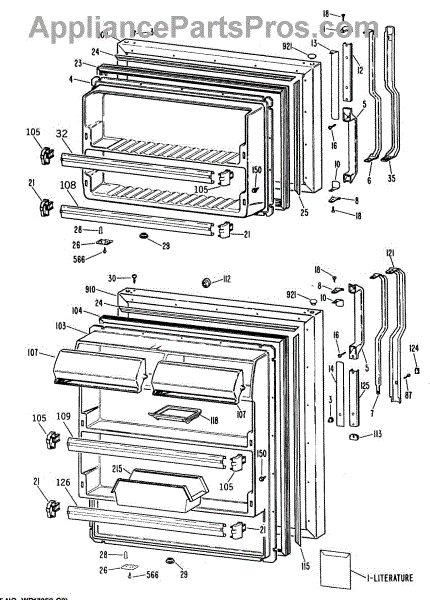

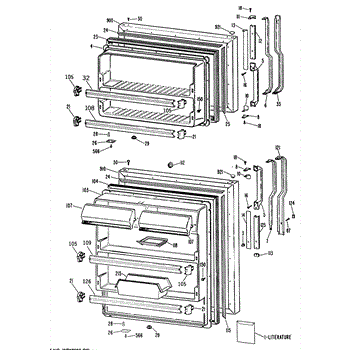

Parts for Ge TBX21WPJRAD: 01 - Section1 Parts

This is the installation instruction sheet and reference documentation for a refrigerator. It provides step-by-step guidance on proper setup, leveling, water line connections, and safety warnings. Replace this document if your original was lost or damaged and you need accurate installation details for your refrigerator.

Hardware fasteners for securing refrigerator door panels and components. Includes screws, nuts, and washers for assembly. Replace missing or stripped pieces.

Reinforces and stabilizes your refrigerator door handle assembly. Replace this stiffener if it's cracked, broken, or missing to restore proper support.

Assembly screw kit for refrigerators. Secures handles, shelf tracks, door hinges, and interior panels. Replace missing, stripped, or lost screws.

White plastic end cap for refrigerator door shelf bars. Snaps onto bar ends to hold shelves securely in place. Replace cracked, broken, or missing caps.

Seals freezer door to keep cold air in and warm air out. Replace if torn, cracked, or not sealing properly. Verify fit with your model number.

Hardware kit with 12 mounting screws for refrigerator assembly and component installation. Replace missing, stripped, or corroded screws during repairs.

Includes 12 screws. Size: 8-18 ab.

Seals your refrigerator's fresh food door to maintain temperature and prevent air leaks. Replace if you notice condensation, mold, or warm spots inside.

Covers and secures the ends of refrigerator door shelves and bins. Replace if cracked, broken, or missing to restore a finished look and prevent items from sliding off.

Replace your refrigerator's door shelf rail if it's cracked, broken, or missing. This rail installs on the door to securely hold shelves in place.

Plastic end cap that covers exposed trim edges and screw openings on refrigerator handles and trim. Replace if cracked, broken, or missing for a finished look.

This is a snap-in plug button used to replace a missing or damaged control panel or trim cap on compatible GE appliances. It restores a finished look and helps keep the underlying fastener or opening covered. What it does:

• Covers and protects a small access hole or fastener opening on the appliance surface
• Snaps into place to hold trim panels or control overlays secure
• Replaces worn, cracked, or missing buttons that affect appearance or allow debris entry
• Common symptom: visible hole or loose/missing plug on control panel or exterior trim

• One plug button

• Snap-in installation; press firmly into the opening until fully seated
• No tools typically required; use a soft cloth to protect finish while pressing
• If the surrounding area is damaged or warped, part may not seat correctly
• Disconnect power to appliance before working near energized controls or panels

May have to be cut to fit shorter applications.

Refrigerator plug button that installs in the cabinet or liner. Replace this insert if the original is cracked, broken, missing, or worn from use.

Replacement screw for refrigerators. Secures handles, panels, and internal components. Order if yours is missing, stripped, or lost during repairs.

Outer door panel for top-mount refrigerators. Replaces cracked, dented, or discolored exterior panels. Restores the cosmetic appearance of your fridge door.
