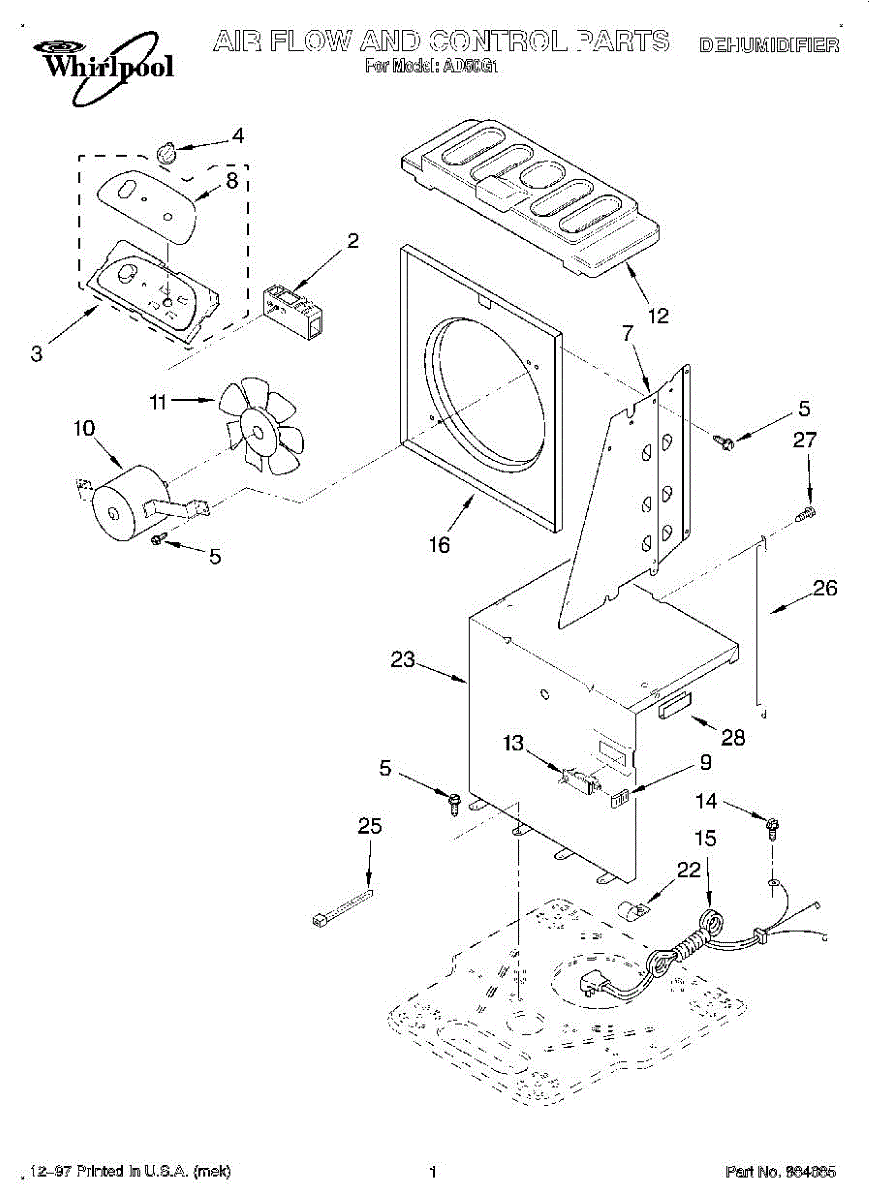

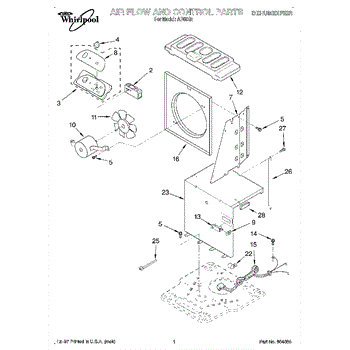

Parts for Whirlpool AD50G1: 01 - Section Parts

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This evaporator fan motor circulates cold air through the freezer/refrigerator compartment to help maintain even temperatures and proper frost control. Replaces a failed or noisy fan motor to restore normal cooling and airflow. What it does:

• Spins the evaporator fan blade to move cold air across the evaporator coil and through the cabinet
• Helps keep temperatures consistent between compartments for better food preservation
• A failing motor may cause no airflow, weak cooling, or louder-than-normal noise
• Supports proper defrost performance by ensuring circulated air reaches the coil

• One evaporator fan motor (single motor only)

• Disconnect power at the plug or breaker before beginning any work
• Handle the fan blade and motor shaft carefully to avoid bending blades or damaging the shaft
• Verify fan rotation and clearances after installation; ensure wiring connections are secure

This water level pressure switch senses tub water height and tells the washer control when to stop filling for correct load levels. Replaces a failed or intermittent pressure sensor to restore proper fill control and cycle operation. What it does

• Detects water level changes via air pressure from the drain/tub to signal the control board.
• Stops filling when the correct water level is reached to prevent overfill.
• Resolves symptoms like overfilling, underfilling, or washer that won't advance cycles when caused by a faulty switch.
• Works with the washer's control system—does not include hoses or wiring harness.

• One water level pressure switch (one complete switch assembly).

• Disconnect power and turn off the water supply before replacing the switch.
• Verify location and routing of the pressure hose; replace any cracked or collapsed hose that can cause false readings.
• Handle electrical connectors and the pressure port carefully—avoid pulling wires or forcing tabs.
• Test operation after installation by running a fill/drain cycle and observing fill level.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.
