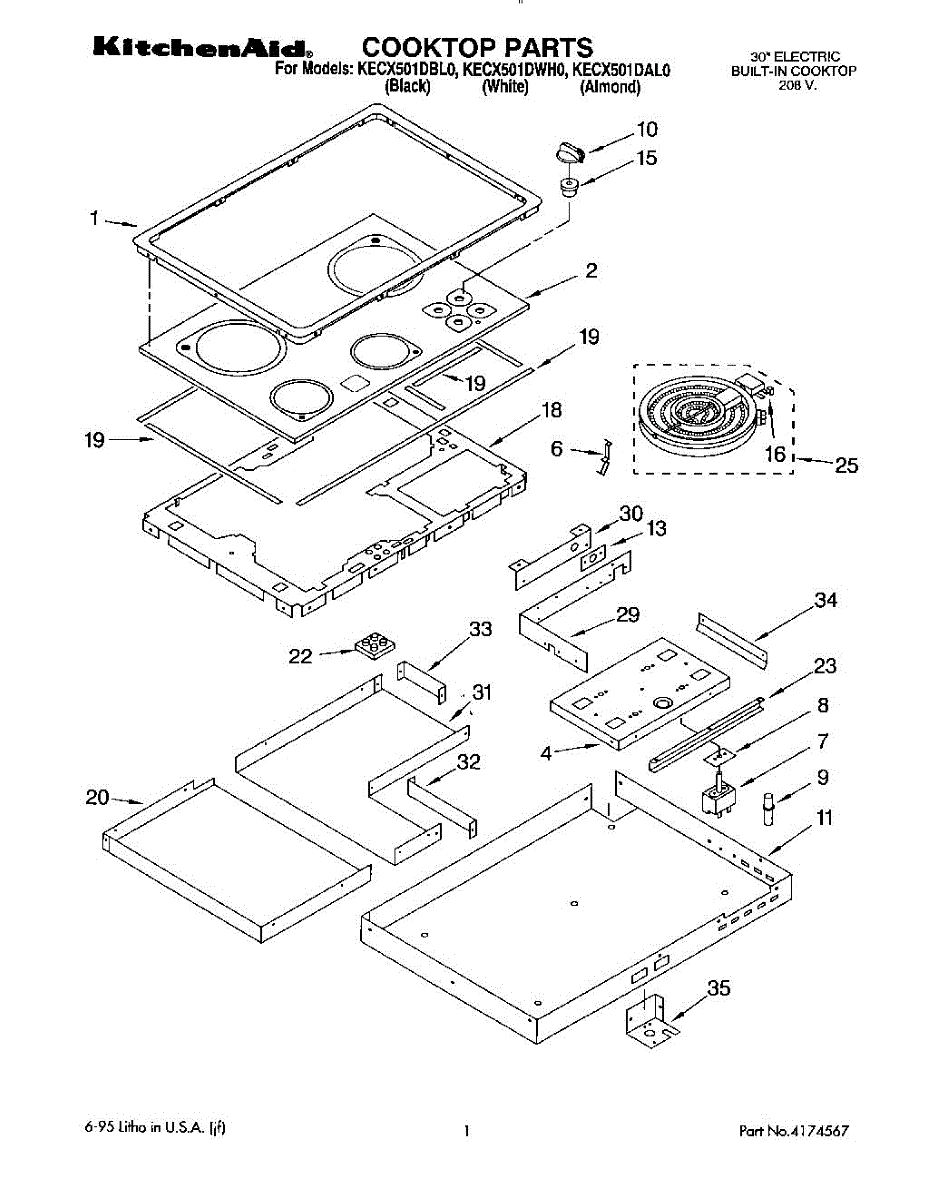

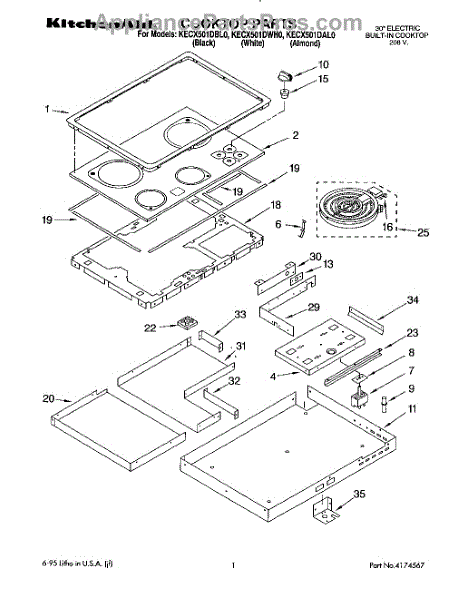

Parts for Kitchenaid KECX501DAL0: 01 - Section Parts

01 - Section
Electric Cooktop

Parts for Kitchenaid KECX501DAL0: 01 - Section Parts

Location on Diagram
Part Description
Price & Availability
1

Trim Ring, Cooktop (Almond)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1

Trim Ring, Cooktop (Black)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1

Trim Ring, Cooktop (White)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Cooktop, Glass (Black)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Cooktop, Glass (White)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Cooktop, Glass (Almond)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Bracket, Switch Mounting No Longer Available.

By: Whirlpool

This part has been discontinued and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6

Spring, Locator

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6
Product photo

Screw

By: Whirlpool

Size: 6-32 x 3/8 inch.

More
$5.95
Compare At:
$7.14
You Save:
$1.19

IN STOCK
Ships Today Guaranteed
Add to Cart
7

Switch, Inf.

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7

Switch, Infinite (Use W/2400W Left Front Burner)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7

Switch, Infinite (Use W/2400W Left Rear Burner)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7

Switch, Infinite (Use W/1200W Left Front Burner)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8
Product photo

Switch Bracket Mounting Seal

By: Whirlpool

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

  • Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
  • Helps keep the switch properly positioned for accurate door or control sensing
  • Can prevent intermittent or failed switch contacts caused by contamination or misalignment
  • Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs
What's included: One switch bracket mounting seal. Install notes:
  • Disconnect power to the appliance before starting any repair
  • Remove the door or panel per service instructions to access the switch bracket area
  • Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
  • Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

More
$32.45
Compare At:
$38.62
You Save:
$6.17

IN STOCK
Ships Today Guaranteed
Add to Cart
8
Product photo

Screw (Latch Knob)

By: Whirlpool

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

  • Attaches the latch knob securely to the latch mechanism/shaft
  • Helps maintain proper door latch engagement and knob control
  • Common fix for a loose, wobbly, or falling-off knob
  • Replaces a lost, corroded, or cross-threaded screw
What's included:
  • 1 latch knob screw
Install notes:
  • Disconnect power and allow the appliance to cool completely before servicing
  • Align the knob on the shaft and start the screw by hand to avoid cross-threading
  • Tighten with the correct screwdriver; do not overtighten to prevent damage
  • The latch engages and releases smoothly after installation

More
$4.95
Compare At:
$5.89
You Save:
$0.94

IN STOCK
Ships Today Guaranteed
Add to Cart
9

Lamp, Hot Surface Indicator

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10
Product photo

Control Knob (Almond)

By: Whirlpool

Color: Almond.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10
Product photo

Top Burner Knob (White)

By: Whirlpool

Color: White. Other colors: For black use WP9750372FF, for biscuit use WP9750372FC.

More
$13.95
Compare At:
$16.60
You Save:
$2.65

IN STOCK
Ships Today Guaranteed
Add to Cart
10
Product photo

Top Burner Knob

4.7 (6)
By: Whirlpool

Color: Black. Measures about 2 inches in diameter. Other colors: For white use WP9750372FW, for biscuit use WP9750372FC.

More
$23.95
Compare At:
$28.74
You Save:
$4.79

IN STOCK
Ships Today Guaranteed
Add to Cart
11

Box, Burner

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13

Grommet, Nomex

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15
Product photo

Seal, Switch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Switch, Limiter (Use W/4454438 Element)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Switch, Limiter Lr

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Switch, Limiter Rr

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Switch, Limiter Lf

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18

Plate, Backer

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19
Product photo

Seal, Cooktop (Small)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19
Product photo

Seal, Silicone (Large )

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20

Shield, Heat (Element)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22

Lamp, Hot Surface Indicator

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22
Product photo

Trim Ring, Cooktop (Screw, Black (14))

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23

Bracket, Stiffening

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25

Element, Surface (Includes No.16) (1200W Left Front)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25

Element, Surface (Includes No.16) (1400W Right Front)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25

Element, Surface (Includes No.16) (2100W Right Rear)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25

Element, Surface (Includes No.16) (2400W Left Rear)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

29

Shield, Heat

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

29

Screw

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

30

Bracket

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

31

Shield, Heat

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

32

Plate, Interior

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

32

Screw

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

33

Screw

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

33

Plate, End

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

34

Plate Louver

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

35

Cover, Conduit

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
