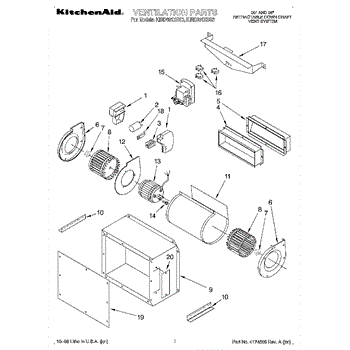

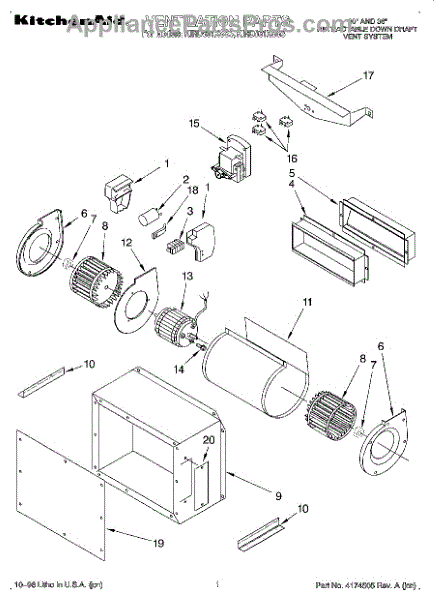

Parts for Kitchenaid KIRD861XSS3: 01 - Section Parts

This terminal is an electrical connector that provides a secure point for wiring connections, helping restore reliable power flow to the appliance. It replaces a worn or damaged connector to reduce arcing and intermittent operation. What it does:

• Provides a secure connection point for wiring to controls, motors, heaters or other components
• Restores reliable electrical contact when a terminal is corroded, loose or burned
• Helps stop intermittent power, arcing, or overheating caused by poor connections
• Maintains proper circuitry continuity for safe operation

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Take a photo or label wires before removing the old terminal to ensure correct reassembly
• Remove panels or covers as needed to access the terminal; replace with the same orientation and tighten connections securely
• Inspect adjacent wiring and terminals for damage; if heat or corrosion is present, replace affected parts

This blower box is the housing that positions and seals the dryer blower assembly to direct airflow through the appliance for efficient venting and heating. It helps maintain proper airflow and prevents leaks that reduce performance. What it does:

• Houses and supports the blower wheel and motor mounting points
• Channels warm air from the heat source into the drum and out the vent
• Helps maintain a sealed airflow path to prevent efficiency loss
• Symptoms: dryer takes longer to dry, reduced airflow, loud or unusual blower noise, or venting problems

• Disconnect power (and gas, if applicable) before starting work
• Remove front or rear access panels to reach the blower assembly per model-specific instructions
• Inspect and replace any damaged seals or fasteners during installation

This control switch restores a specific electrical function in your appliance, allowing the machine to respond to user inputs or internal signals for normal operation. It's a direct-replacement style part used where the original switch has failed. What it does:

• Opens or closes an electrical circuit to enable or disable a function (power, start, or mode selection)
• Commonly replaces worn, stuck, or non-responsive switches that prevent the appliance from starting or changing settings
• Helps eliminate intermittent operation caused by faulty contact points or internal switch failure
• Matches the original mounting and connector layout for a like-for-like replacement

• One replacement control switch as shown

• Turn power to the appliance OFF at the breaker or unplug before servicing
• Verify switch orientation and connector locations before disconnecting wiring; label wires if needed
• Use basic hand tools; avoid forcing terminals or mounting tabs to prevent damage
